The DSP10KQ 4-Channel Digital DSP Power Amplifier integrates high power, advanced DSP signal processing, and Ethernet control in a compact rack-mount design. Built for professional sound engineers and system integrators, this unit delivers outstanding flexibility, clean output, and reliable performance for live sound reinforcement, touring systems, and permanent installations.
• High Power Output (RMS):
• 4 × 1350W @ 8Ω
• 4 × 2200W @ 4Ω
• 4 × 2500W @ 2Ω
• Bridged: 2 × 4400W @ 8Ω; 2 × 5000W @ 4Ω
• Full DSP Processing (4 In / 4 Out):
Onboard crossover filters, Butterworth / Bessel / Linkwitz-Riley EQ options, channel delay, parametric EQ, and peak limiter protection.
• Ethernet & RS485 Control:
Network multiple units together for centralized monitoring and remote software management.
• High Fidelity Conversion:
24-bit A/D & D/A converters, 48 kHz sample rate, 48-bit fixed-point DSP engine, >110 dB SNR, distortion<0.01% across 20 Hz–20 kHz.
• Flexible Setup & Presets:
Independent EQ/delay per output channel, 0–115 ms alignment delay, EQ gain −24 dB to +12 dB, 20 factory presets plus user-defined storage.
• Professional Build Quality:

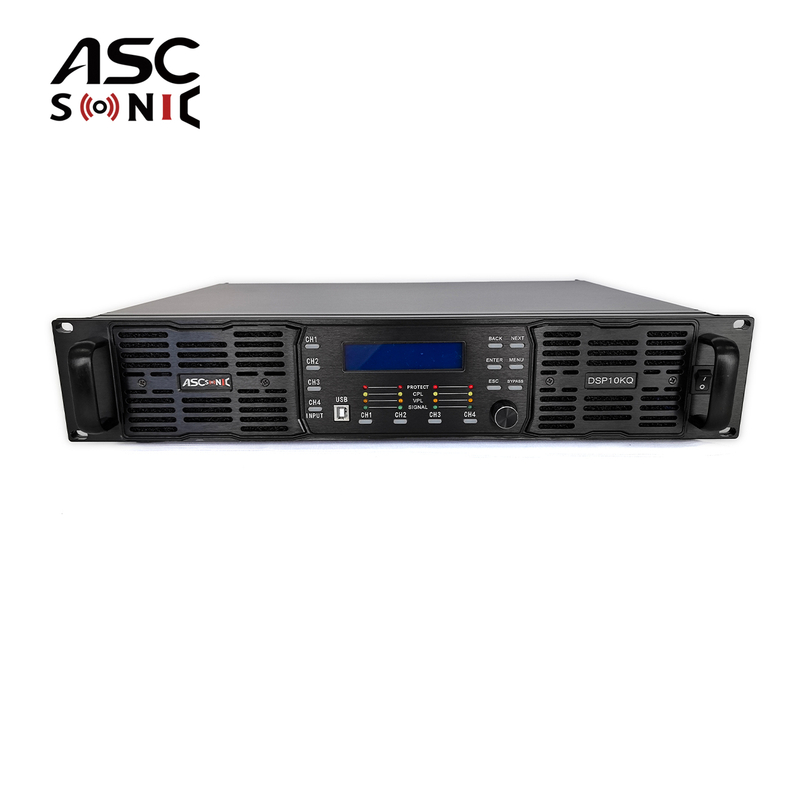

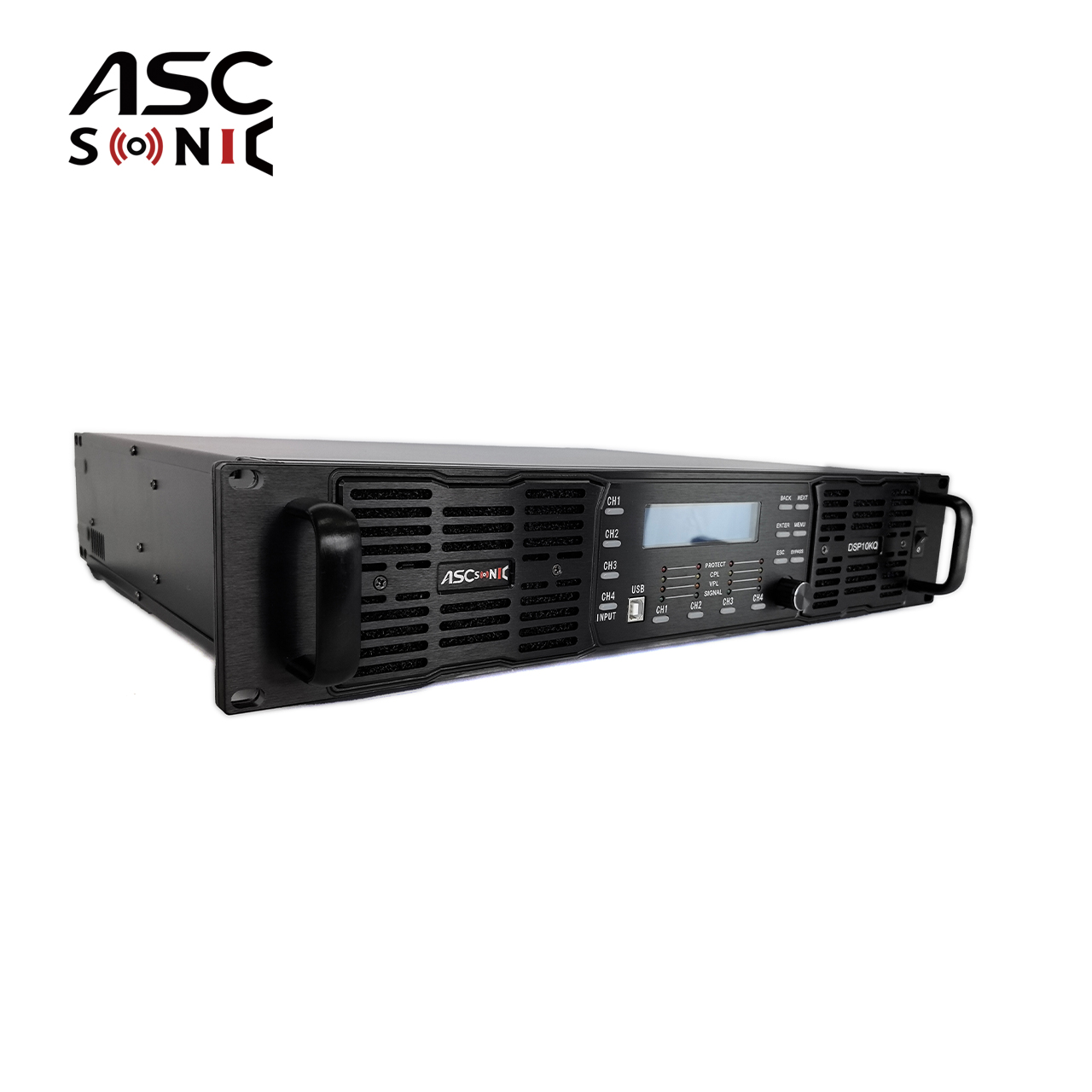

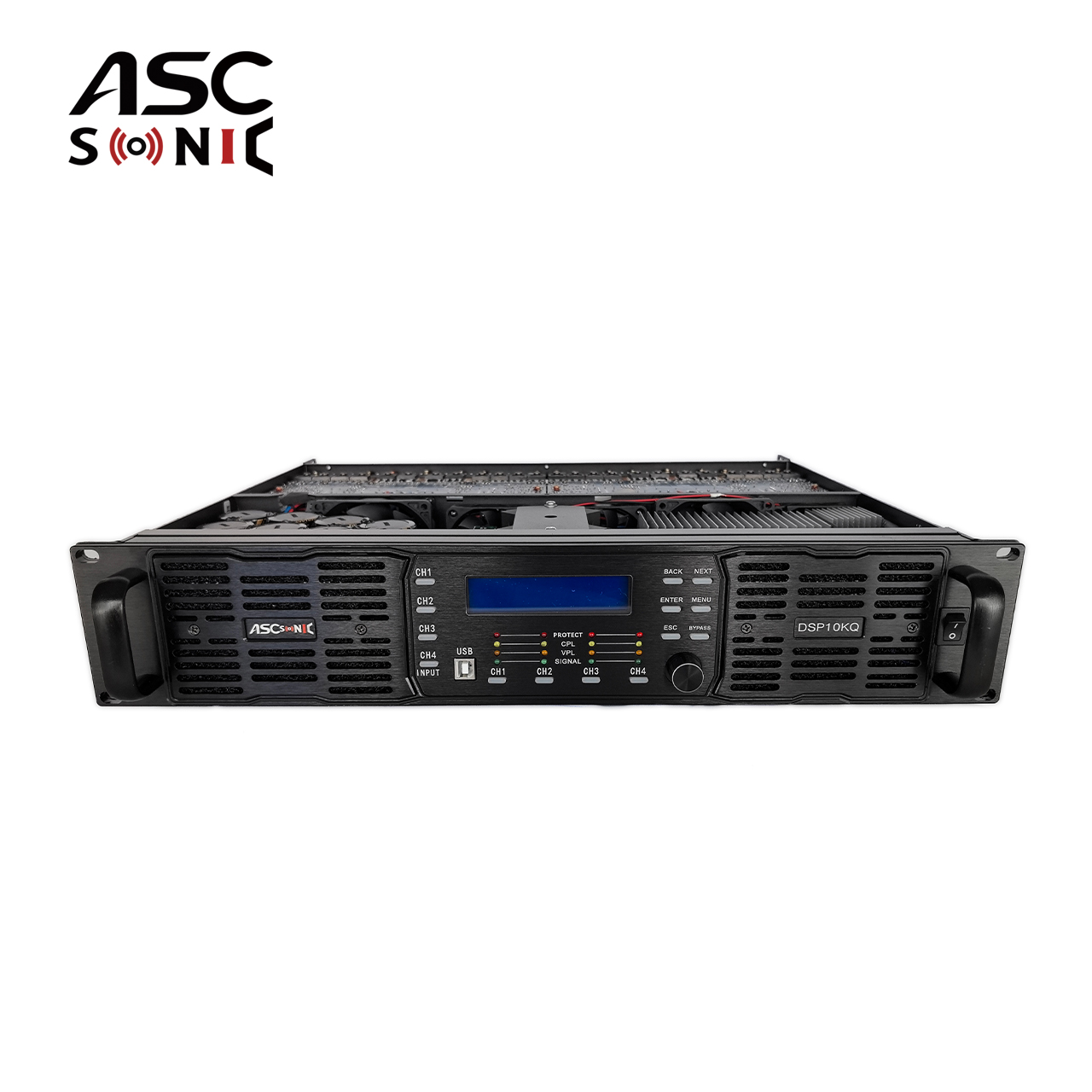

2U rack-mount chassis (483 × 377 × 88 mm), XLR inputs, Speakon outputs, dual voltage (100–120V / 200–240V), intuitive front panel controls and status display.
• Concert Sound & Touring — Drives large speaker arrays with precision and reliability.
• Nightclubs & Auditoriums — Networked control and DSP tuning for consistent, powerful audio.
• Houses of Worship & Theaters — Ensures clarity for vocals and instruments.
• Permanent Installations — Presets and DSP reduce need for external processors.
• Corporate & Event Venues — Quick setup with recallable settings and multi-channel flexibility.
The DSP10KQ combines amplifier, DSP processor, and network management into a single powerful unit. With high output, advanced audio processing, and user-friendly software integration, it minimizes system complexity while maximizing performance — making it a smart choice for professionals who demand reliability and flexibility.
