Worldwide: 90V-265V
| Availability: | |
|---|---|
| Quantity: | |

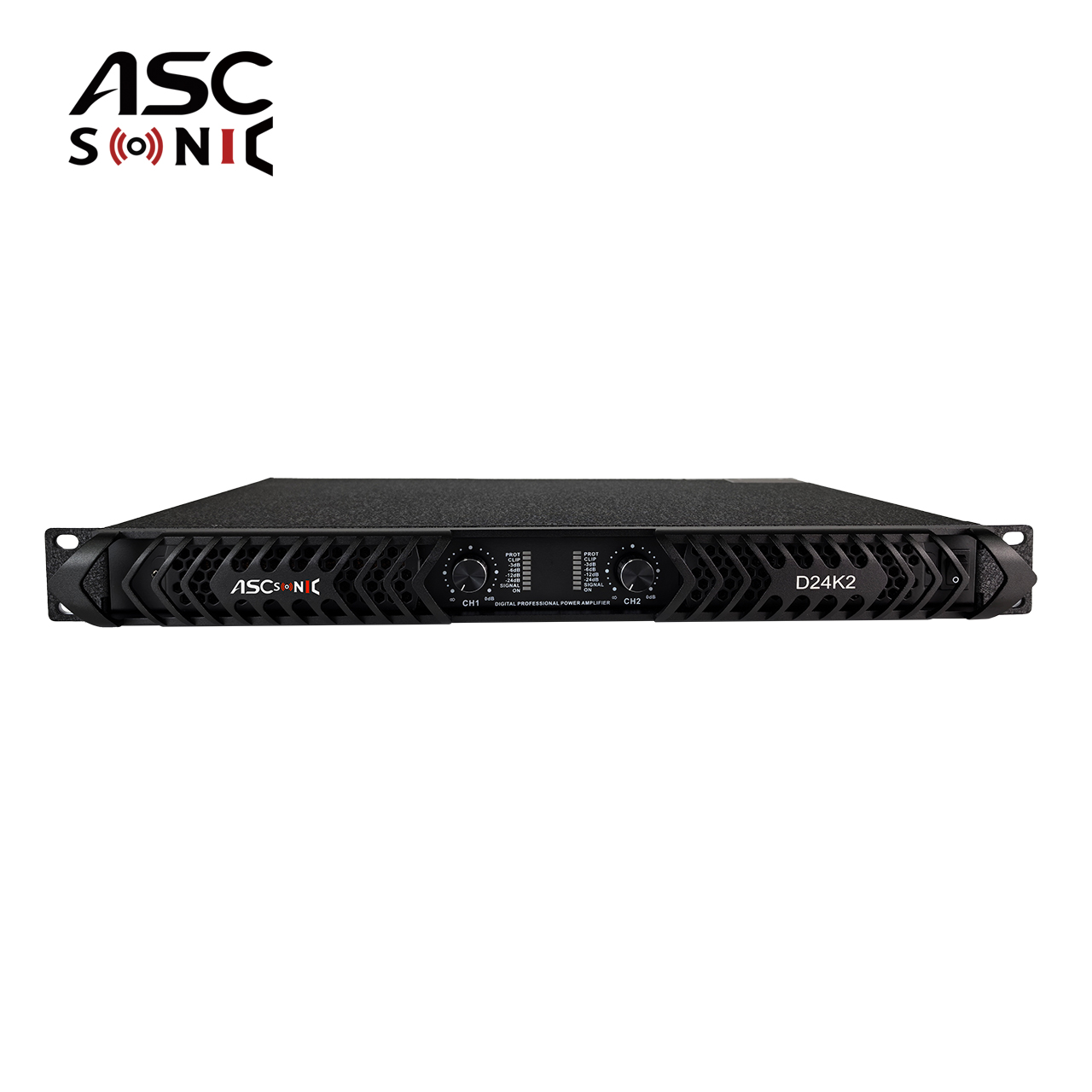

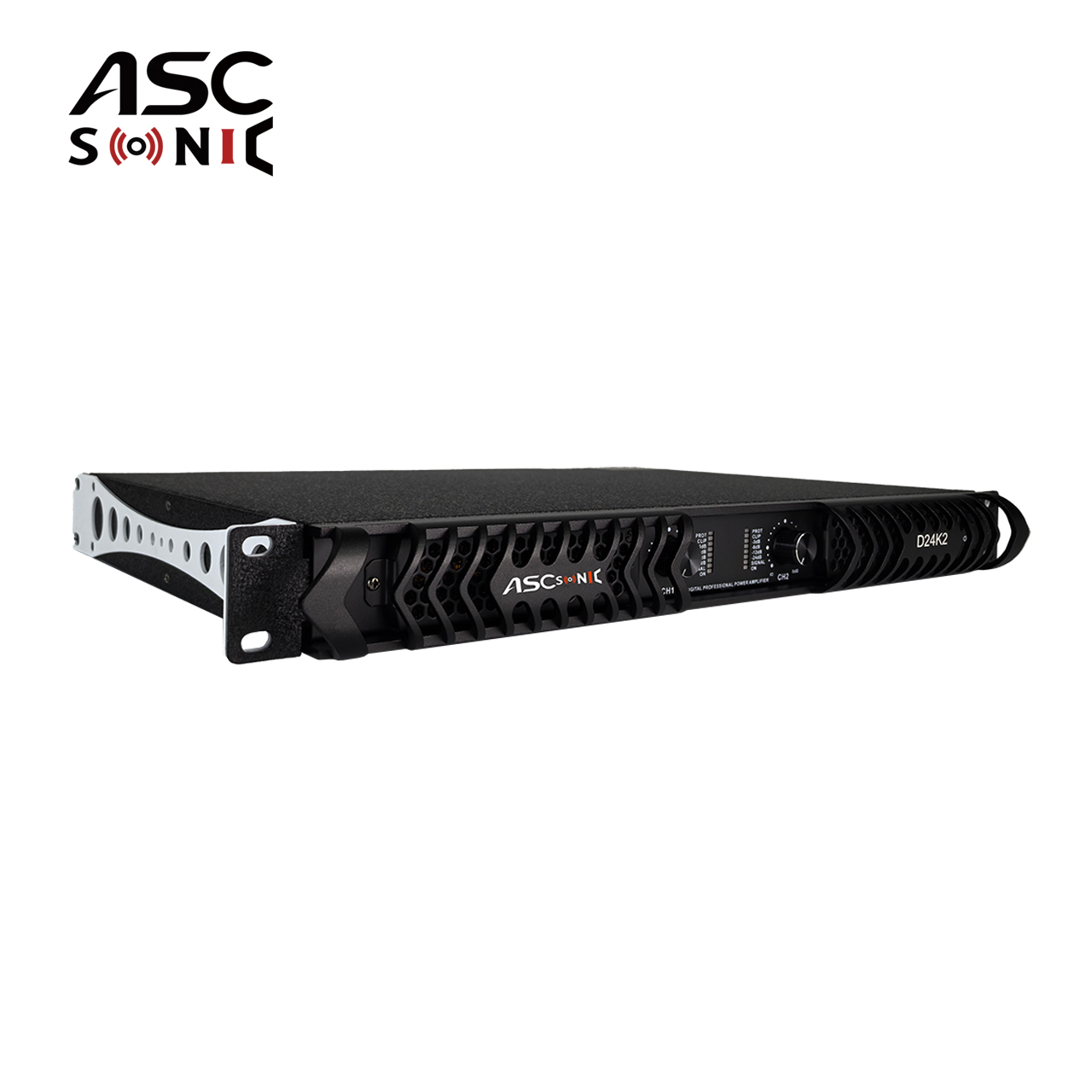

Looking for a powerful subwoofer amplifier that delivers exceptional sound quality and reliability? The D24K2 2CH Class D Professional Audio Power Amplifier is built for professional sound reinforcement, offering high power output, efficient cooling, and outstanding stability—perfect for driving subwoofers in clubs, concerts, and large audio installations.
High Power Output
The D24K2 audio subwoofer power amplifier delivers massive performance with:
• 2×24000W at 8 ohms
• 2×4100W at 4 ohms
• 2×6300W at 2 ohms
This makes it an ideal professional subwoofer amplifier for applications requiring deep, punchy bass and consistent power handling.
Universal Power Supply with PFC
Equipped with an advanced PFC (Power Factor Correction) power supply, the D24K2 subwoofer power amplifier operates on universal voltage from 90V–265V, making it versatile for worldwide use. Its pure copper high-density transformer ensures a strong, stable power output for demanding subwoofer systems.
Class D Amplification Technology
Built on a Class D power amplifier platform, this 2-channel power amplifier offers efficiency, reduced heat generation, and excellent audio performance. It’s designed for small to medium-sized installations that require maximum system flexibility without compromising on sound quality.
Advanced Cooling System

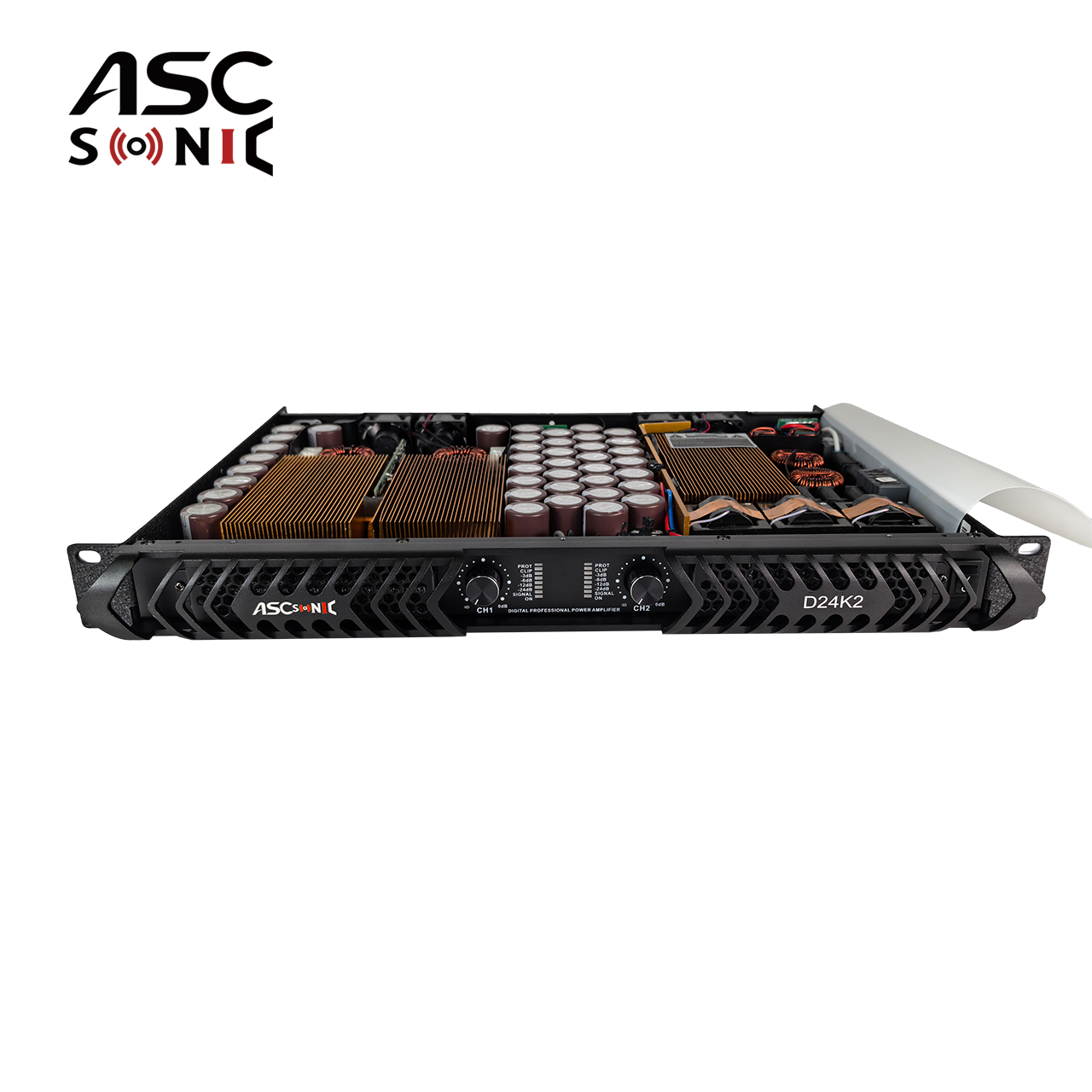

The D24K2 professional audio power amplifier uses copper heatsinks, high-capacity capacitors, and high-speed fans to maintain an efficient cooling system. This ensures long-term stability, low heat buildup, and reliable operation even under heavy loads.
• High-power subwoofer amplifier with professional-grade performance
• Lightweight, compact design for easy installation
• PFC power supply (90V–265V) for global use
• Reliable long-term load stability
• Short-circuit protection & function indicators
ITEM | D24K2 |
8Ω Stereo Power(RMS) | 2400W ×2 |
4Ω Stereo Power(RMS) | 4100W ×2 |
2Ω Stereo Power(RMS) | 6300W ×2 |
8Ω Bridged Power(RMS) | 8200W |
4Ω Bridged Power(RMS) | 12600W |
Frequency response | ±0.5dB |
1KHz THD： | <0.03% |
Signal-to-Noise Ratio 8Ω, 1kHz ,1v Sensitivity | >=104dB |
Input sensitivity (rated power 8Ω) | 0.775V/1V/32dB selectable |
Cross- talk( 20Hz- 1kHz, below Rated Power ) | >=70 dB |

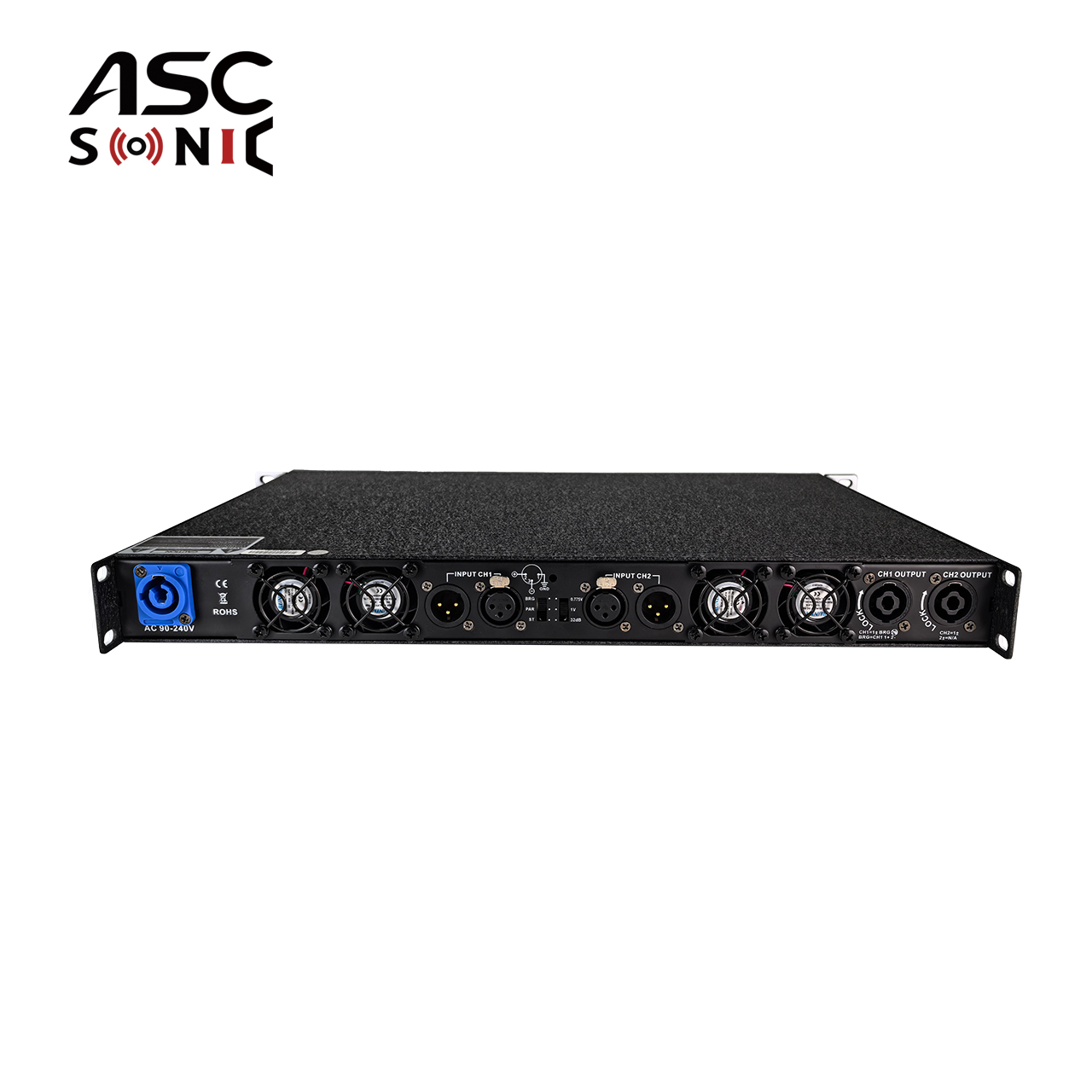

Input Connectors (per channel) | 3-pin XLR, balanced |
Output Connectors (per channel) | Neutrik speakON |
Class | D |
Protection | Under voltage，DC, Over temperature, Over load limiter, short protection |
Operating voltage | 90V-260V |
Input impedance | 20kΩ(Balance),10kΩ（Unbalance） |
Damp Factor | >=5000 |
Dimensions(WXHXD) mm | 480x330x44mm |
Packing dimension (mm) | 515x415x103mm |
Net weight(kg) | 8.7kg |
Gross weight(kg) | 10.5kg |
