• Switching Power Supply – Advanced high-efficiency and stable power delivery for professional use. • Intelligent Signal Limiter – Independent channel overload protection prevents distortion and speaker damage.
• Comprehensive Protection System – Includes soft start, second start, low voltage, overload, and short circuit protection.
• High Efficiency, Low Heat – Class TD amplification minimizes power loss and reduces overheating.
• Durable Metal Housing – Equipped with high-power transistors for pure, authentic, and powerful audio output.
• Removable Front Mesh – Easy-to-clean wind-net design ensures long-term performance and maintenance convenience.

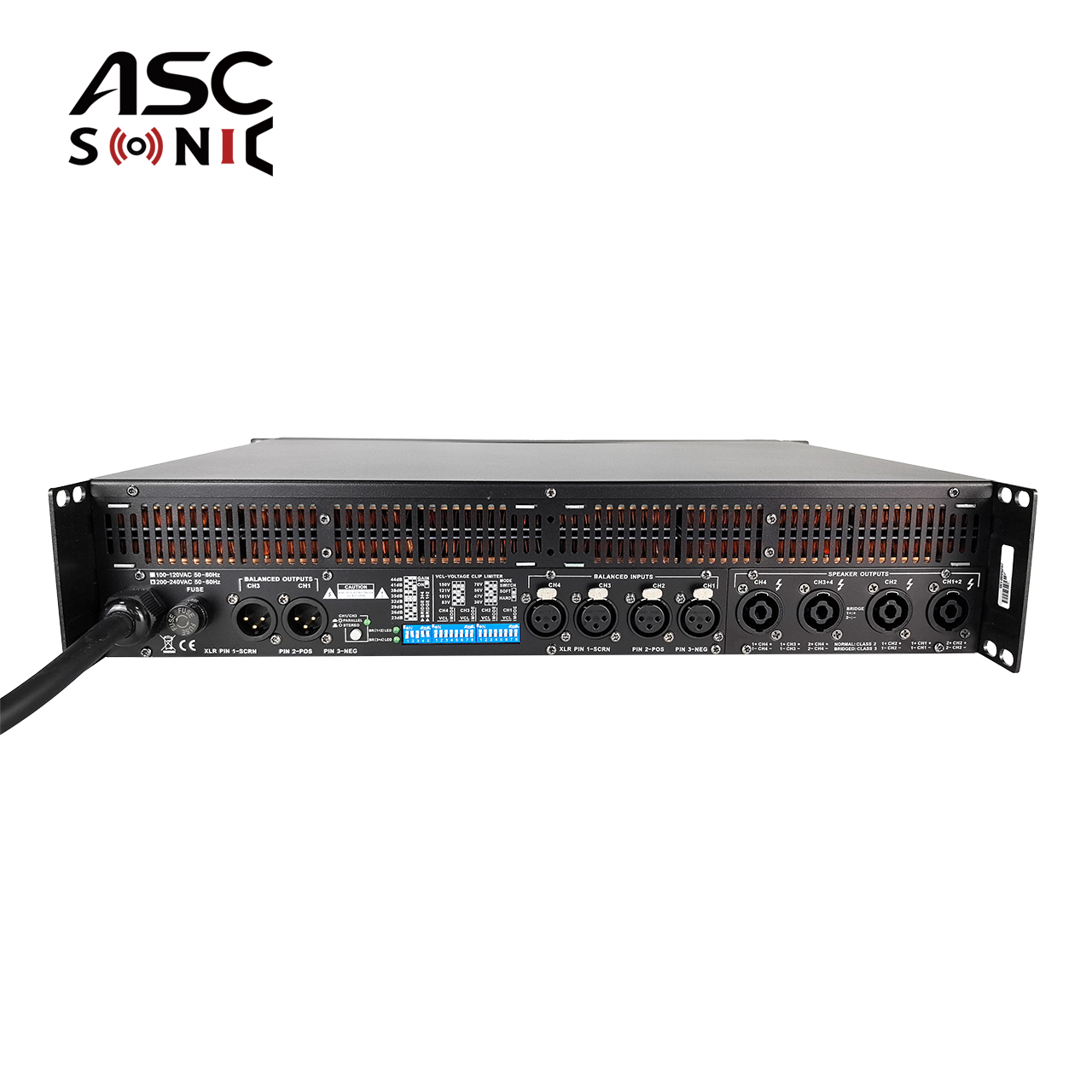

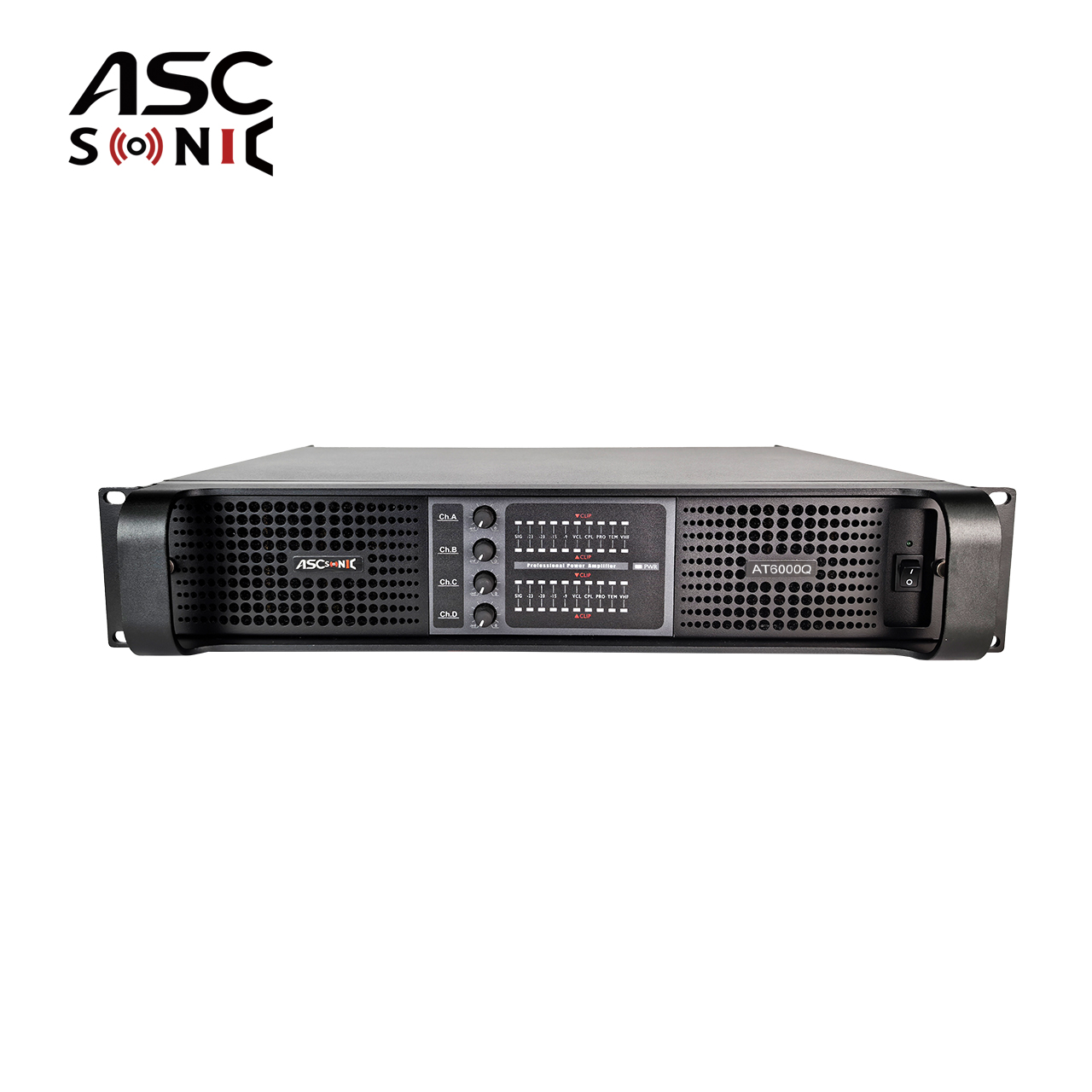

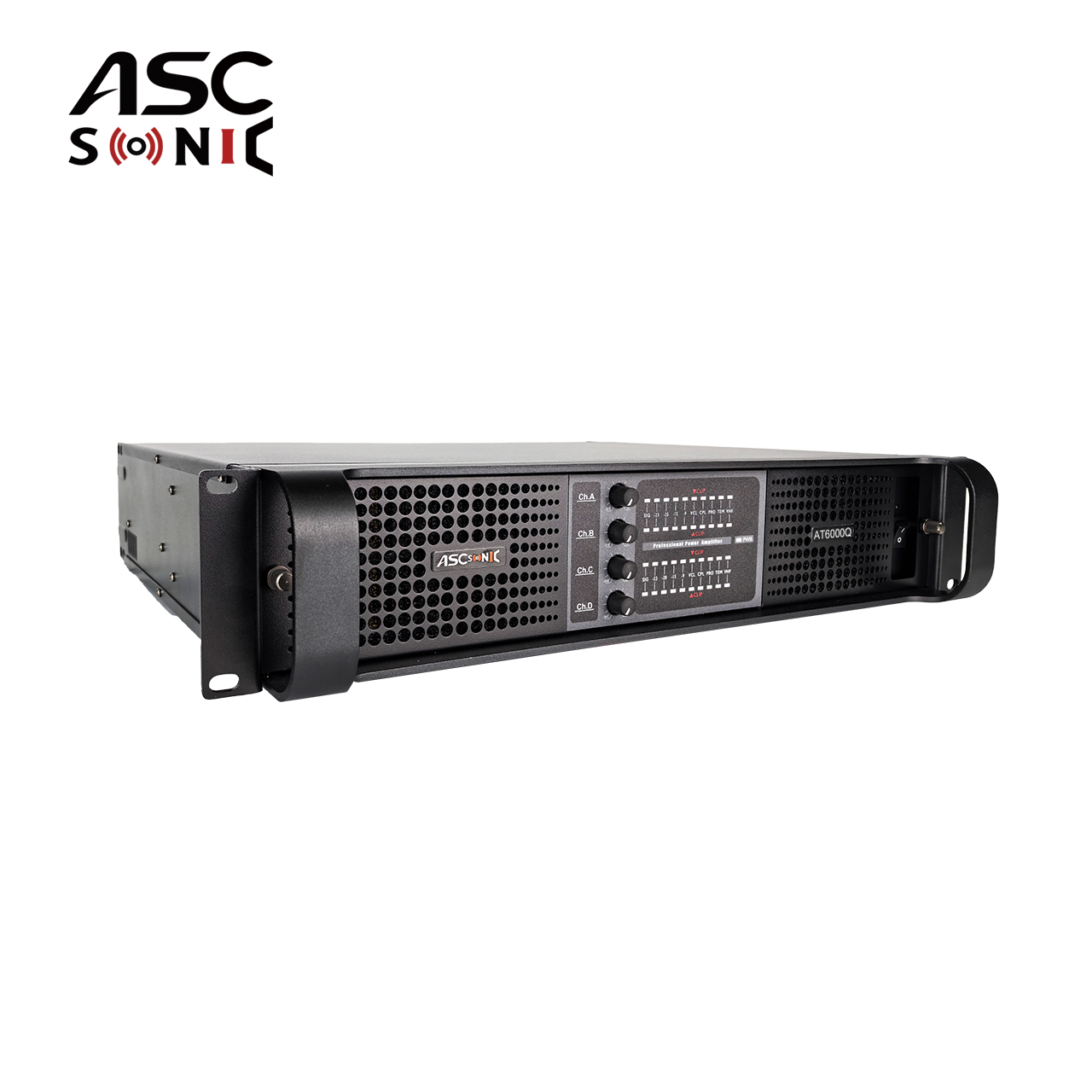

The AT6000Q 4-Channel Pro Audio Power Amplifier is engineered for high-performance sound reinforcement in demanding live environments. With Class TD amplifier technology and a high-efficiency switching power supply, this model delivers maximum output with reduced heat loss, ensuring consistent and reliable performance for long hours of use.
Key Features
• Switching Power Supply – Advanced high-efficiency and stable power delivery for professional use. • Intelligent Signal Limiter – Independent channel overload protection prevents distortion and speaker damage.
• Comprehensive Protection System – Includes soft start, second start, low voltage, overload, and short circuit protection.
• High Efficiency, Low Heat – Class TD amplification minimizes power loss and reduces overheating.
• Durable Metal Housing – Equipped with high-power transistors for pure, authentic, and powerful audio output.
• Removable Front Mesh – Easy-to-clean wind-net design ensures long-term performance and maintenance convenience.
Applications
Perfect for medium to large-scale professional audio installations, including:
• Arenas & Convention Centers
• Large Ballrooms & Corporate Events
• Theaters & Live Music Venues
• Nightclubs, Churches, and Houses of Worship
• Concert Sound Reinforcement
With its exceptional sound clarity, robust protection system, and reliable Class TD design, the AT6000Q is the ideal choice for professional audio engineers, DJs, and event organizers who need uncompromising sound power and stability.
Specification
ITEM | AT6000Q |
Output Power |
|
8Ω Stereo Power(RMS) | 900W ×4 |
4Ω Stereo Power(RMS) | 1600W ×4 |
2Ω Stereo Power(RMS) | 2000W ×4 |
8Ω Bridged Power(RMS) | 3500W ×2 |
4Ω Bridged Power(RMS) | 4000W ×2 |
Frequency Response(+0/-0.3dB, 1W/8Ω) | 20Hz -34KHz |
THD+N:1KHz | <0.1% |
Signal-to-Noise Ratio | >112 dBA |
Channel separation(Crosstalk)at 1KHz | >70 dB |
Input Connectors (per channel) | 3-pin XLR, balanced |
Output Connectors (per channel) | Binding Posts 2-pole, Speakon |
Class | TD |
Protection | Short-circuit, DC voltage, turn-on/off transient, current inrush |
Operating voltage | 220V Version: 130-265 V / 110V Version: 65- 135 V selectable |
Voltage Gain(dB) | 23,26,29,32,35,38,41,44 dB selectable |
Input impedance | 20 Kohms |
Level adjustment(per ch.) | Front-panel potentiometer, 31position detected from-inf to 0dB |
Dimensions(WXHXD) | 483×88×396mm |
Packing dimension | 580×180×560mm |
Net weight(kg) | 13 |
Gross weight(kg) | 18 |
