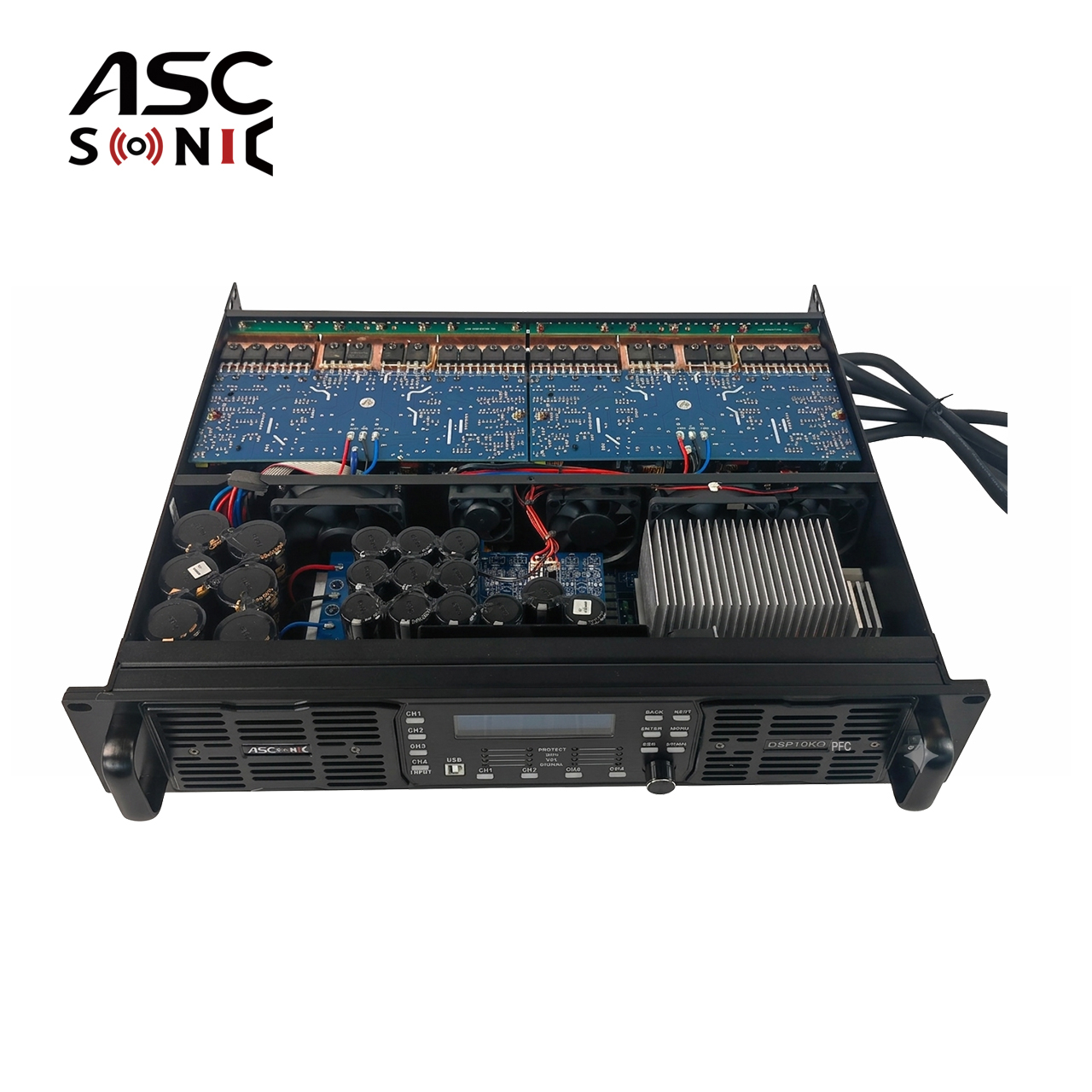

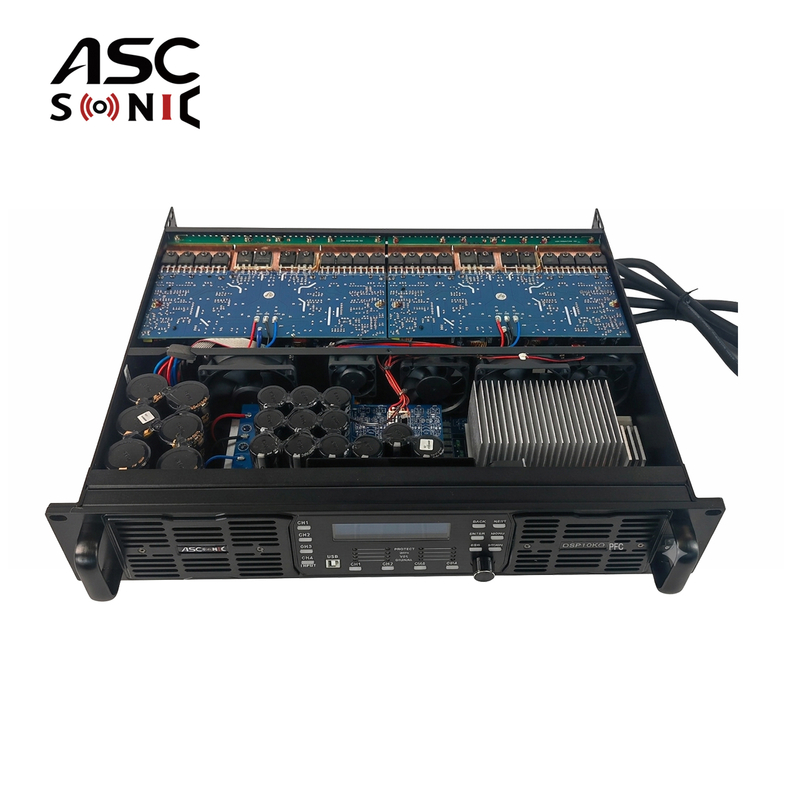

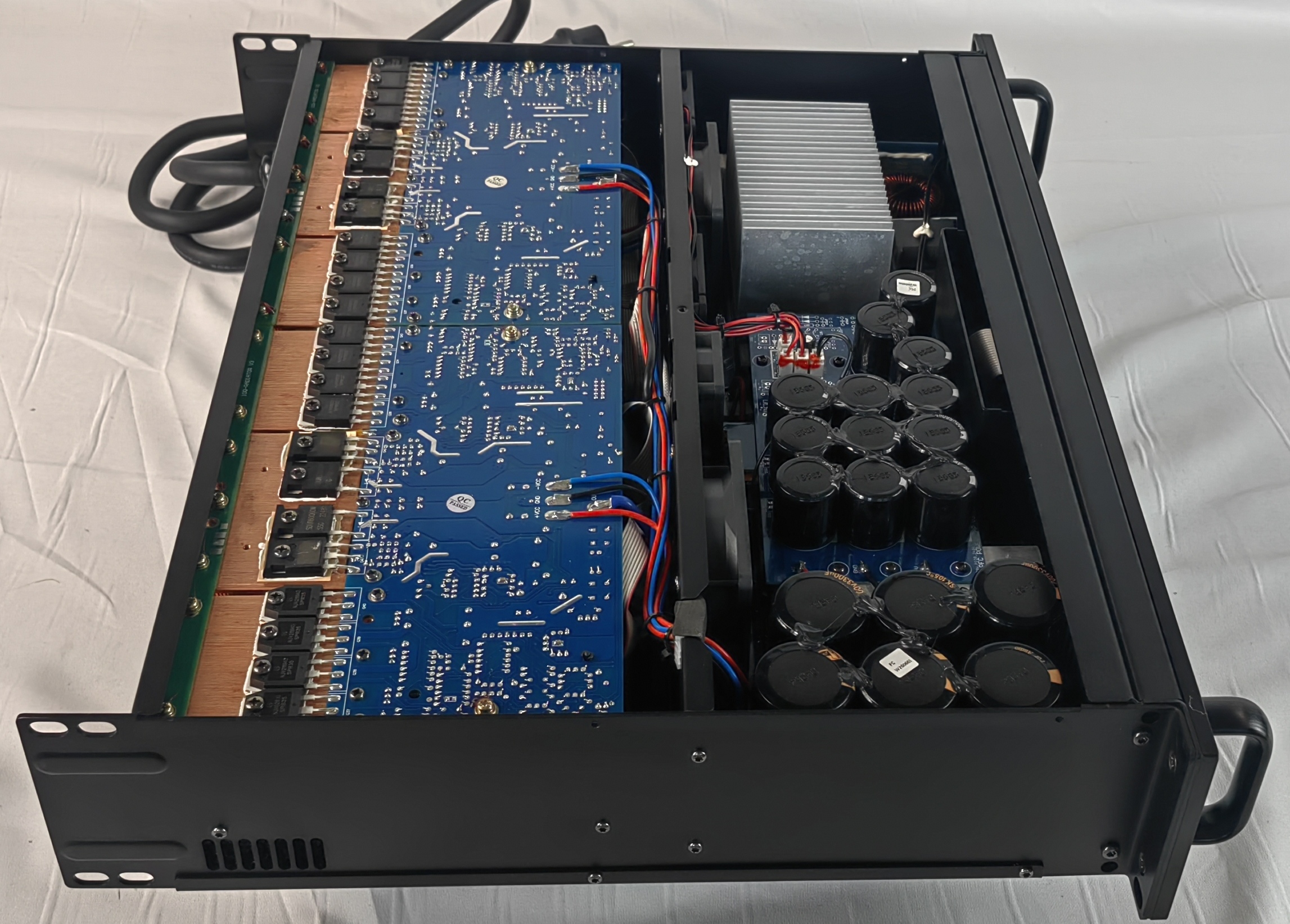

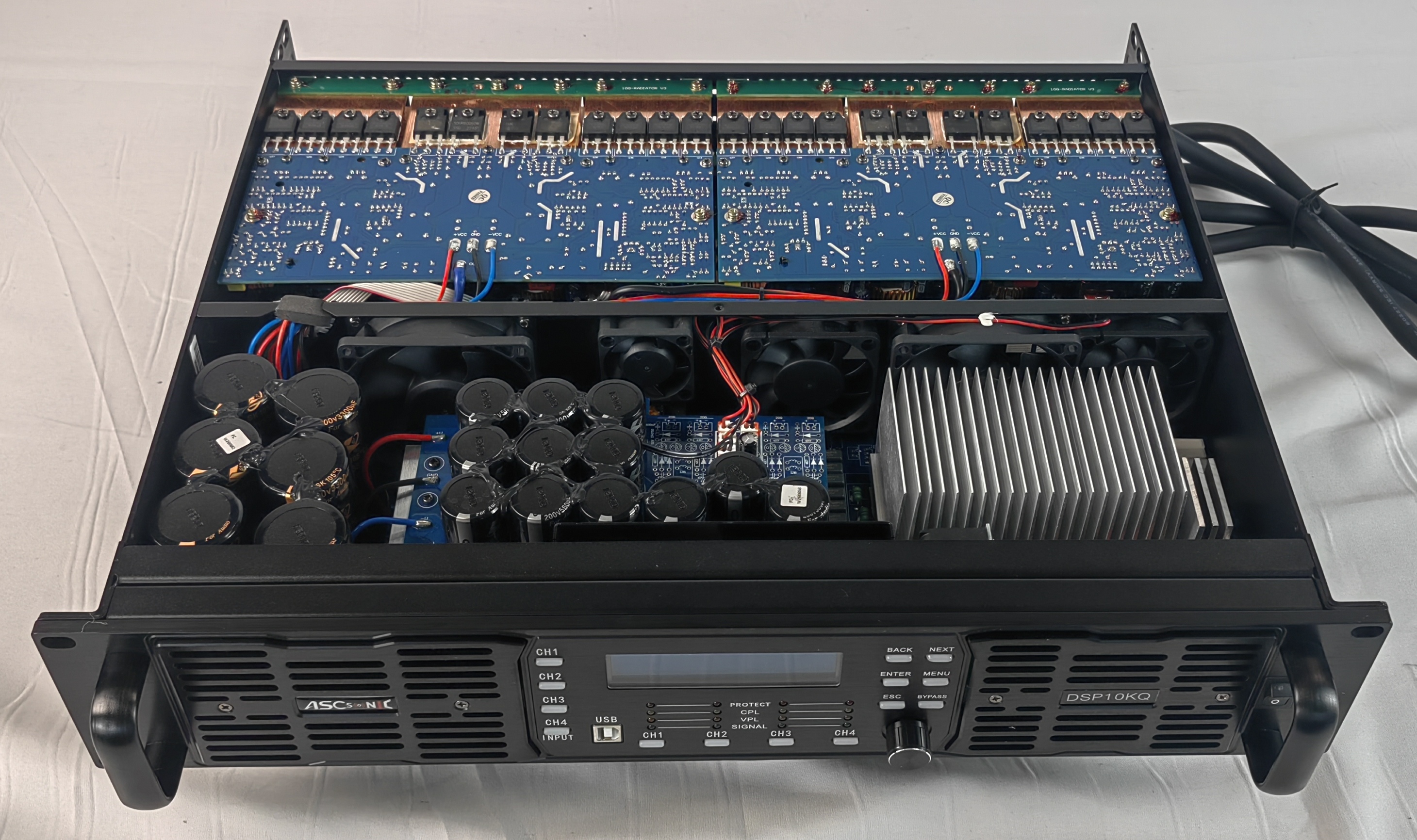

The Ascsonic DSP10KQ-PFC represents the next generation of professional audio amplification, combining staggering power density, advanced digital signal processing, and ultimate power stability. Engineered for high-demand touring, large-scale live sound reinforcement, and premium installations, this 4-channel 10000 watts digital DSP power amplifier delivers up to 4 x 2500W at 4 ohms of clean, impactful audio.
Now equipped with an advanced Active Power Factor Correction (PFC) power supply, the DSP10KQ-PFC automatically adapts to global main voltages from 90V to 260V. No matter where your show is—even under unstable grid conditions or long cable runs—this amplifier guarantees flawless, uninterrupted performance.
Key Features
Universal Active PFC Power Supply (90V-260V Auto):
The integrated Power Factor Correction (PFC) technology optimizes power grid utilization and allows the amplifier to operate seamlessly worldwide. It automatically detects and adapts to AC mains between 90V and 260V, ensuring stable high-power output even during severe voltage drops.
Massive 10,000 watt Output Power:
Configured as a high-efficiency Class D topology, it delivers massive headroom in a compact 2U rack chassis, making it the perfect match for high-power line array systems.
Advanced Onboard DSP & Ethernet Control:
Take full control of your sound with the built-in high-resolution DSP. Adjust Crossover, EQ, Delay, Limiter, and Gain precisely via the intuitive PC software. With the Ethernet network interface, multiple amplifiers can be grouped, monitored, and controlled remotely in real-time over a local network.
Uncompromising Audio Quality:
Featuring premium components and a high-end DAC/ADC matrix, the DSP10KQ-PFC boasts a high damping factor, ultra-low distortion, and an exceptional signal-to-noise ratio, ensuring crystal-clear highs and deep, controlled low frequencies.
Intelligent Cooling & Comprehensive Protection:
A multi-stage thermodynamic cooling system with variable-speed fans keeps the temperature optimal. Built-in protection circuits safeguard your investment against over-current, DC, over-voltage, under-voltage, short-circuit, and thermal overload.
Technical Specifications
Parameter | Specifications |
Model | DSP10KQ-PFC |
Number of Channels | 4-Channel Input / 4-Channel Output |
8Ω Stereo Power (RMS) | 4×1350W |
4Ω Stereo Power (RMS) | 4×2200W |
2Ω Stereo Power (RMS) | 4x2500W |
8Ω Bridged Power (RMS) | 2x4400W |
4Ω Bridged Power (RMS) | 2x5000W |
Power Supply Type | Regulated Switching Mode (SMPS) with Active PFC |
Operating Voltage | 90V - 260V AC (Automatic Selection), 50Hz/60Hz |
Frequency Response | ±0.25dB, 20Hz --- 20KHz |
THD + N (1KHz) | 0.1% |
Signal-to-Noise Ratio | 110dB |
Onboard DSP Functions | Gain, Delay, Phase, PEQ (Parametric EQ), Limiter, Crossover (X-over) |
Network Connectivity | Ethernet (RJ45) for remote PC software control |
Input &output Connectors | Speakon Connectors(NEUTRIK) |
Net weight | 13KG |
Chassis Dimension | 2U Rack Space 483×377×88mm |
Target Applications
Touring Sound & Live Festivals: Reliable operation on mobile generator power.
Line Array Sound Systems: Powers multiple mid-high elements or subwoofers with extreme precision.
Large Venues & Nightclubs: Perfect for long-duty cycles and heavy bass applications.
Stadiums and Auditoriums: Centralized control via Ethernet network.
