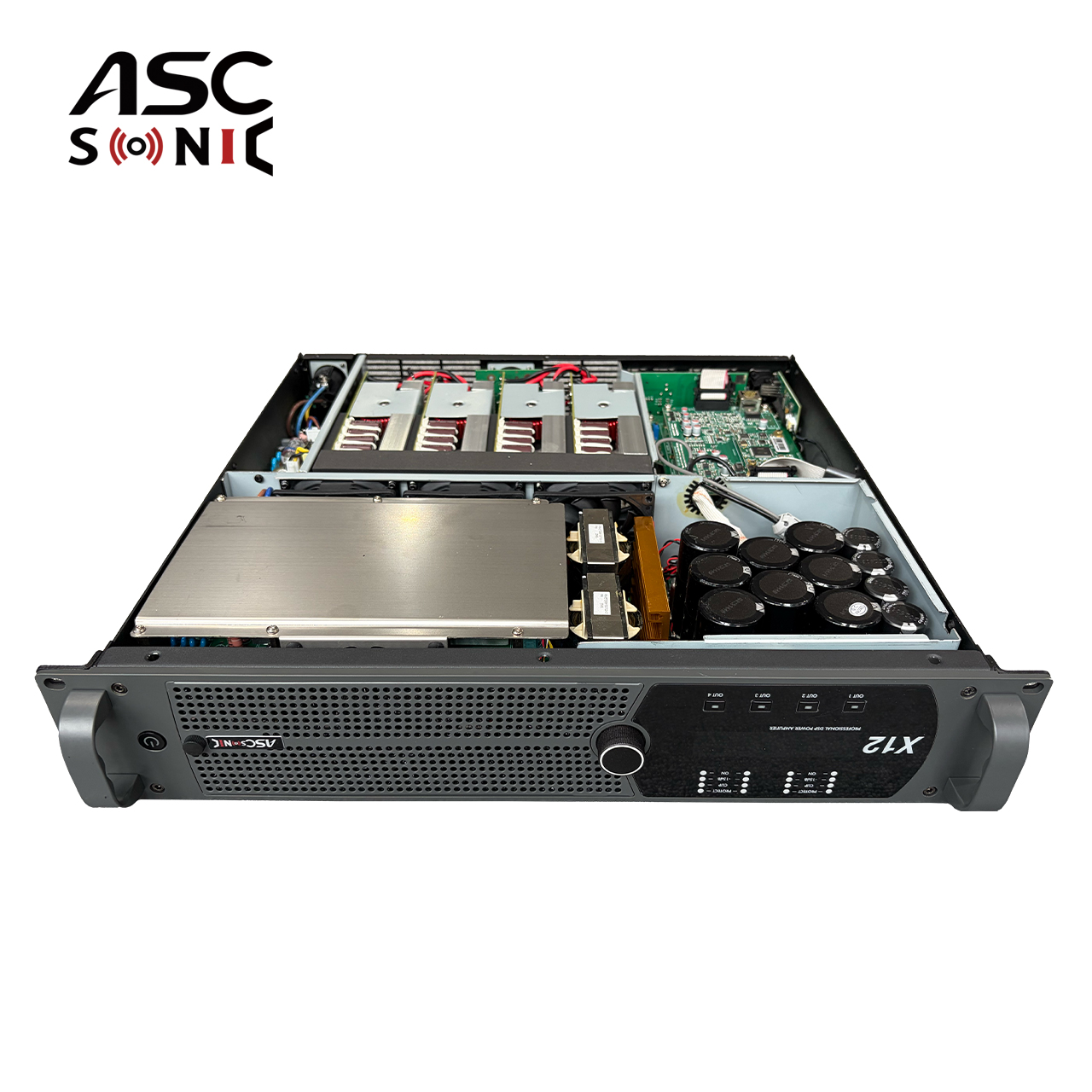

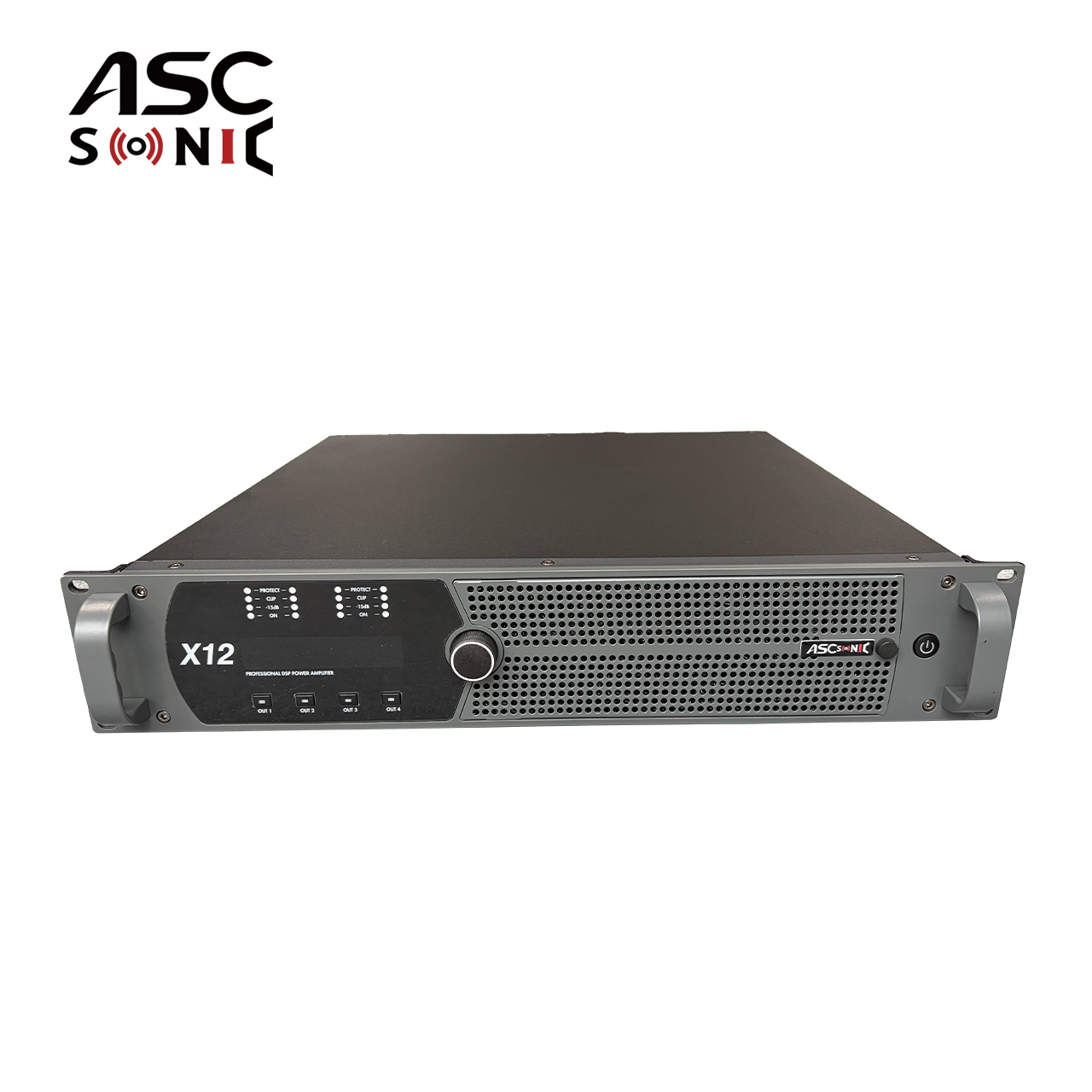

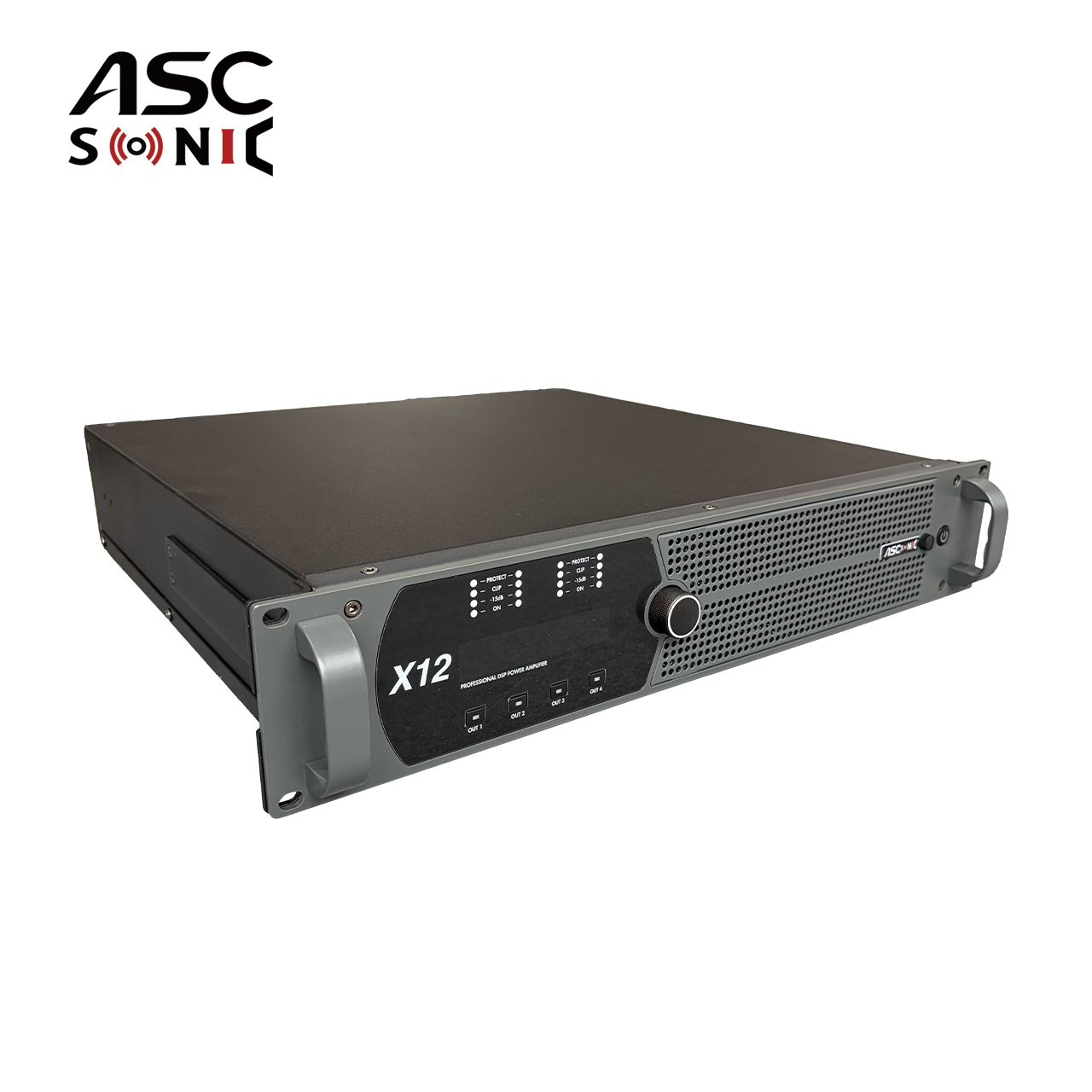

The X12 4-channel DSP power amplifier is a high-performance professional audio solution designed for large-scale sound reinforcement, touring systems, and fixed installations. With a total output of 12000W, the X12 delivers exceptional power, precision, and efficiency for demanding professional environments.
Built with advanced Class D amplification technology, the X12 ensures high efficiency, reduced heat dissipation, and stable operation even under continuous high-load conditions. The integrated DSP processing system provides full control over audio parameters, enabling precise system tuning and optimal sound performance.
The amplifier features a 4-input / 4-output architecture, making it ideal for driving line array speakers, subwoofers, and full-range PA systems. Its compact design and powerful output make it a reliable core component in modern professional audio systems.
Advanced DSP & Control
The X12 is equipped with a powerful DSP engine, allowing real-time control and optimization of the audio system.
DSP functions include:
Input/output EQ
Crossover (Xover)
Delay alignment
Limiter protection
Gain control
Polarity adjustment
This ensures accurate system tuning, speaker protection, and consistent sound quality across different venues.
High Efficiency Class D Amplification
The Class D power module provides:
High energy efficiency
Low heat generation
Lightweight design
Stable high-power output
This makes the X12 ideal for touring sound systems and rental applications, where reliability and portability are essential.
Flexible Connectivity & Networking
The X12 supports modern system integration with:
Ethernet / network control
Multi-device control via PC software
Optional wireless (WiFi) control
Professional audio signal routing
This allows sound engineers to manage multiple amplifiers efficiently in large-scale systems.
12000W total output power (4-channel amplifier)
High-efficiency Class D amplifier design
Integrated DSP processing system
4 input / 4 output architecture
Advanced system protection (limiter, thermal, overload)
Network control via Ethernet / PC software
Compact and lightweight chassis
Ideal for line array and subwoofer systems
The X12 DSP power amplifier is widely used in:
Line array sound systems
Live concerts and touring productions
Outdoor events and festivals
Nightclubs and entertainment venues
Auditoriums and theaters
Churches and houses of worship
Input: | 4 channel |
Output: | 4 channel |
Processor: | DFM Germany |
Dynamic range: | >110dB |
Frequency Response: | ±0.1dB, 20Hz - 34KHz |
Distortion: | < 0.01%, 20Hz - 20KHz @ +10dBu balanced input |
Signal to noise ratio: | >120dB |
Output Power | |
8Ω Stereo Power | 4×1500W |
4Ω Stereo Power | 4×2800W |
2Ω Stereo Power | 4×3000W |
Input Impedance | 20KΩ Balanced / 10kΩ Unbalanced |

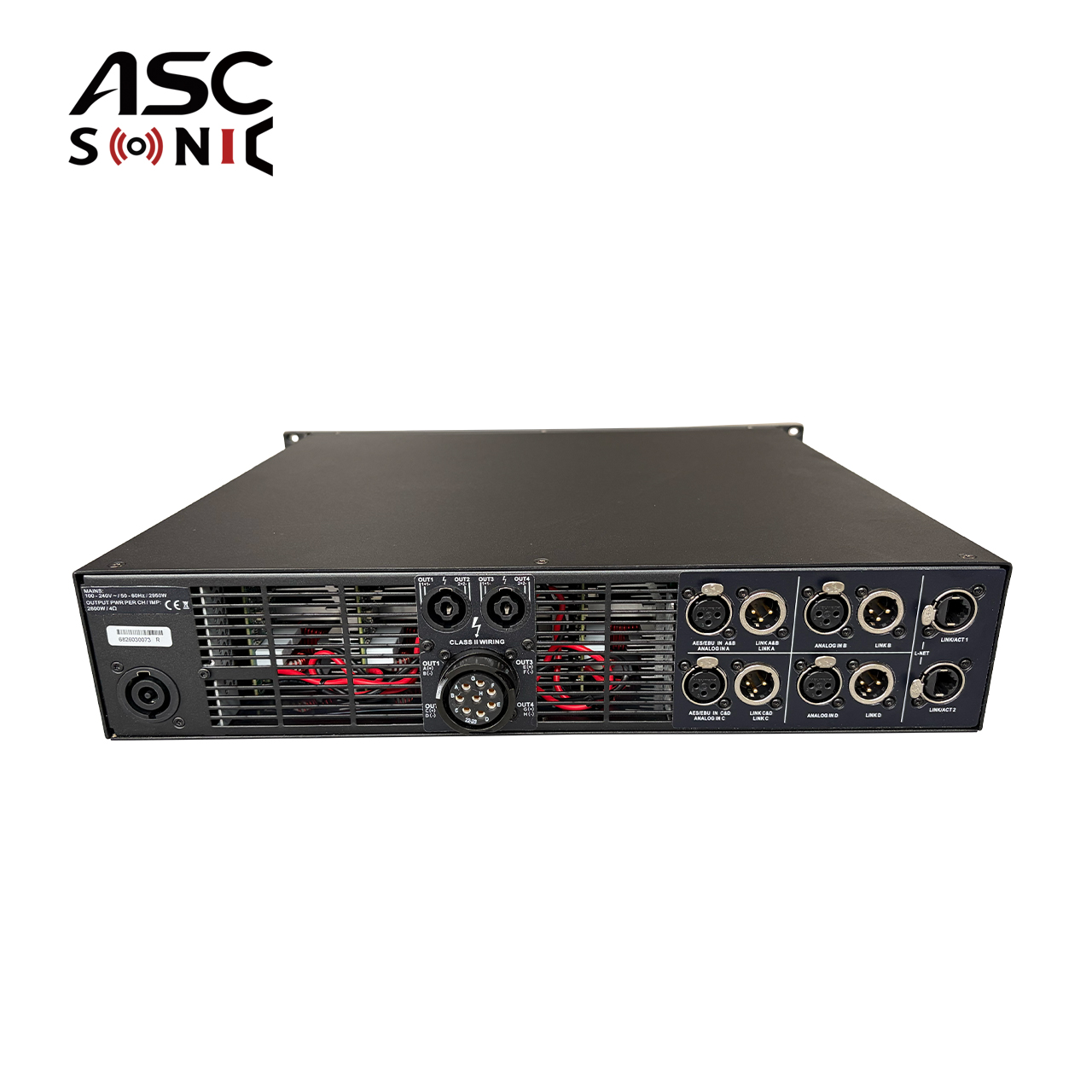

Output Connectors | Speakon Connectors (NEUTRIK) |
Power Requirement | 100-240V-50Hz |
Protection | Short circuit, open circuit, thermal, overload, DC, super audio protection |
Dimension | |
Airframe | 483×459×88mm 18kg |
High Power for Professional Systems
With 12000W output, the X12 can easily drive multiple speakers, making it suitable for large venues and high SPL applications.
Smart DSP Control
The built-in DSP allows engineers to fine-tune the entire sound system, improving clarity, balance, and system protection.
Reliable for Touring Use
Designed for continuous high-power operation, the X12 ensures stable performance for rental companies and touring professionals.
Perfect Match for Line Array Systems
The X12 is optimized to power line array speakers and subwoofers, delivering a complete and efficient PA solution.
