LA-208P&LA-18SP
Ascsonic Audio
110V or 220V
| Availability: | |
|---|---|
| Quantity: | |

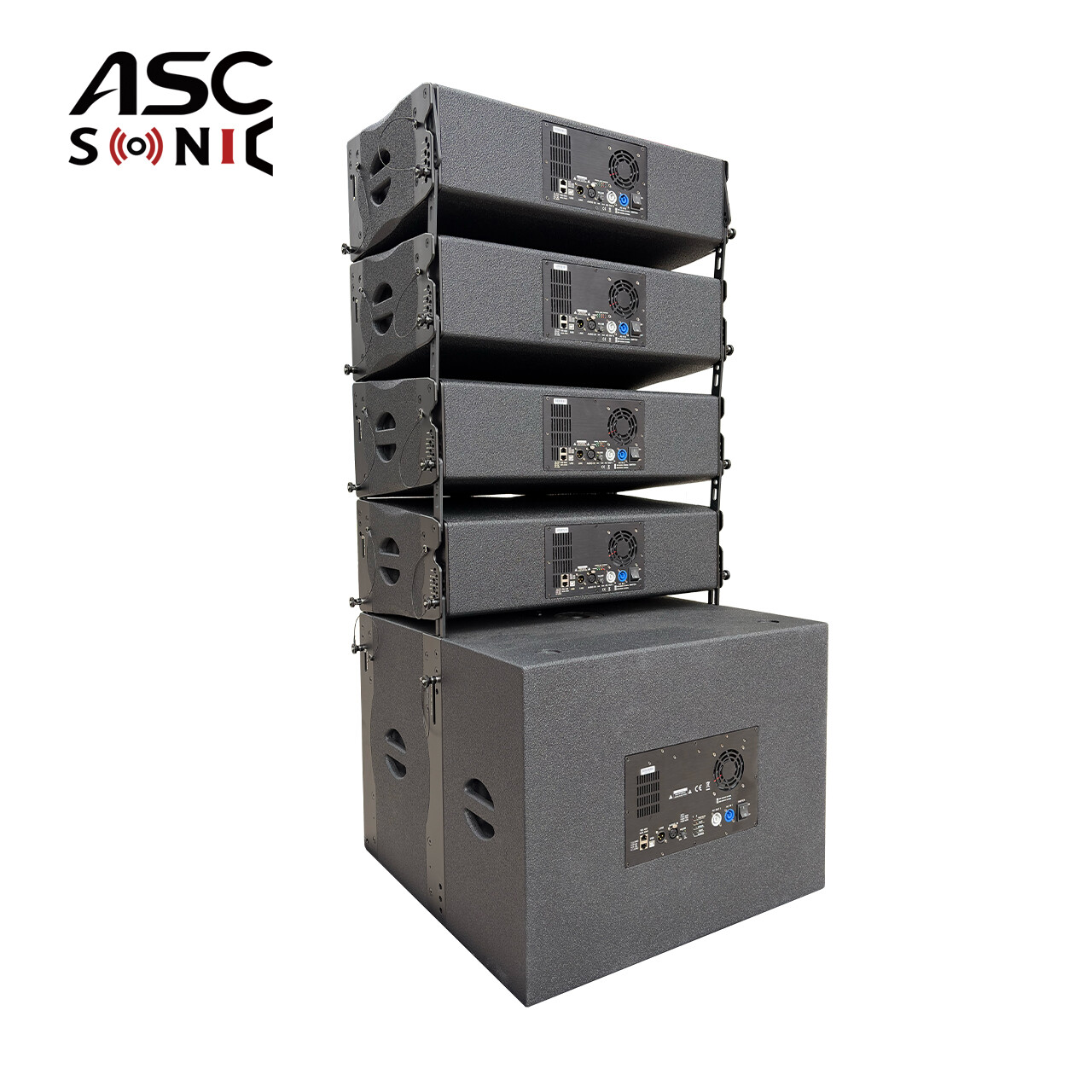

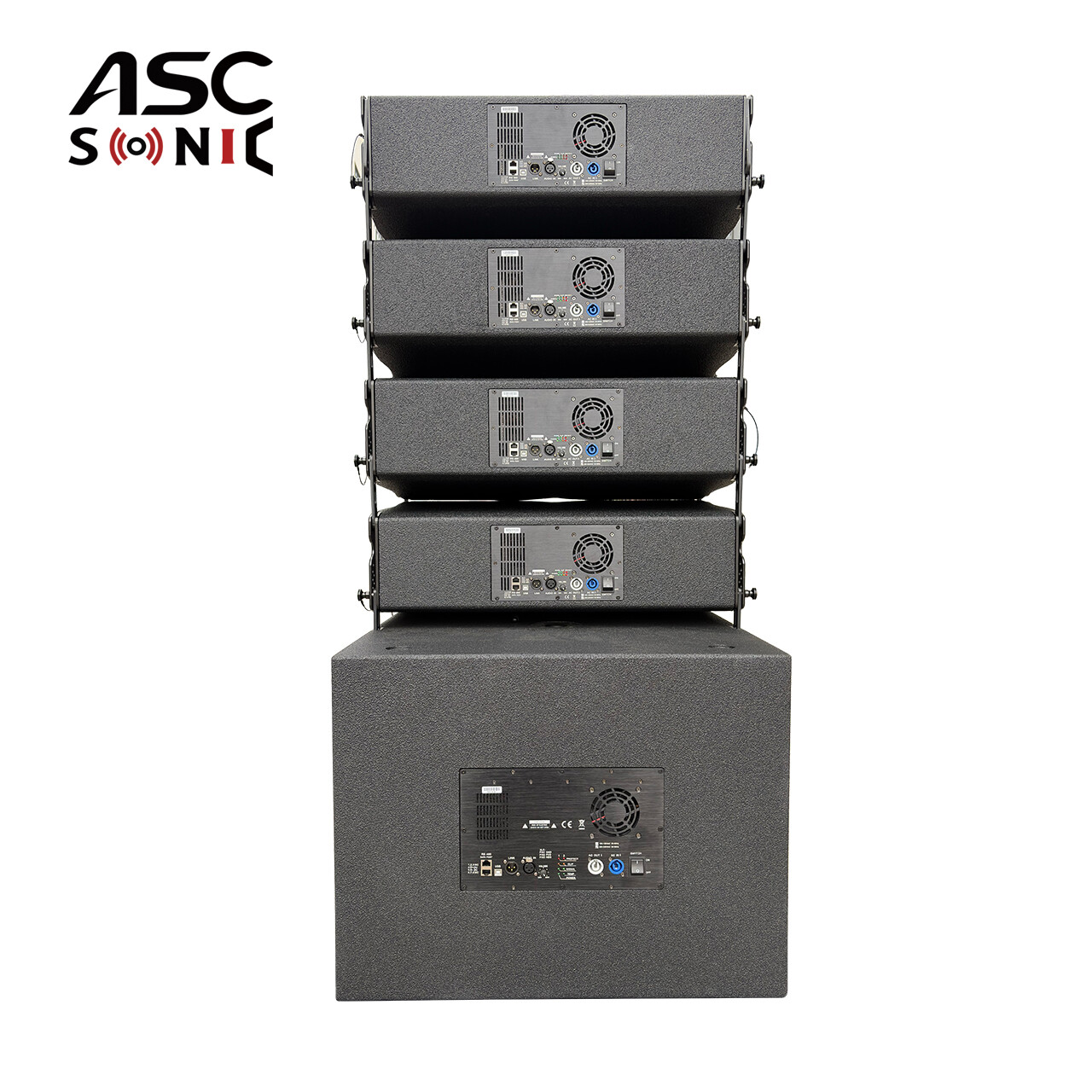

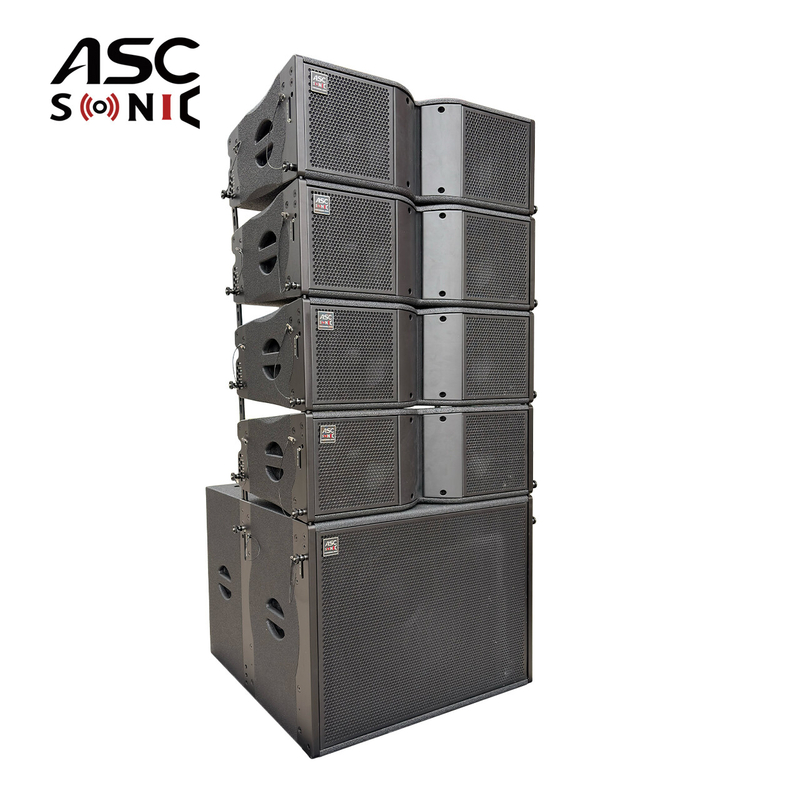

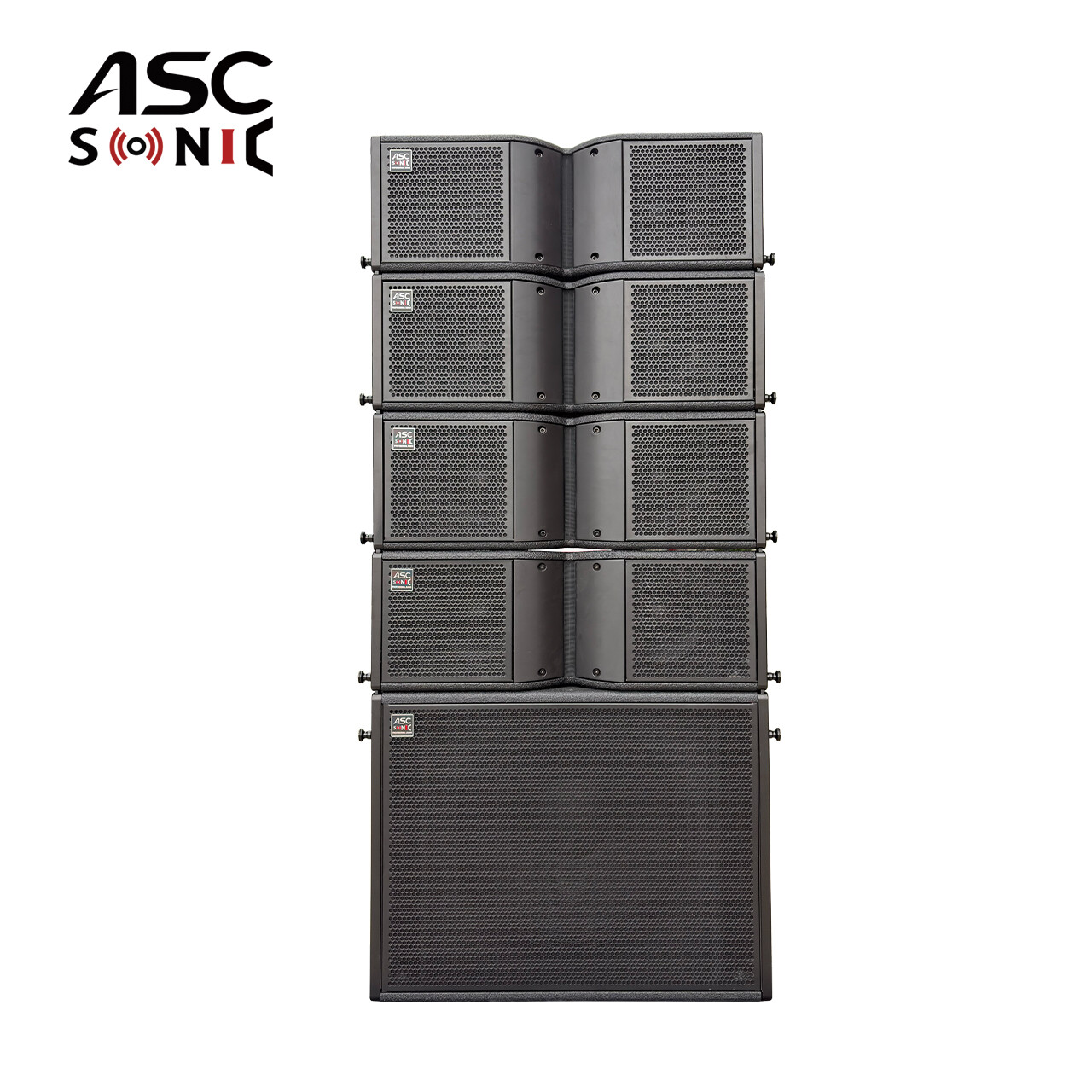

The LA-208P Dual 8″ Self-Powered Line Array Speaker System is a professional-grade active PA solution engineered for live sound reinforcement, concerts, and installations. This compact yet powerful array combines dual 8″ neodymium woofers with a high-efficiency compression driver in a self-powered line-array enclosure designed for accurate directivity and extended dynamic range. Built-in DSP processing provides advanced audio control, including EQ, limiter, delay and crossover adjustments via USB or RS-485. With rugged birch plywood construction and integrated rigging hardware, the LA-208P delivers reliable performance for touring, fixed installations and scalable line array deployments.
To build a complete active line array speaker system, the LA-208P is perfectly matched with the LA-18SP active subwoofer. This combination delivers full-range coverage with powerful, controlled low-frequency performance for professional live sound applications.
The LA-18SP is a single 18-inch self-powered subwoofer featuring a high-efficiency neodymium low-frequency driver and a dual bass-reflex tuned enclosure. Designed for high output and reliability, it produces deep, punchy bass with a maximum SPL of up to 138 dB and extremely high sensitivity, ensuring strong low-end reinforcement even in demanding environments.
With a built-in amplifier and optimized acoustic design, the LA-18SP integrates seamlessly with the LA-208P active line array, making it an ideal solution for touring PA systems, live concerts, rental sound systems, houses of worship, and fixed installations.
Self-Powered Dual 8″ Line Array Modules – Each LA-208P enclosure features two 8″ neodymium woofers and a 3″ compression driver for rich low-mid response and clear highs, delivering high SPL and tight punch for PA applications.
Advanced DSP Audio Control – Built-in DSP allows real-time adjustments of gain, delay, polarity, crossover and limiting, giving sound engineers precise system-tuning control straight from a PC interface.
Scalable Line Array Design – Multiple LA-208P speakers can be flown or stacked safely using the integrated rigging system, enabling scalable coverage for small to large venues.
Rugged Birch Plywood with Weather Resistance – Durable cabinet construction with weather-resistant finish ensures reliability for touring, outdoor events, and rental productions.
Balanced Neutrik Connectors & Easy Setup – Professional NL4 connections simplify signal routing and ensure secure wiring in demanding pro audio setups.
Live Music & Touring Productions
The LA-208P array is ideal for touring rigs and live events, providing high output and consistent directivity that keeps clarity and impact across large audiences.
Concerts & Outdoor Events
Its line array design and integrated DSP make it suitable for outdoor festivals or concerts where even coverage and powerful bass response are essential.
Fixed Installations in Theaters & Houses of Worship
The LA-208P excels in permanent installations, offering professional-level audio shaping and long-term reliability in venues requiring high fidelity reinforcement.
Rental Companies & Mobile AV Systems
With compact modules and quick setup rigging, this powered line array system is perfect for rental inventories and mobile sound technicians needing flexible configurations.
LA-208P dual 8 inch powered line array
Usable bandwidth (-10dB) | 55 Hz - 20 kHz |
Nominal directivity (-6dB) | Horizontal 110° symmetric |
Vertical: Dependent upon number of elements and line source curvature | |
Maximum SPL1 | 141 dB |
RMS handling capacity | LF: 450 W HF: 80 W |
Components LF: 2 x 8’’ neodymium weather-resistant HF: 1 x 3’’ neodymium diaphragm compression driver | |
Nominal impedance: LF = 8 ohms, HF = 8 ohms | |
Dimension (W x H/h x D) | 730 x 250/164 x 482 27.7 x 9.8/6.4 x 19 in |
Weight (net) | 26 kg 57.2 lbs |
Connectors | 2 x 4 Neutrik |
Material | birch plywood |
LA-18SP single 18 inch active subwoofer
Low frequency limit (-10dB) | 32 Hz |
Maximum SPL1 | 138 dB |
RMS handling capacity | 800W |
Components LF: 1 x18" neodymium woofer | |
Nominal impedance: 8 ohms | |
Dimension (W x H/h x D) | 750 x 540 x 707mm 29.5 x 21.3 x 27.8 in |
Weight (net) | 52 kg |
Connectors | 2 x 4 Neutrik |
Material | birch plywood |
