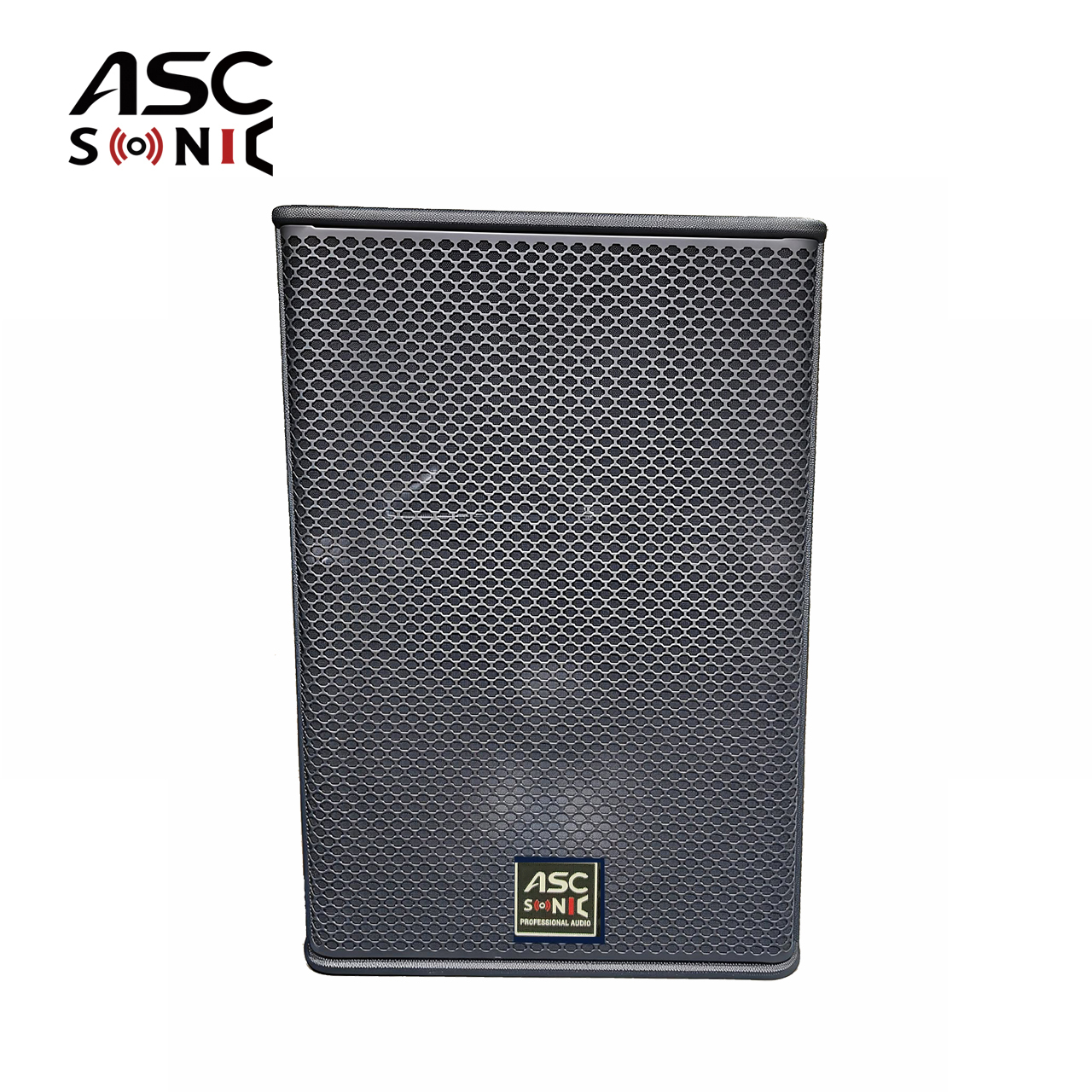

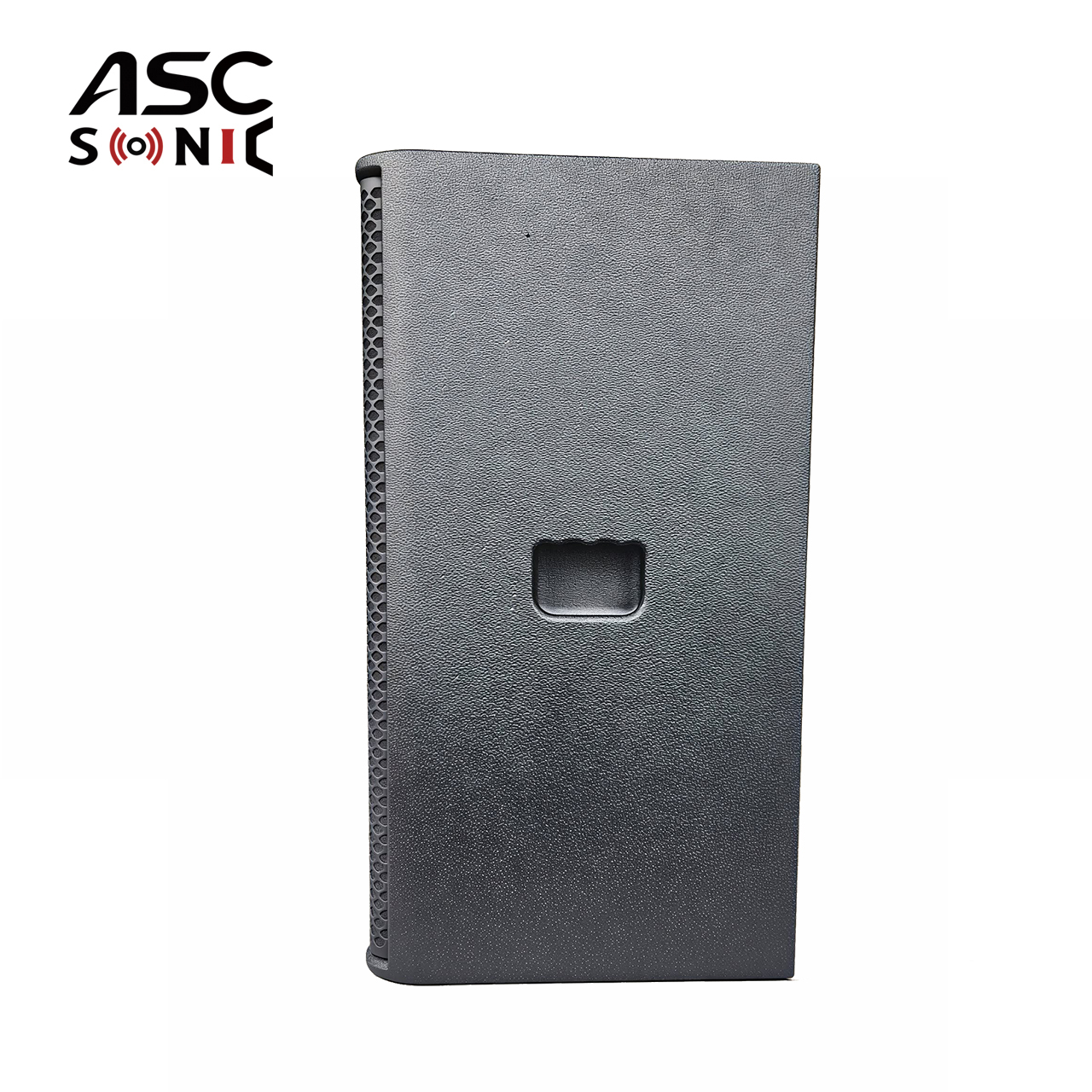

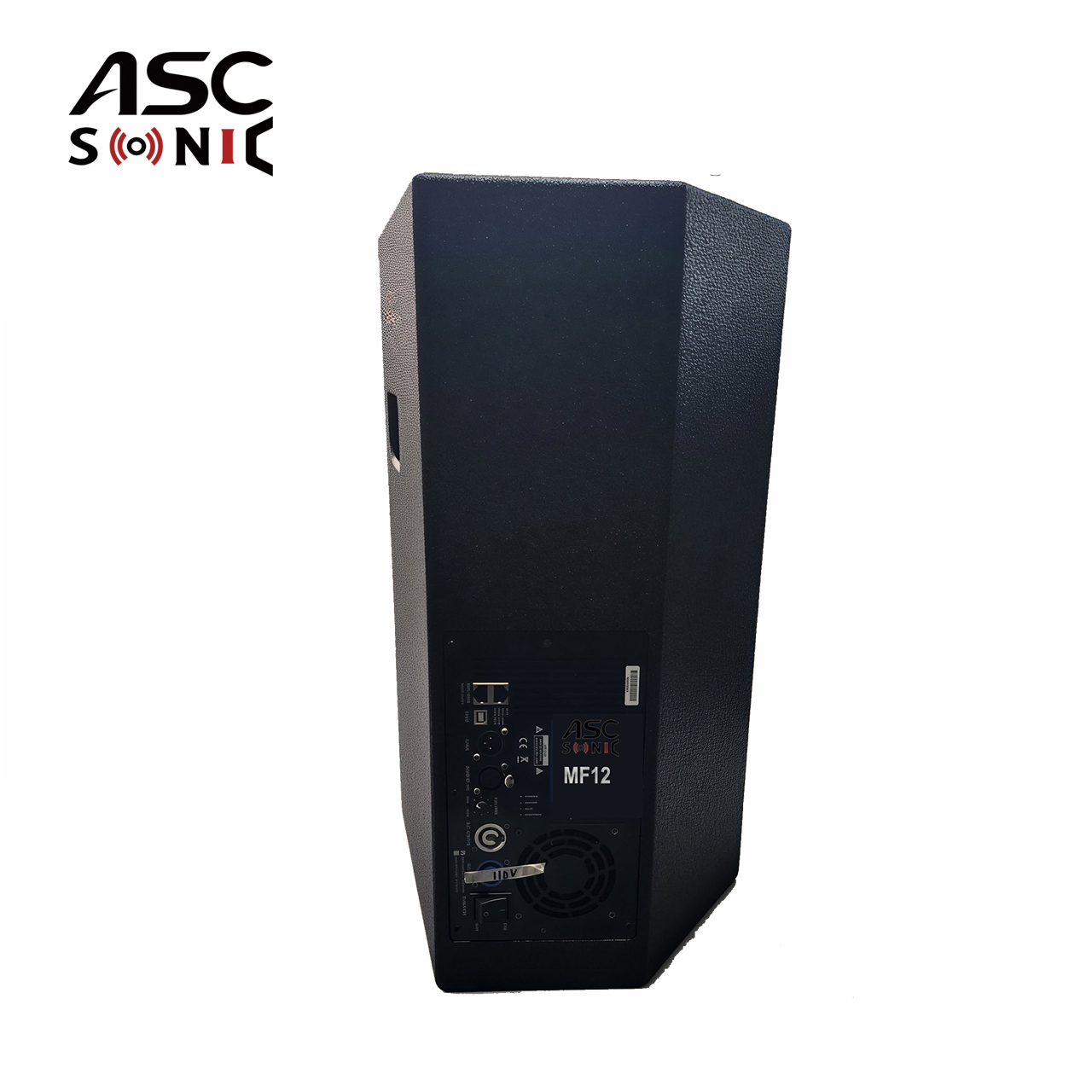

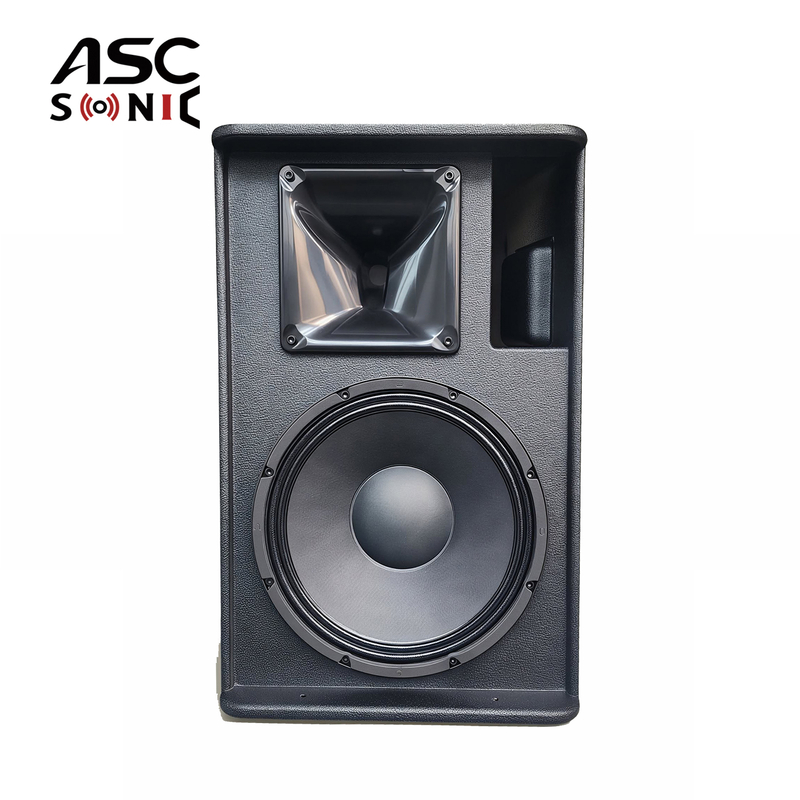

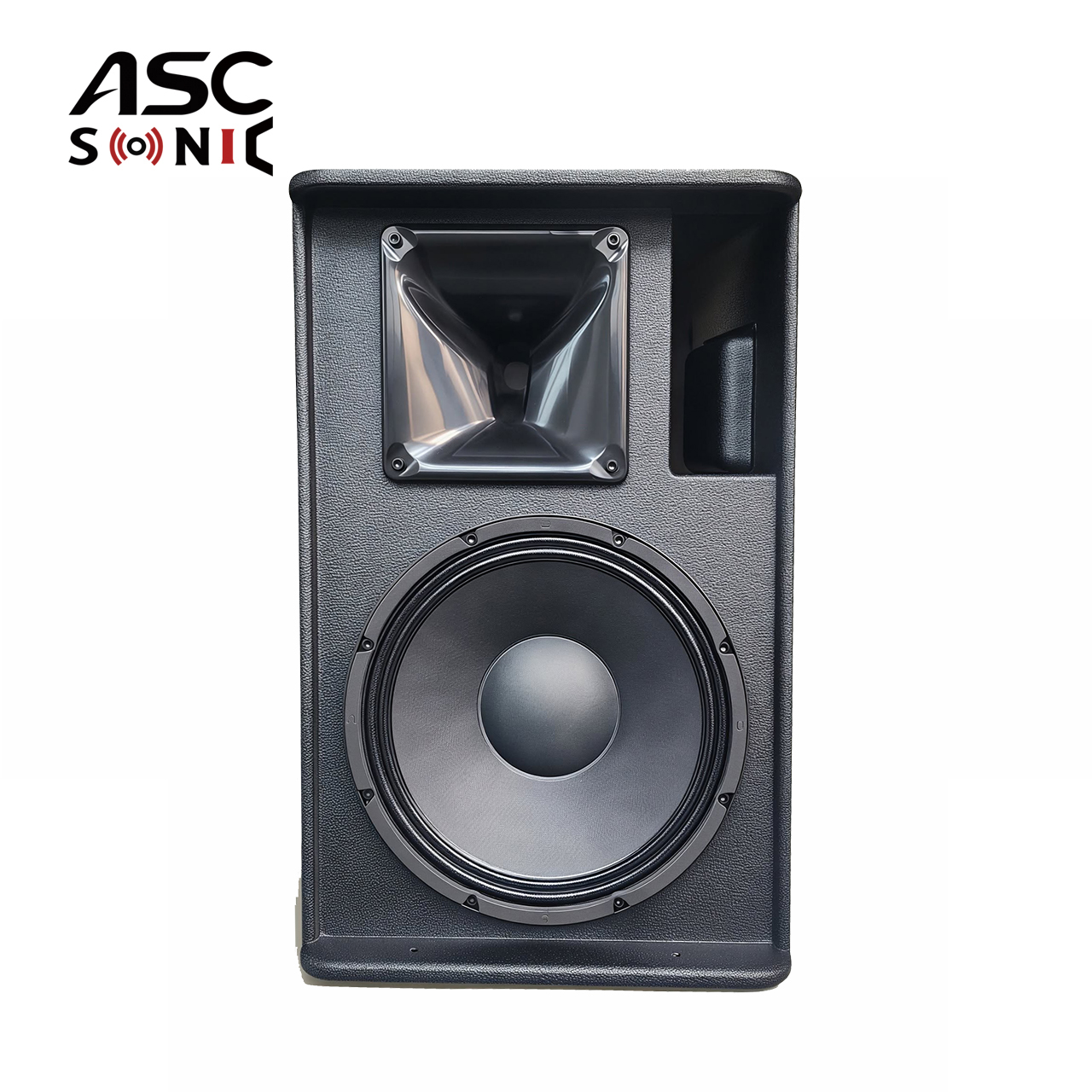

MF12 is a professional 12-inch full-range loudspeaker designed for live sound, mobile DJs, houses of worship, conference venues, and rental applications.
Featuring clear vocal reproduction, balanced frequency response, and reliable performance, the MF12 is suitable for both portable and fixed installation sound systems. Its compact cabinet design makes transportation, setup, and deployment simple and efficient.
Key Features
Professional 12-inch full-range speaker
Clear and natural sound reproduction
Powerful output with excellent speech intelligibility
Durable plywood cabinet construction
Protective steel grille design
Lightweight and easy to transport
Suitable for indoor and outdoor applications
Ideal for rental and installation projects
Applications
Specification
Model | MF12 |
Frequency Response (±3 dB) | 55 Hz - 20 kHz |
Sensitivity (1w/1m) | 100 dB SPL |
Long-term SPL | 122dB |
Maximum SPL | 128 dB |
Nominal Impedance | 8ohms |
Power rated(rms) | 400 watts |
Peak Power handling | 800 watts |
Nominal Dispersion | 90 °H x 50 °V |
Powered Version | Ascsonic Audio plate amplifier |
Dimensions (H x W x D) | 559 mm x 395 mm x 310 mm |
Enclosure Material | 15mm plywood |
Surface Finished | black catalyzed polyurethane paint |
Grille | 1.5mm black perforated steel framed mounted black acoustic foam |
Net weight | 19kg / 22.5kg powered |
Low Frequency Driver | 1×12 inch |
High Frequency Driver | 1×2 inch |
Input Connectors | Neutrik NL4MPX2 |
