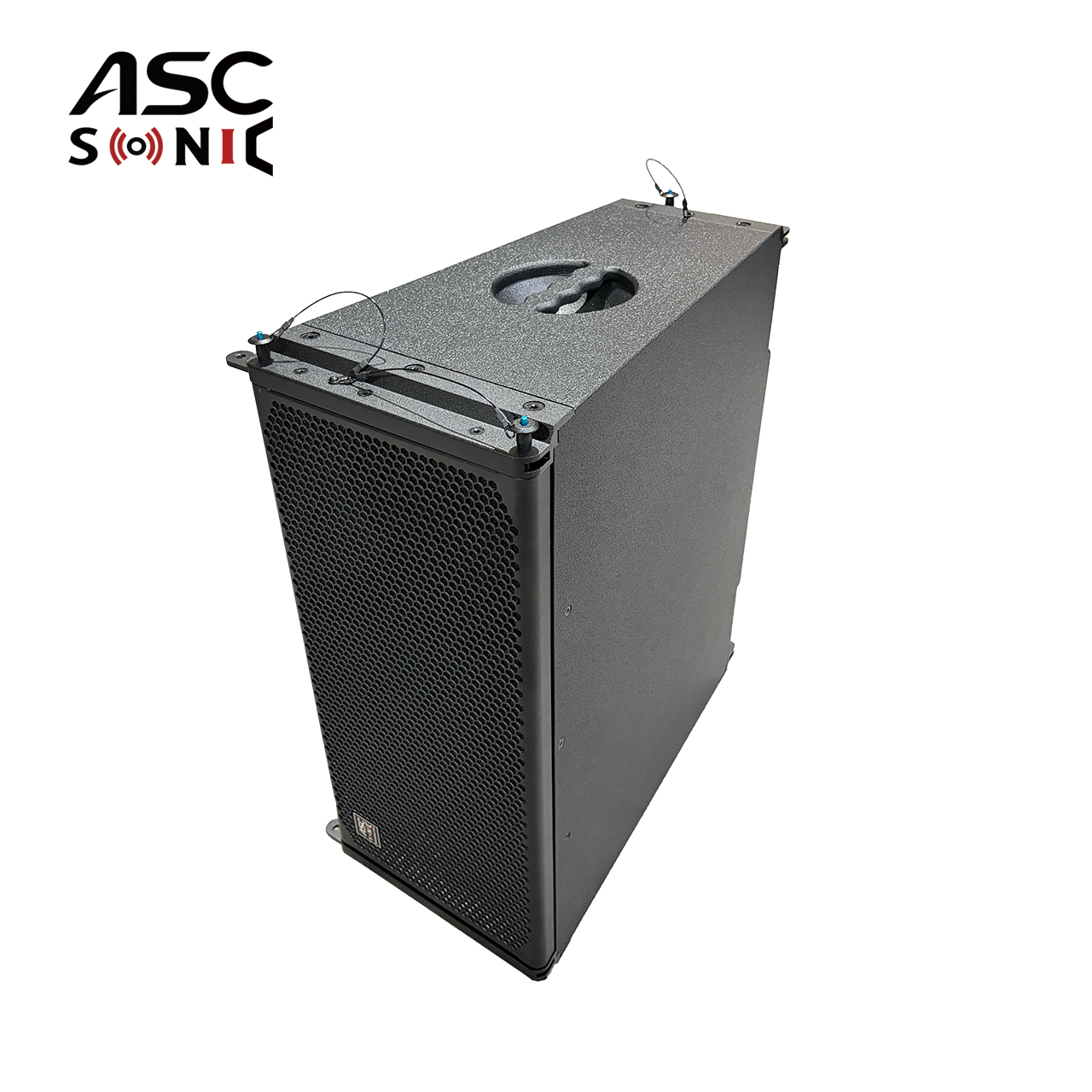

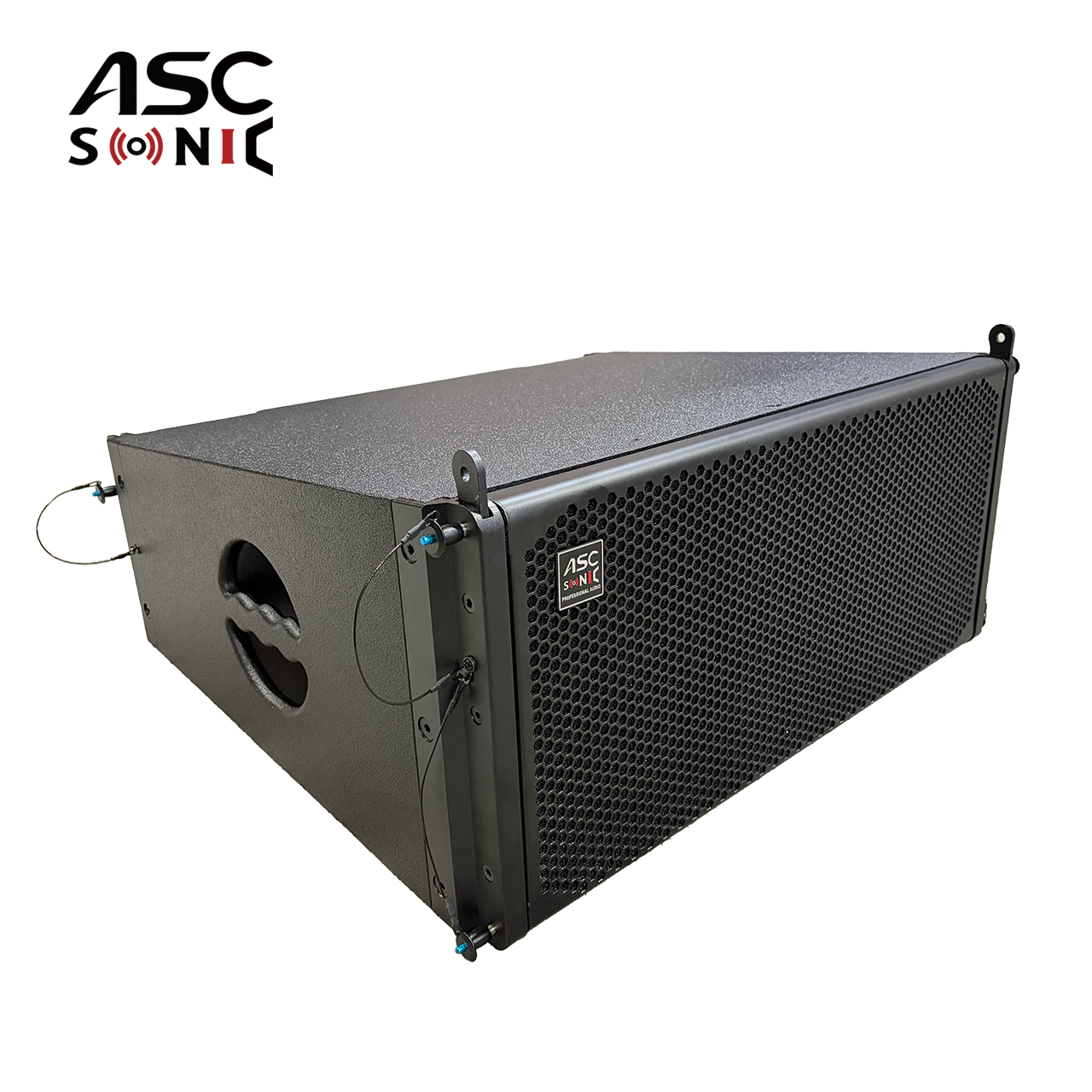

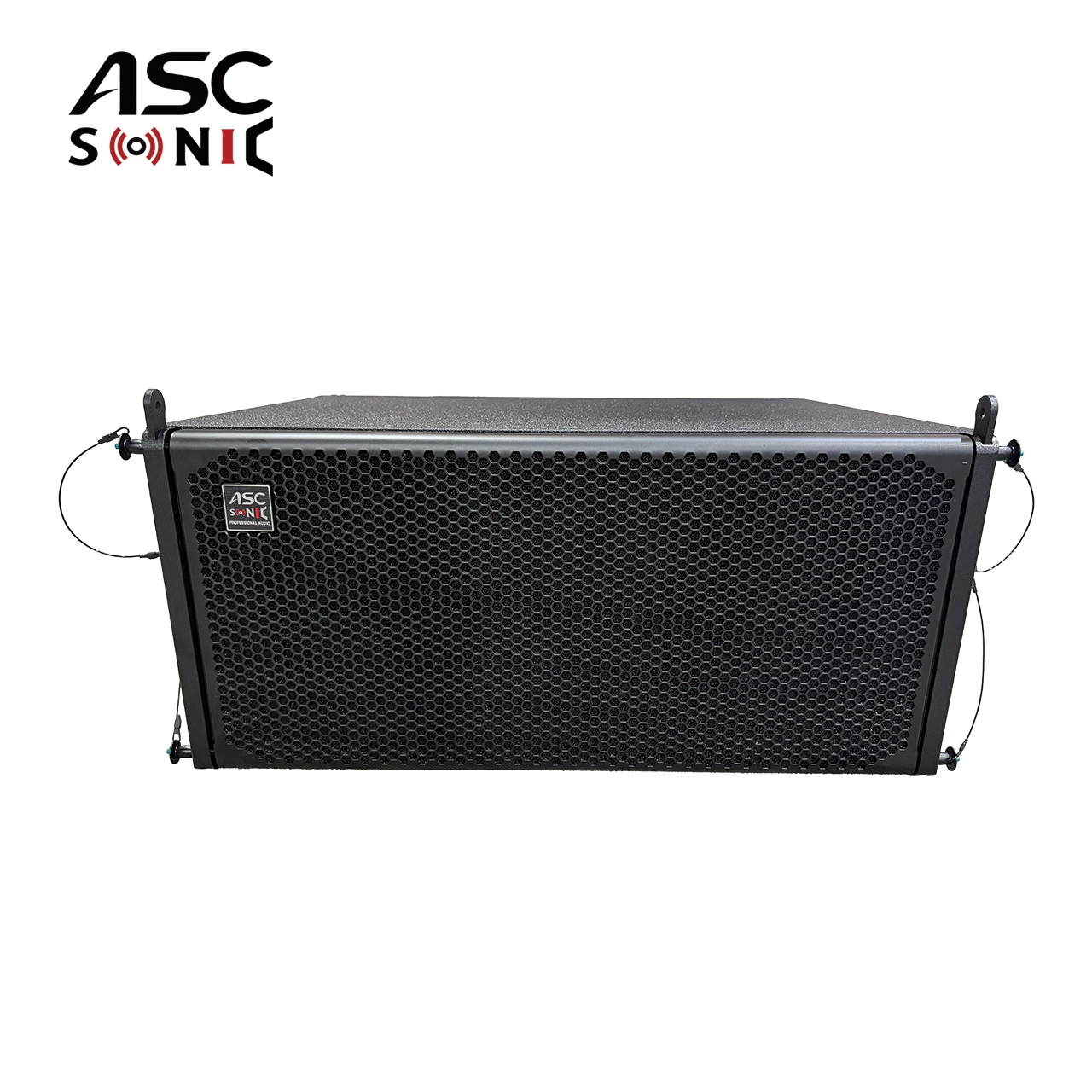

The ASCSONIC AUDIO LA-310P is a self-powered three-way line array speaker developed for professional sound reinforcement. Designed for live events, touring productions and fixed installations, it combines low-, mid- and high-frequency drivers in one enclosure with an integrated DSP amplifier module.
For PA rental companies and system integrators, the LA-310P offers an active loudspeaker option for projects that require a compact line array format, high output capability and onboard system processing. Its integrated amplification reduces the need for separate external amplifier channels for each speaker enclosure, helping simplify equipment planning and system deployment.

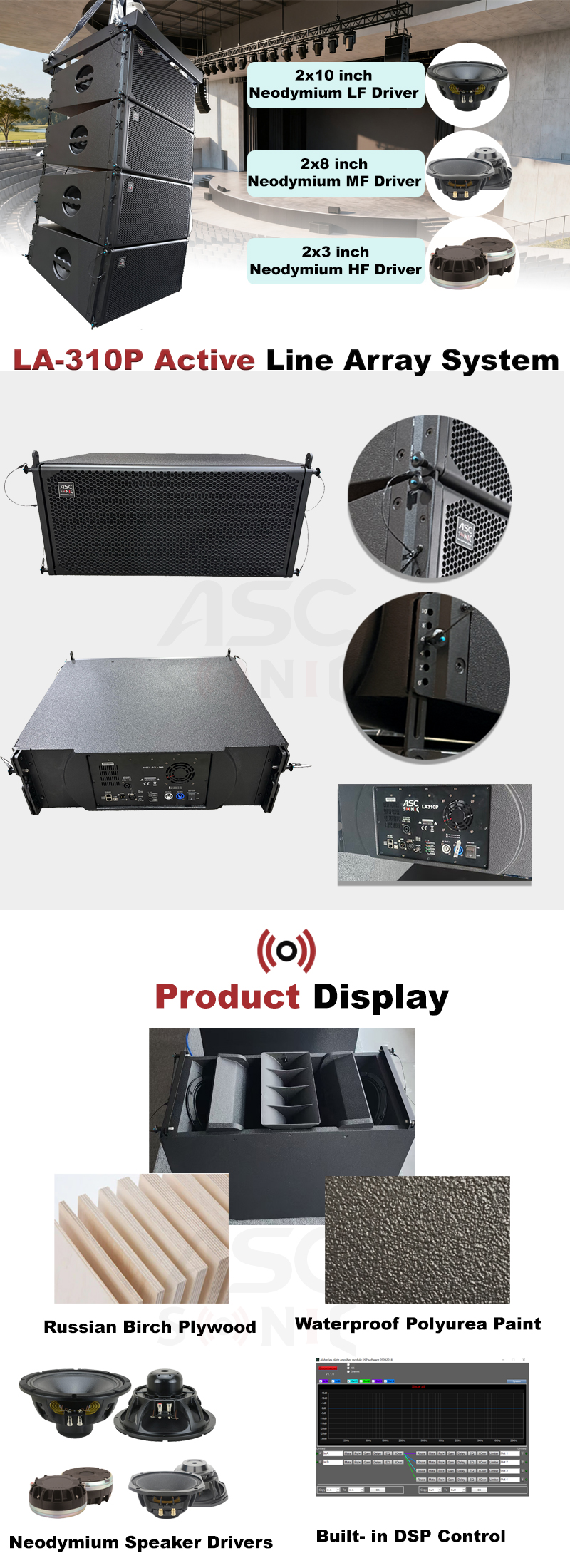

The LA-310P uses a dedicated multi-driver configuration to reproduce different frequency ranges. Two 10-inch neodymium woofers handle low frequencies, while two 8-inch neodymium midrange drivers and two 3-inch neodymium high-frequency drivers support midrange detail and high-frequency reproduction.
This configuration is designed to deliver a balanced presentation for music and speech reinforcement. It can be considered for touring PA systems, live concerts, outdoor events and entertainment venues where consistent sound coverage and sufficient output are important.
Three-way active line array speaker design
Dual 10-inch neodymium low-frequency drivers
Dual 8-inch neodymium midrange drivers
Dual 3-inch neodymium high-frequency drivers
Built-in two-channel DSP plate amplifier module
Published maximum SPL: 141 dB
Published frequency range: 60 Hz–18 kHz
Birch plywood enclosure with polyurea coating

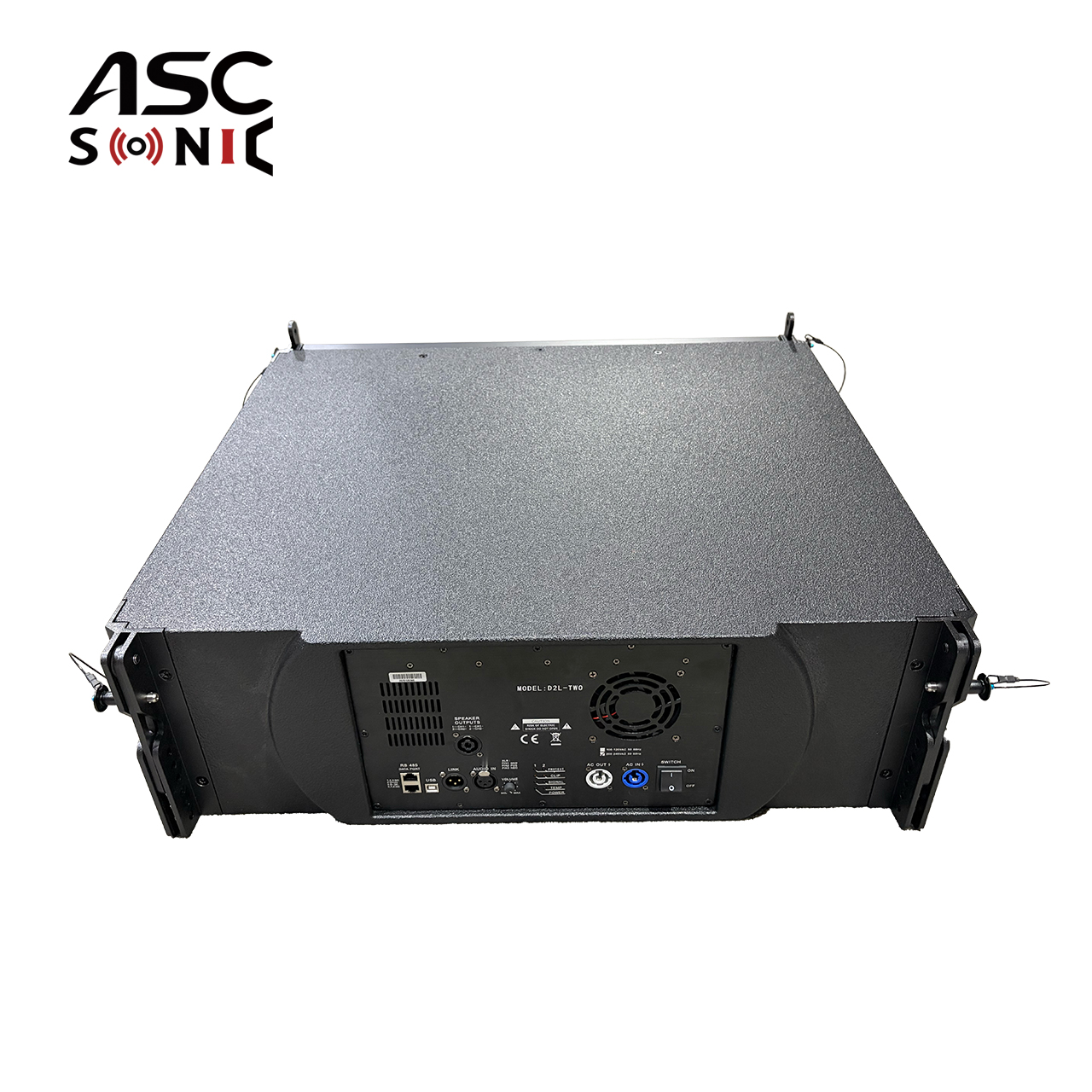

The LA-310P incorporates a DSP plate amplifier module, bringing amplification and digital signal processing into the loudspeaker enclosure. Depending on the supported DSP configuration, processing can be used to adjust system response, crossover behavior and protection settings for different operating conditions.
For rental technicians, onboard processing can help streamline system setup and reduce reliance on separate external processing equipment. For installation projects, the active design provides another option when planning the signal path, amplification and loudspeaker control.
Before deployment, users should confirm the available DSP functions, control method, input and output connections, and preset options for their specific amplifier version.
The enclosure is constructed from birch plywood and finished with a polyurea coating. Combined with neodymium drivers, this construction is intended for professional loudspeaker applications where cabinet durability and equipment handling are important considerations.
The LA-310P can be evaluated for several types of projects:
PA rental and touring: A self-powered line array option for event companies building systems for concerts, performances and temporary sound reinforcement.
Live events and festivals: Suitable for system planning where strong output and controlled loudspeaker coverage are required.
Fixed installations: Can be considered for entertainment venues and other professional audio projects, subject to room acoustics, mounting requirements and system design.
System integrators: Provides an active three-way loudspeaker option for projects that benefit from integrated amplification and DSP processing.
The number of cabinets, array configuration, subwoofer pairing and rigging method should be determined according to the venue, audience area, required SPL and manufacturer-approved deployment guidance.
| Parameter | Specification |
|---|---|
| Model | LA-310P |
| Speaker type | Three-way active line array |
| Low-frequency drivers | 2 × 10-inch neodymium |
| Mid-frequency drivers | 2 × 8-inch neodymium |
| High-frequency drivers | 2 × 3-inch neodymium |
| Frequency range | 60 Hz–18 kHz |
| Maximum SPL | 141 dB |
| Coverage angle | 110° × 10° (H × V) |
| Amplifier module | Integrated two-channel DSP plate amplifier |
| Nominal impedance | 8 Ω LF / 8 Ω MHF, as listed |
| Cabinet material | Birch plywood |
| Cabinet finish | Polyurea coating |
| Dimensions (H × W × D) | 310 × 700 × 615 mm |
| Net weight | 45 kg |
Selecting a line array requires more than comparing wattage figures. Venue dimensions, audience coverage, throw distance, deployment height, array angles and low-frequency requirements all influence the final system configuration.
Contact ASCSONIC AUDIO to discuss the LA-310P for your next rental inventory or installation project. Share your application, target audience size, venue dimensions, required quantity and destination country so our team can help evaluate a suitable configuration and provide current pricing and lead time.
ASCSONIC AUDIO supports professional loudspeaker projects and OEM/ODM discussions for customers seeking solutions tailored to their market requirements.
