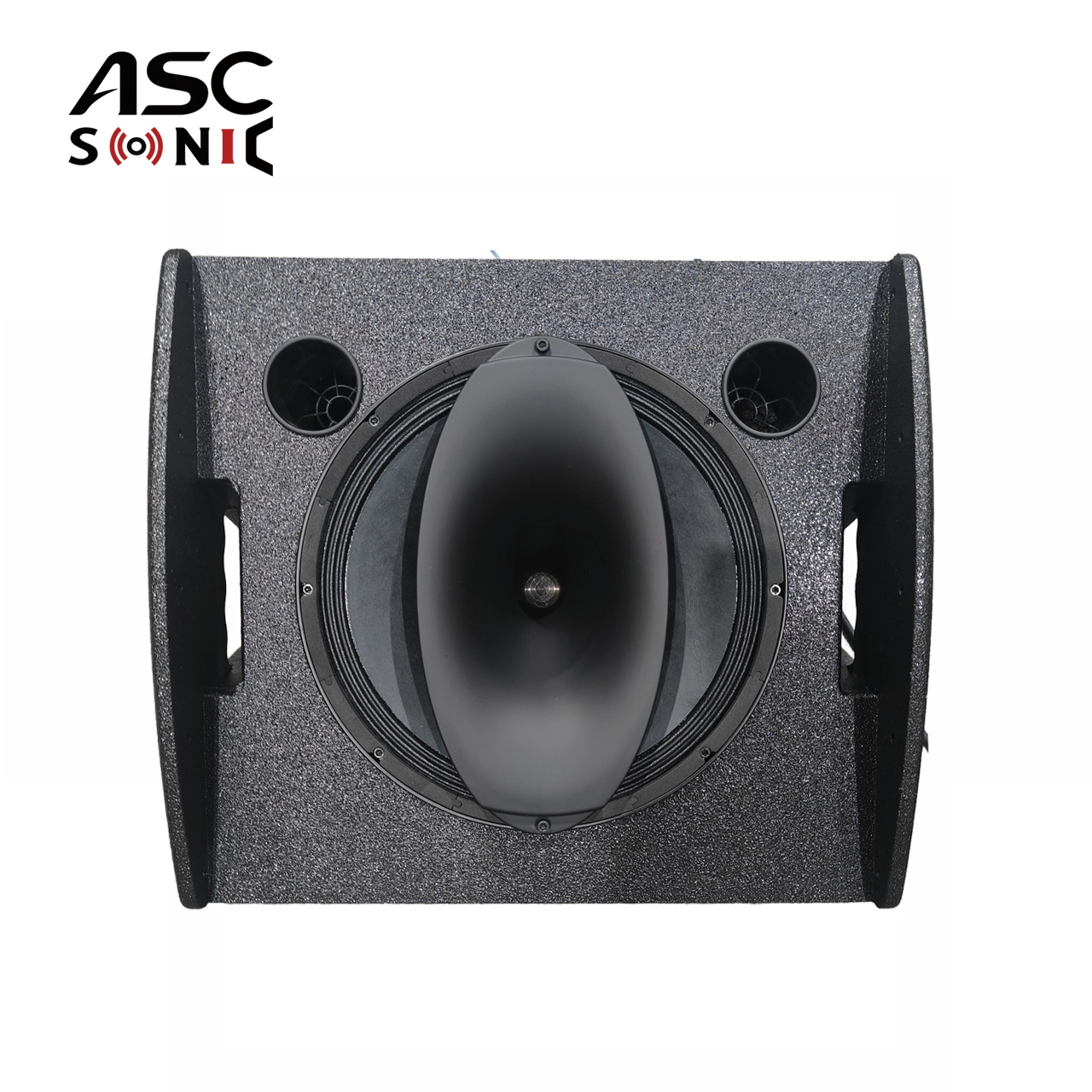

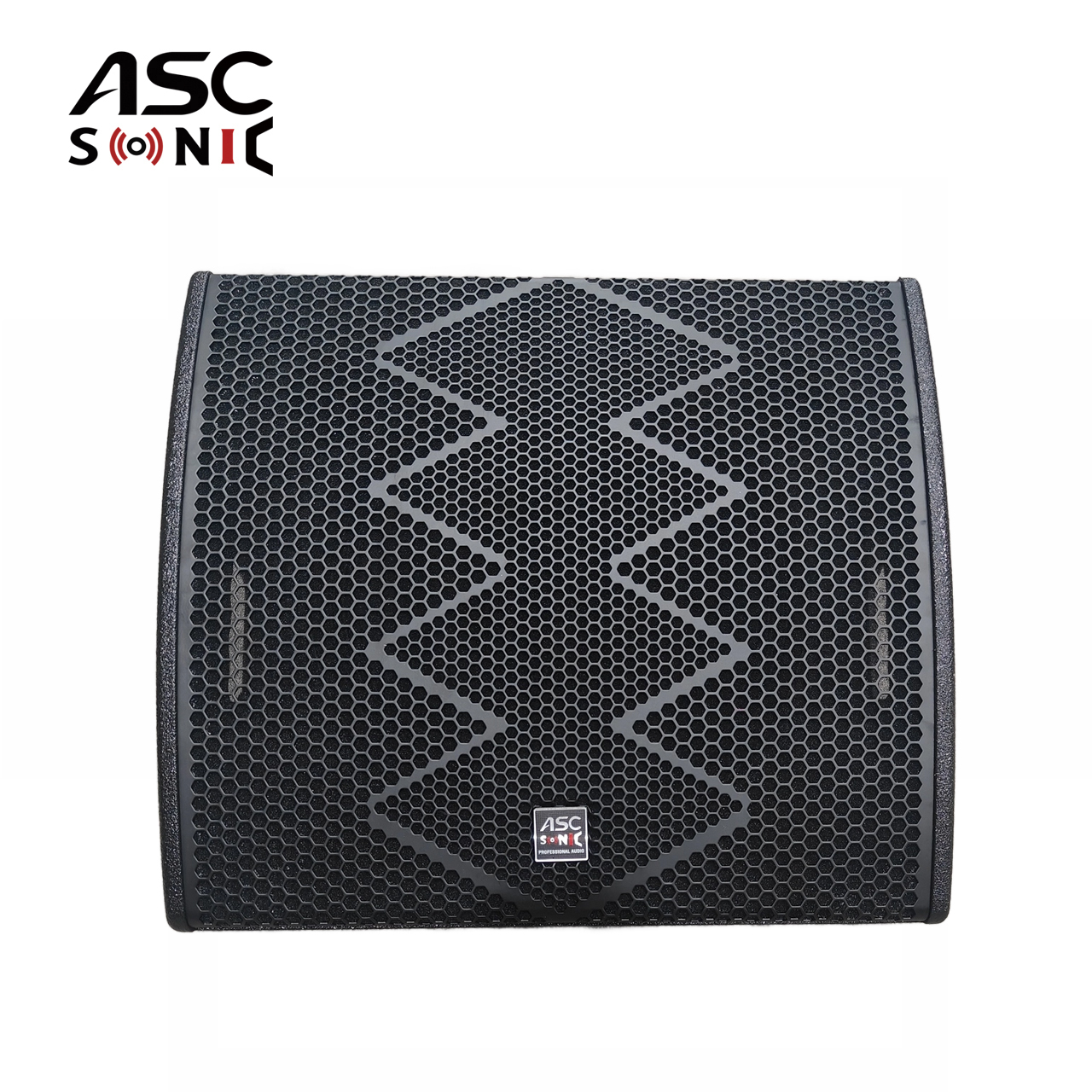

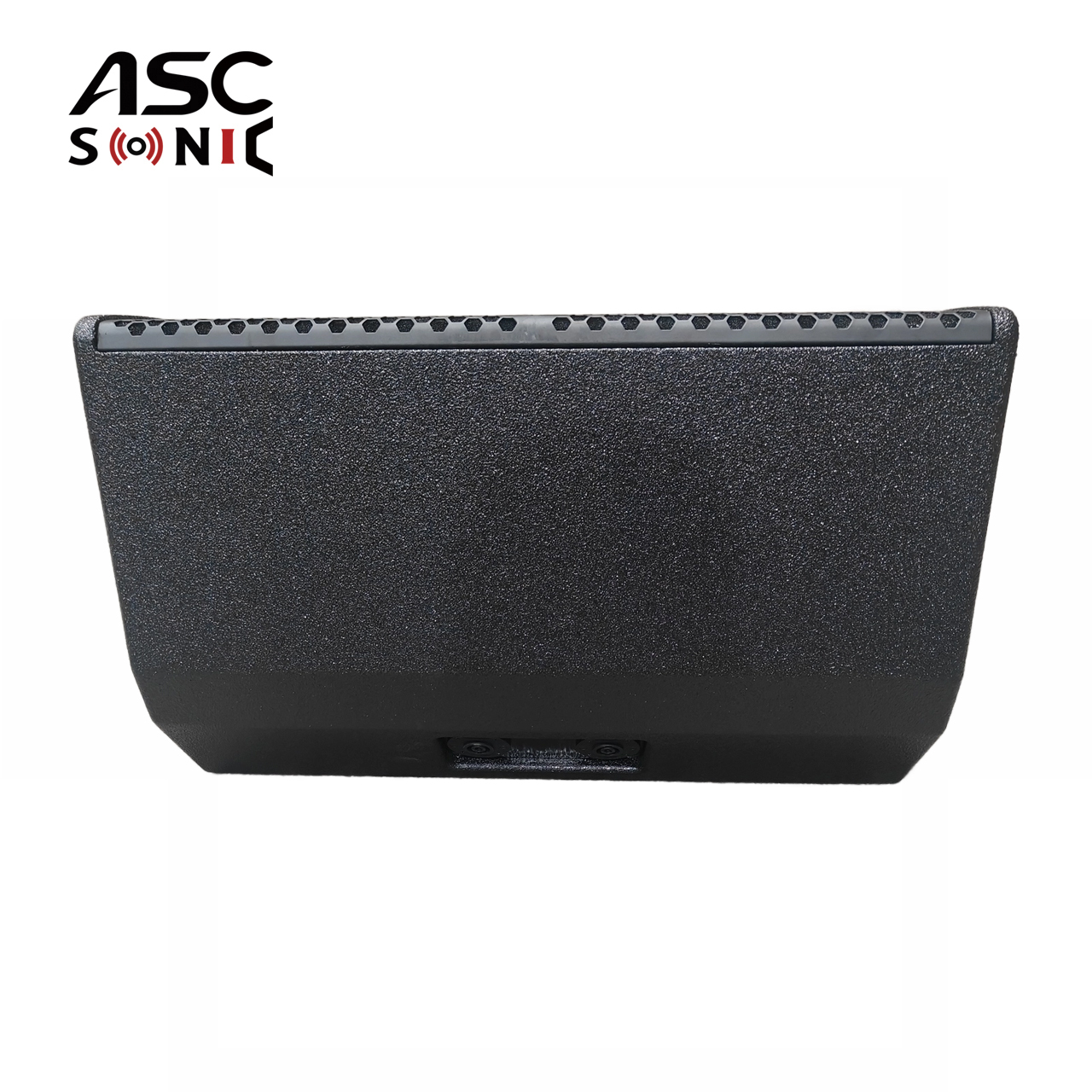

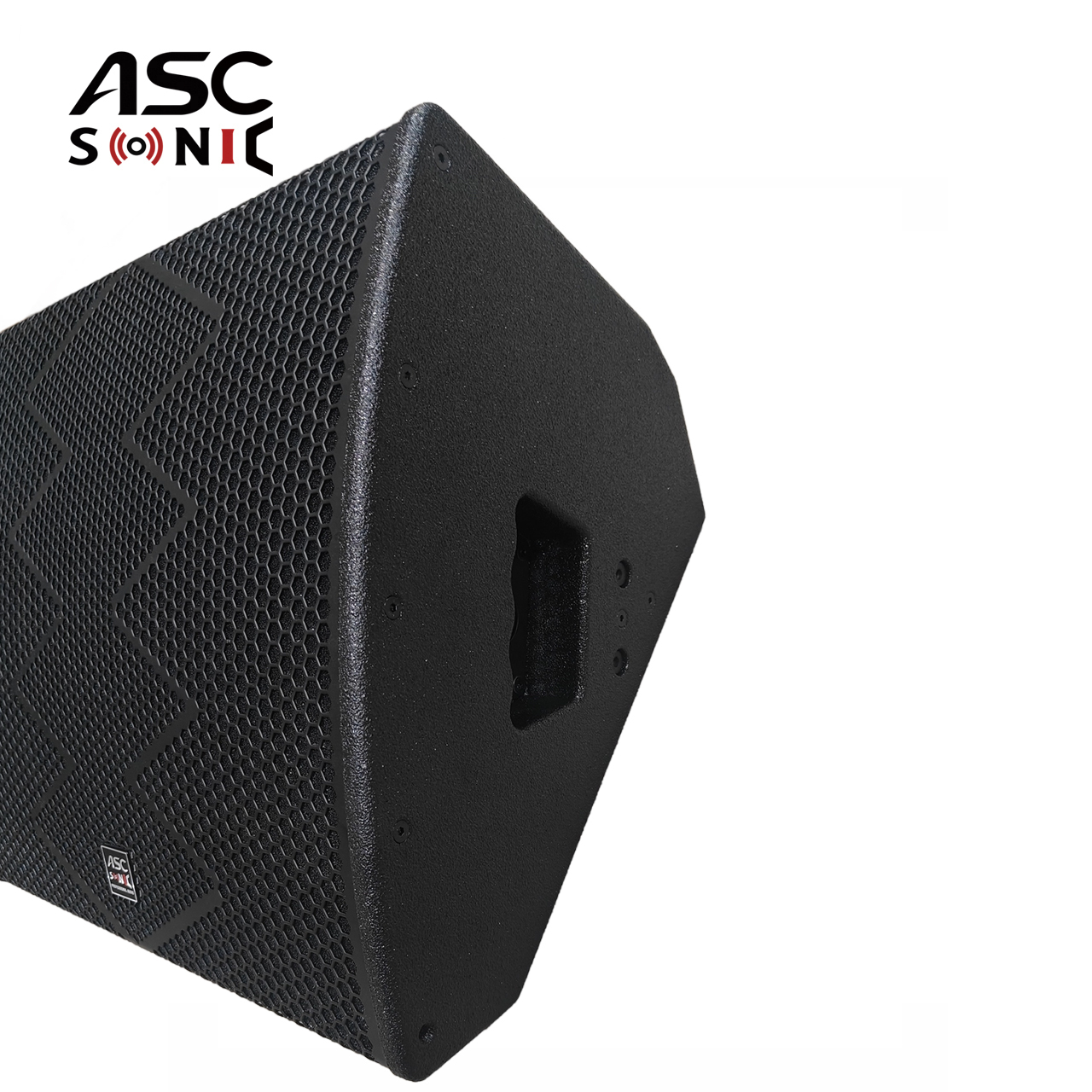

The MC15 is a premium passive stage monitor designed to deliver outstanding vocal clarity, accurate monitoring, and reliable performance for demanding live productions. Equipped with a 15-inch neodymium low-frequency driver and a 3-inch voice coil coaxial compression driver, the MC15 provides smooth frequency response, excellent phase coherence, and consistent sound coverage across the performance area. Its coaxial design creates a natural listening experience while helping performers hear every detail with confidence.
Built with a rugged birch plywood enclosure and finished with a durable textured coating, the MC15 is engineered to withstand frequent transportation and intensive touring use. The low-profile wedge cabinet minimizes its stage footprint while maintaining high acoustic output, making it ideal for concerts, theaters, churches, clubs, and rental companies. Product features and specifications are based on the original M4 platform with renamed branding and reworked content
Key Features
15-inch neodymium woofer for powerful and accurate low frequencies
Coaxial HF compression driver with 3-inch voice coil for clear vocal reproduction
Symmetrical sound dispersion for consistent monitoring across the stage
High SPL performance suitable for professional live sound reinforcement
Compact wedge design for easy stage placement
Premium birch plywood cabinet with wear-resistant coating
Speakon connectors for secure and reliable signal transmission
Perfect for touring productions, houses of worship, theaters, festivals, and rental applications
Specification:
Frequency response (–5 dB standard) | 55 Hz - 17 kHz 4 |
Max. sound pressure (1m) | 134 dB7 / 135 dB 17 |
Configuration | 2-way stage monitor |
Nominal impedance | 8 Ω |
Power handling capacity (RMS/peak 10 ms) | 400/1600 W |
Nominal dispersion angle (h x v) | 50° x 70° |
Components | 15" driver with neodymium magnet |
Connections | 2 x NL4 |
Dimensions (H x W x D) | 363 x 580 x 505 mm |
Weight | 20 kg |
Applications
Live Concerts
Stage Monitoring
Houses of Worship
Theaters
Corporate Events
Rental & Touring Systems
Clubs and Music Venues
Ascsonic Audio also provides OEM and ODM manufacturing services, allowing customers to customize logos, finishes, connectors, and acoustic tuning to meet specific project
