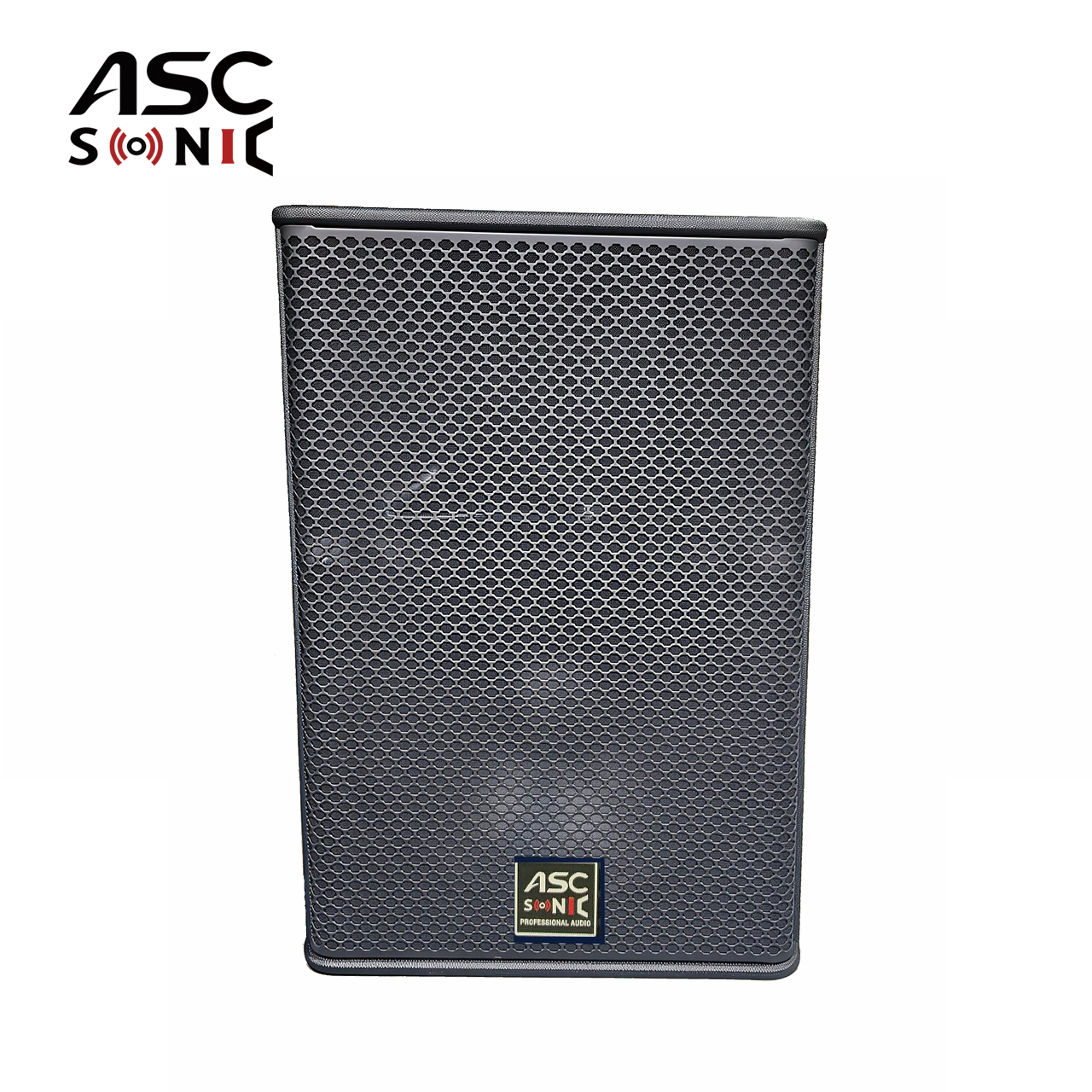

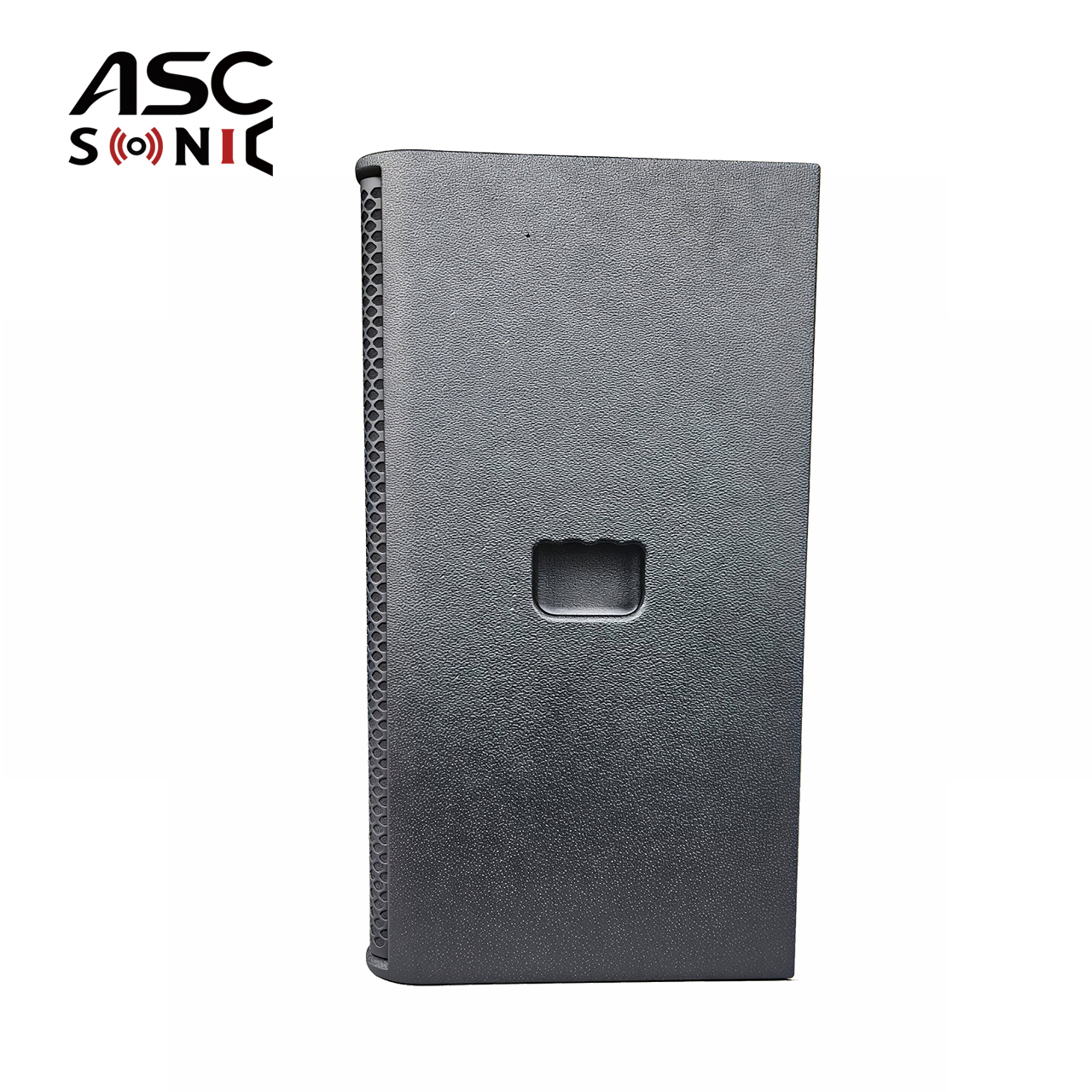

The ASCSONIC AUDIO MF8 is a compact 8-inch passive stage monitor designed to deliver accurate sound reproduction and excellent vocal clarity for performers, presenters, musicians, and worship leaders.
Its lightweight enclosure and low-profile monitor angle make it an ideal solution for stages where space is limited but reliable monitoring is essential.
Key Features
Compact 8-inch Stage Monitor Design
Clear Vocal and Instrument Monitoring
Wide Coverage for Consistent Sound
Lightweight and Easy to Transport
Premium Birch Plywood Cabinet
Durable Polyurea Protective Coating
Professional NL4 Connections
Suitable for Portable and Fixed Installations
Perfect For
Why Choose MF8?
The MF8 delivers focused stage monitoring with excellent speech intelligibility and balanced frequency response. Its compact footprint allows flexible placement on crowded stages while providing performers with reliable monitoring throughout the event.
Whether used for live bands, worship teams, conferences, or corporate events, the MF8 offers professional sound quality in a lightweight and durable package.
Specification
| Model | MF8 |
| Frequency Response (±3 dB) | 69 Hz - 20 kHz |
| Sensitivity (1w/1m) | 96 dB SPL |
| Long-term SPL | 117dB |
| Maximum SPL | 120 dB |
| Nominal Impedance | 8ohms |
| Power rated(rms) | 200 watts |
| Peak Power handling | 400 watts |
| Nominal Dispersion | 90 °H x 50 °V |
| Powered Version | Ascsonic Audio plate amplifier |
| Dimensions (H x W x D) | 415 mm x 255 mm x 220 mm |
| Enclosure Material | 15mm plywood |
| Surface Finished | black catalyzed polyurethane paint |
| Grille | 1.5mm black perforated steel framed mounted black acoustic foam |
| Net weight | 10kg / 13kg powered |
| Low Frequency Driver | 1×8 inch |
| High Frequency Driver | 1×1.5 inch |
| Input Connectors | Neutrik NL4MPX2 |
