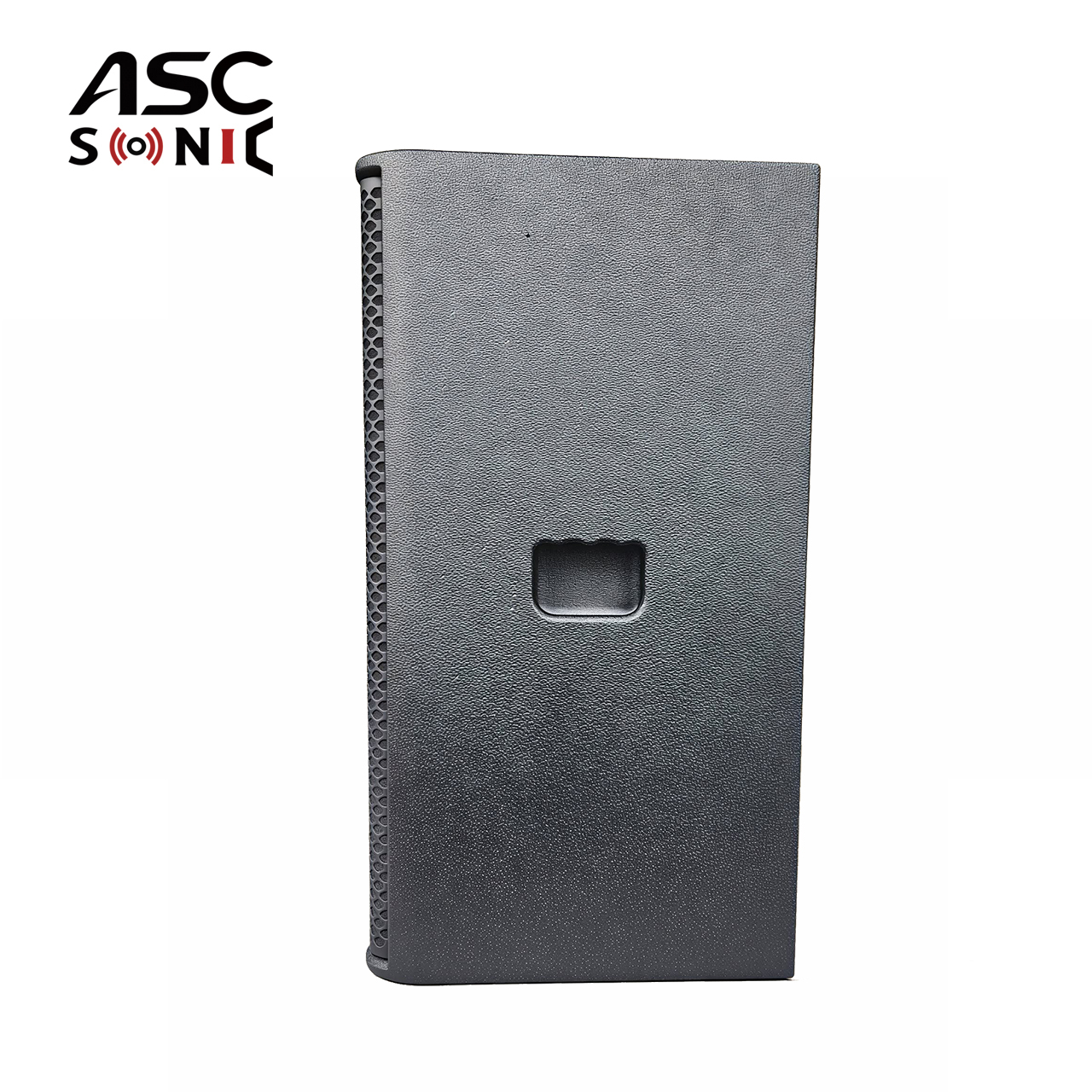

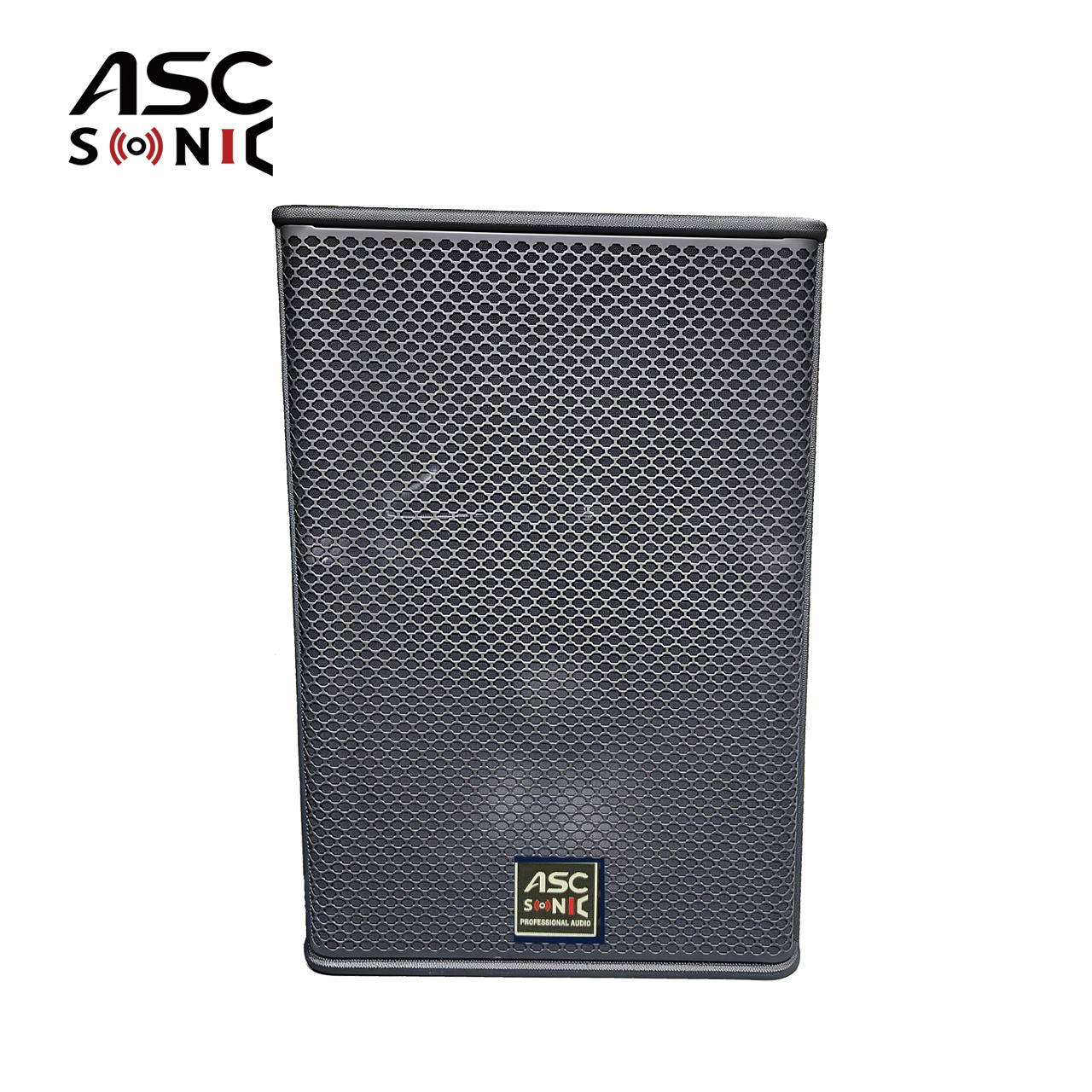

The MF10 is a versatile 10-inch passive loudspeaker engineered for professional sound reinforcement applications. Combining powerful output, wide coverage, and a compact cabinet design, the MF10 delivers clear vocals, detailed midrange response, and controlled high frequencies for both speech and music reproduction.
Whether used as a front-of-house speaker, stage monitor, side fill, or portable PA system, the MF10 provides reliable performance for rental companies, houses of worship, conference venues, schools, entertainment venues, and mobile DJs.
Key Features
High-Efficiency 10" Professional Driver
The MF10 is equipped with a premium 10-inch low-frequency driver and a 2 inch high-performance compression driver, delivering excellent vocal clarity and balanced sound reproduction across the entire frequency range.
Flexible FOH and Stage Monitor Configuration
The cabinet geometry allows the MF10 to be deployed as either a main PA speaker or a stage monitor, making it an ideal solution for rental inventories and multi-purpose venues.
Wide Coverage Pattern
Designed to provide consistent sound dispersion, the MF10 ensures even coverage throughout the audience area while maintaining excellent speech intelligibility.
Compact Yet Powerful
Its lightweight and space-saving design makes transportation and installation easy while still providing impressive SPL performance for small to medium-sized venues.
Rugged Touring Construction
Constructed from strong plywood and finished with a durable coating, the MF10 is built to withstand the demands of touring, rental, and fixed installation environments.
Applications
Live Sound Reinforcement
Stage Monitoring
Mobile DJ Events
Churches and Worship Centers
Conference Rooms
Schools and Auditoriums
Rental Audio Systems
Bars and Entertainment Venues
Front Fill and Side Fill Systems
Technical Specifications
System Type: 2-Way Passive Loudspeaker
Low Frequency Driver: 1 × 10" Professional Woofer
High Frequency Driver: 1 × 2 inch Compression Driver
Frequency Response: 65Hz – 20kHz
Sensitivity: 98dB SPL
Maximum SPL: 125dB
Nominal Impedance: 8 Ohms
Power Handling: 300W AES / 600W Peak
Dispersion: 90° × 50°
Enclosure Material: Premium Birch Plywood
Finish: Weather-Resistant Polyurethane Coating
Input Connectors: NL4 Compatible Connectors
