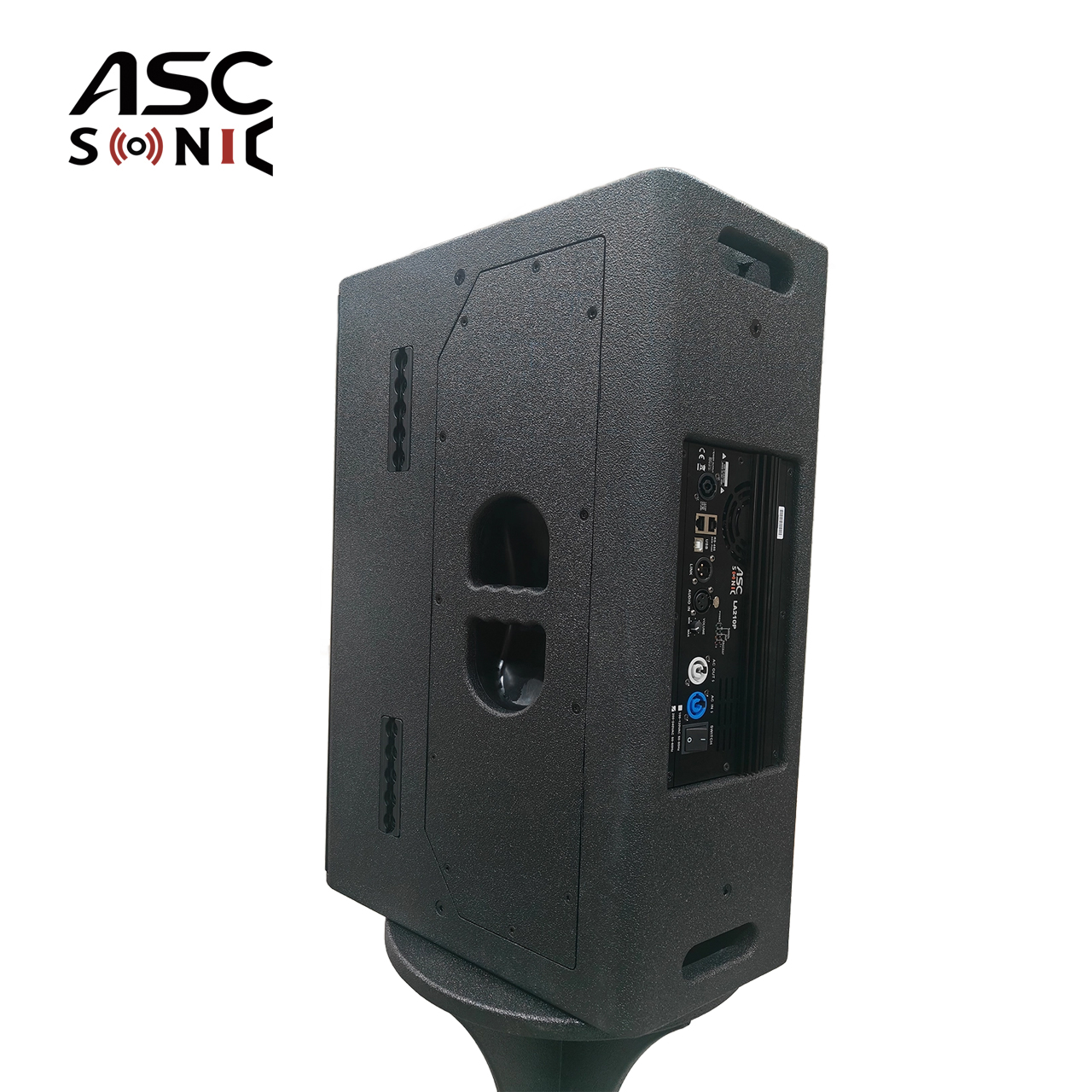

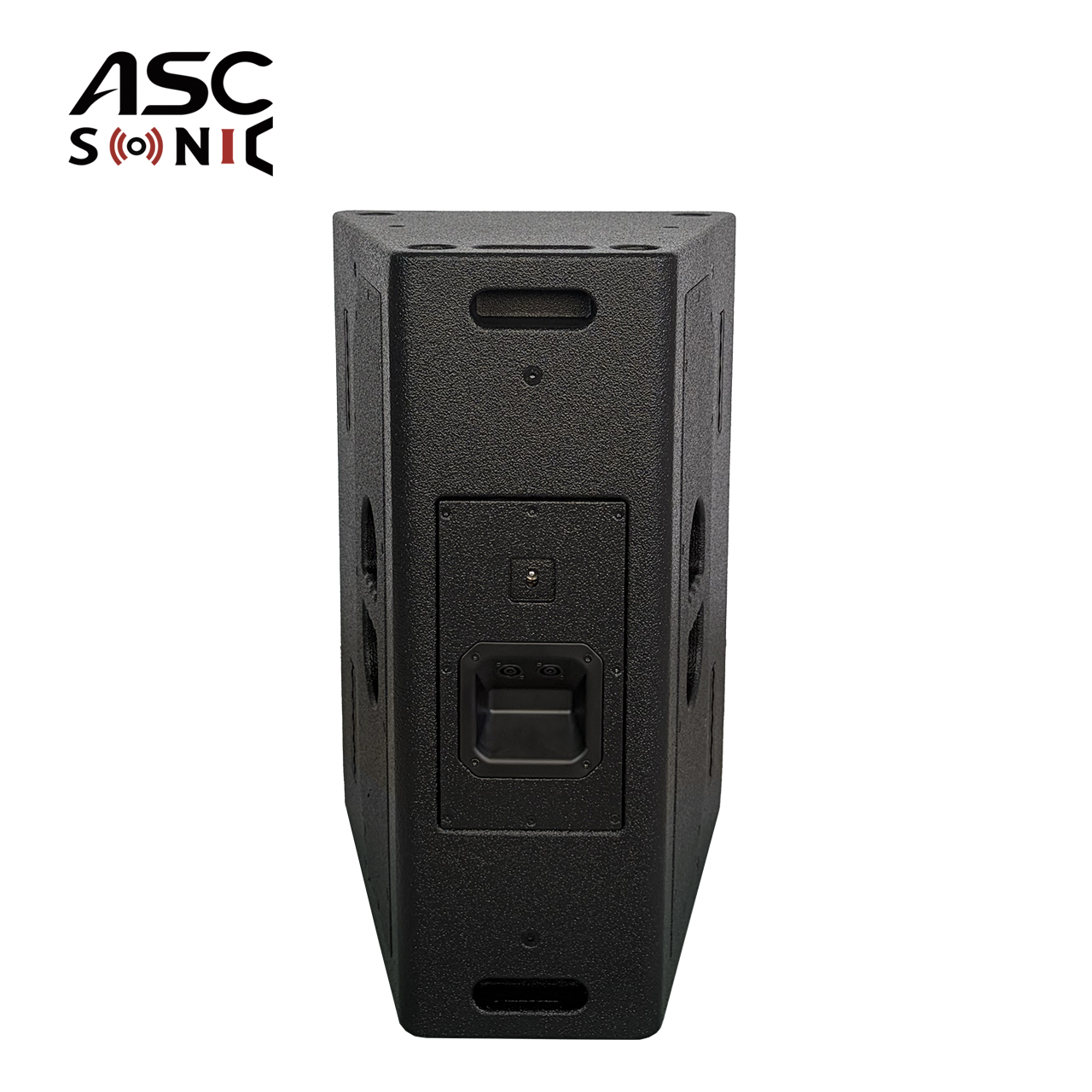

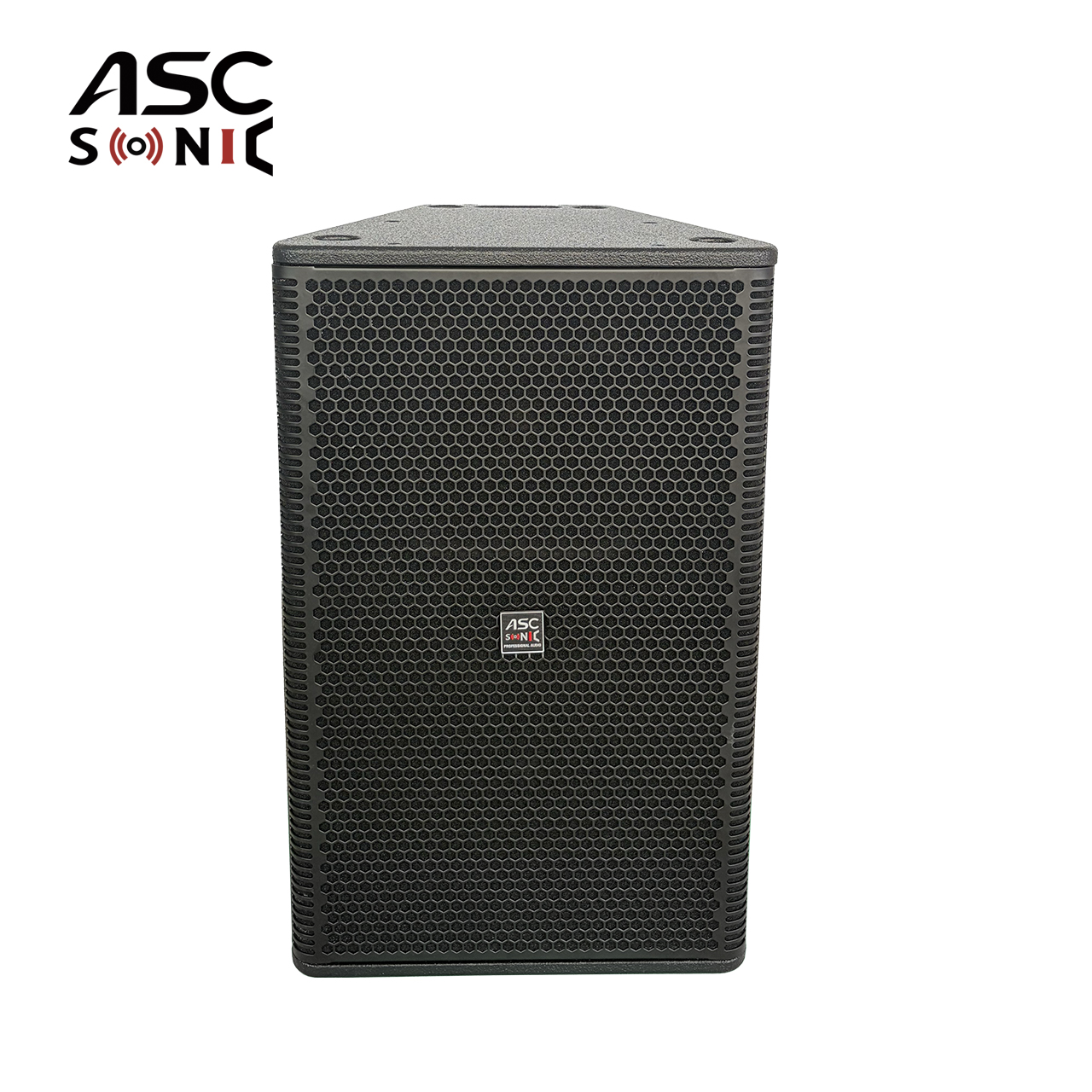

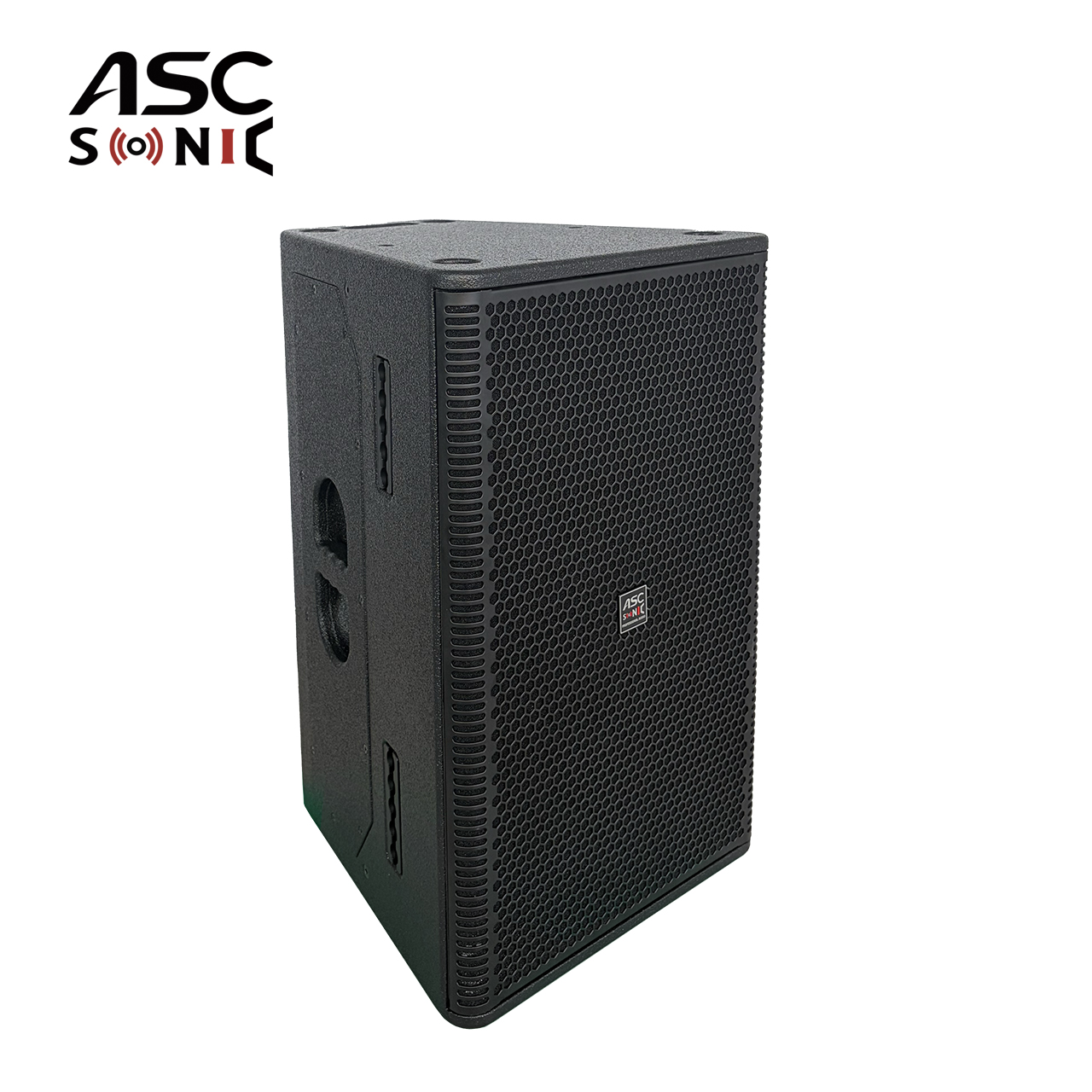

The Ascsonic Audio FX12P is a premium active point source loudspeaker designed for professional live sound reinforcement. Combining dual 12-inch high-efficiency neodymium woofers with a powerful 3-inch compression driver, the FX12 delivers exceptional output, accurate vocal reproduction, and impressive low-frequency performance from a compact enclosure.
Unlike traditional passive systems, the FX12P Active Speaker integrates a high-efficiency Class D DSP amplifier inside the cabinet, providing optimized crossover, speaker protection, EQ, delay, and limiter settings. This all-in-one design simplifies installation while ensuring consistent performance in every venue.
Built from durable CNC-machined birch plywood with a rugged polyurea finish, the FX12P is engineered for demanding touring applications, rental companies, houses of worship, theaters, nightclubs, and outdoor events.
Key Features
Built-in high-power Class D DSP amplifier
Dual 12-inch high-efficiency neodymium woofers
3-inch titanium compression driver for crystal-clear vocals
High SPL with outstanding dynamic performance
Advanced DSP for crossover, EQ, limiter and speaker protection
Premium birch plywood enclosure with durable polyurea coating
Compact design for easy transport and installation
Suitable for both portable touring and permanent installations
Applications
Specification
Model | FX12P |
Drivers | HF: 1x 3” voice coil LF: 2x 12”neodymium driver |
Frequency Response (±3 dB) | 65 Hz - 18 kHz |
Sensitivity (1w/1m) | 110 dB |
Nominal Impedance | 4 Ohms LF, 8 Ohms HF |
Power capacity program / peak | 1400 / 2400 W LF, 220 / 400 W HF |
SPL max / 1 m | 143dB |
Dimensions (W x D x H) | 706 x 440 x 440 mm |
Coverage (h x v) | 60° × 40° HORN |
Net weight | 33kg |
Input Connectors | NL4 1± |
Why Choose the FX12P?
The FX12P combines powerful acoustic performance with the convenience of an integrated DSP amplifier, eliminating the need for external amplification while reducing system complexity. Designed for professional users who demand reliability, high output, and excellent sound quality, the FX12 delivers consistent performance across speech reinforcement and live music applications.
