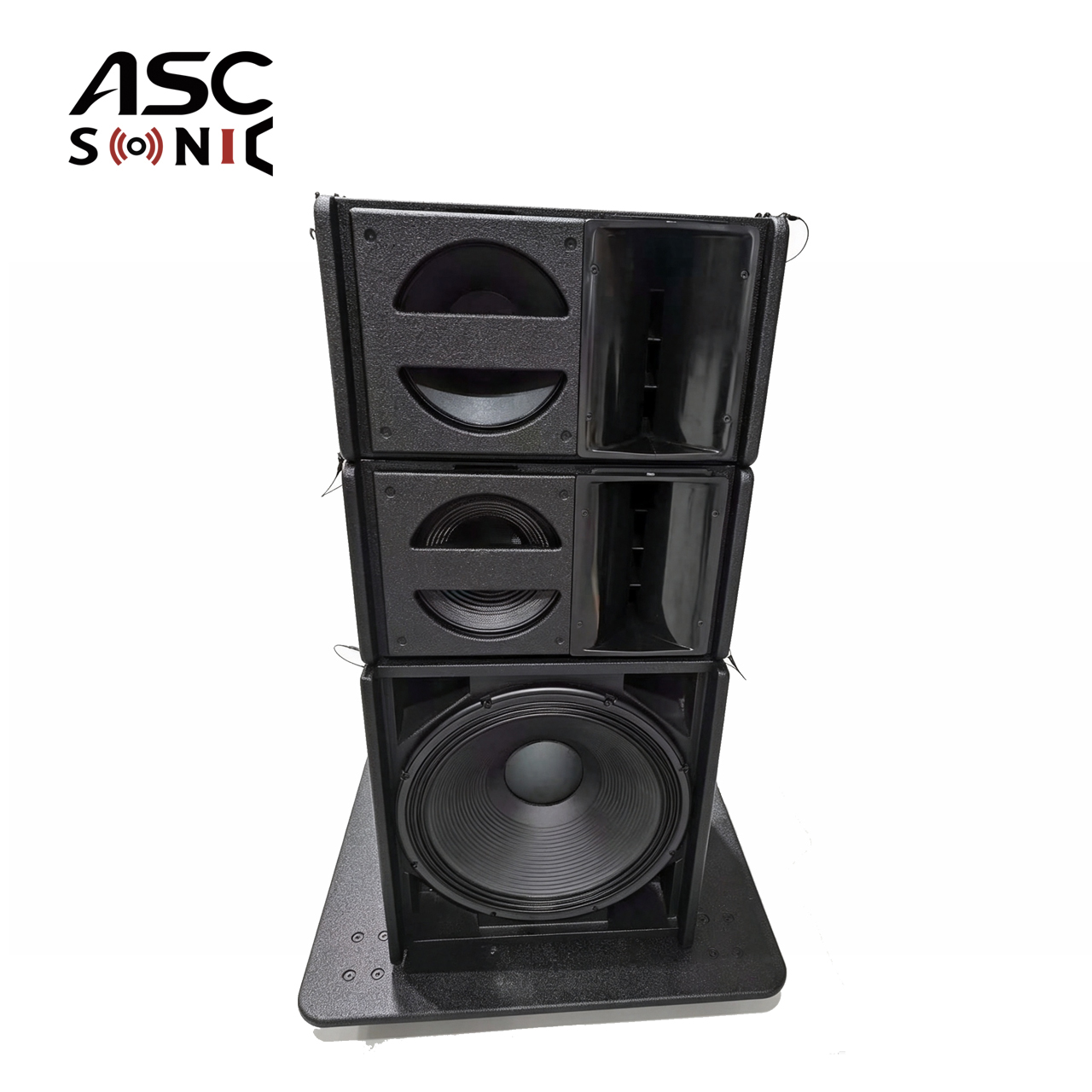

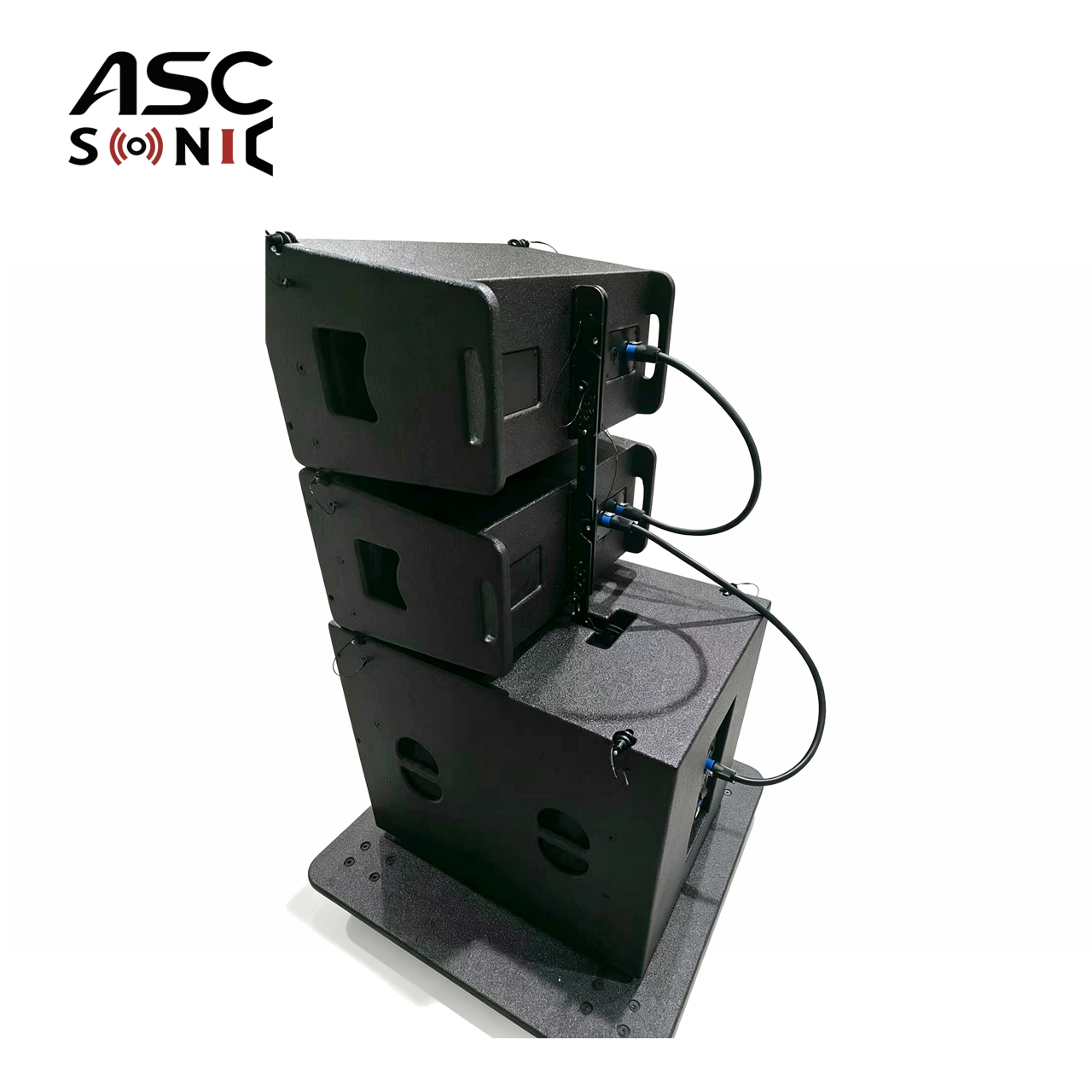

The ASCSONIC VX Series is a professional line array speaker system designed for concerts, live events, touring sound, DJs, clubs, and outdoor performances. The system combines the VX10 passive single 10-inch line array with the VX18 passive single 18-inch subwoofer to deliver powerful, balanced, and long-range sound coverage.
The VX10 features a 10-inch low-frequency driver and dual 1.75-inch high-frequency drivers, offering a frequency range of 60–16,000 Hz, 80° × 10° coverage, and up to 133 dB SPL. Its bi-amped design provides 500W/1000W LF and 200W/400W HF power capacity, making it suitable for professional FOH and line array applications.
The VX18 is equipped with an 18-inch woofer, delivering 32–160 Hz low-frequency response, 2400W/4800W program/peak power, and up to 132 dB SPL.

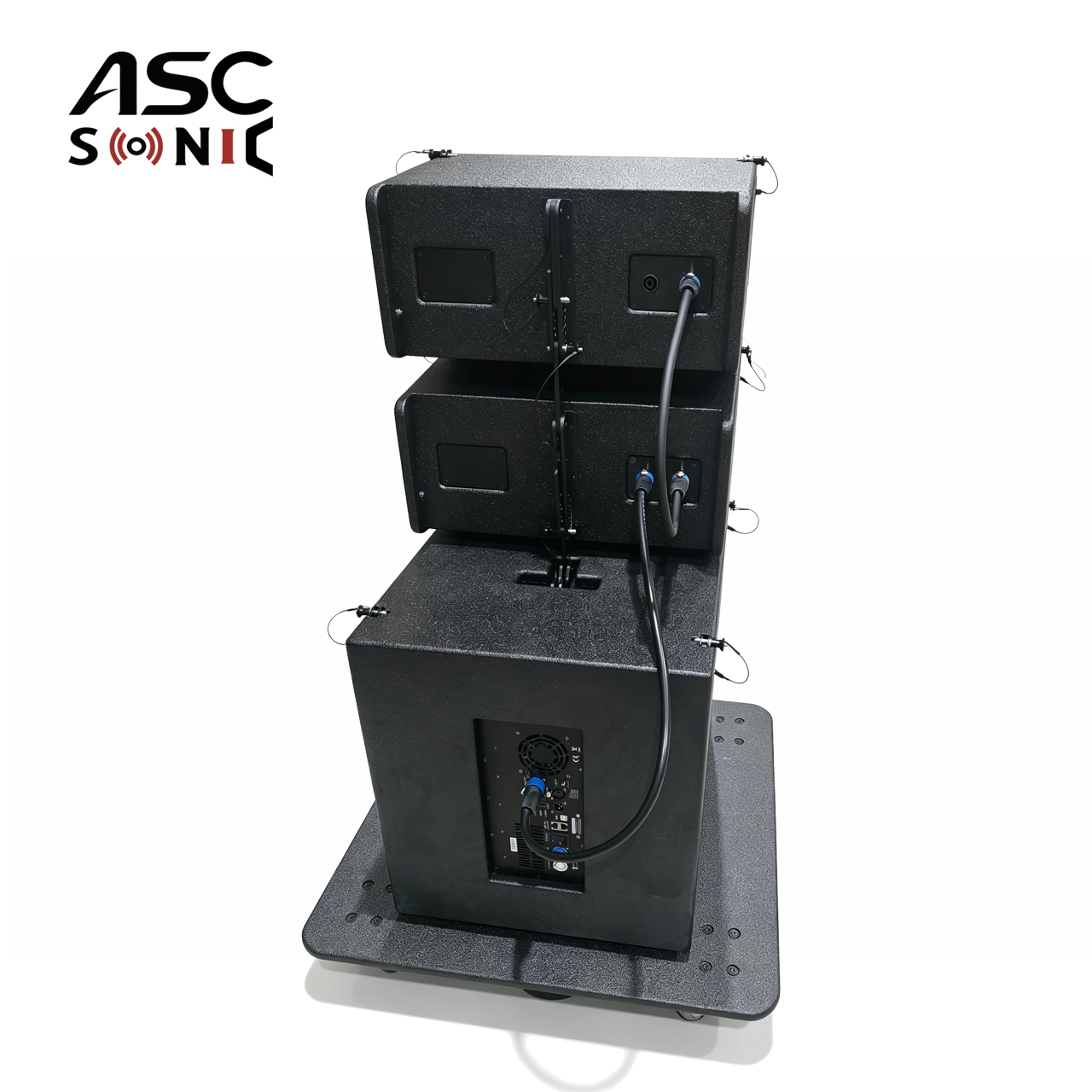

For a complete active solution, one Active VX18P can power two VX10 units, providing an efficient and compact professional sound reinforcement system.
Specifications:
Model | VX10 | VX18 |
Product Type | Passive Single 10" Line Array | Passive Single 18" Subwoofer |
Drivers | 1 × 10" LF / 2 × 1.75" HF | 1 × 18" |
Frequency Range | 60 – 16,000 Hz | 32 – 160 Hz |
Power Capacity (Program / Peak) | LF: 500 / 1,000 WHF: 200 / 400 W | 2,400 / 4,800 W |
Impedance | LF: 16 Ω (Bi-Amp)HF: 16 Ω (Bi-Amp) | 8 Ω |
Coverage | 80° × 10° | Omni |
Sensitivity (1W / 1m) | — | 96 dB |
Maximum SPL (1m / Peak) | 133 dB | 132 dB |
Connection | — | NL4 1± Rear |
Cabinet Material | Russian Birch PlywoodPolyurea Paint | Russian Birch PlywoodPolyurea Paint |
Dimensions (H × W × D) | 275 × 500 × 355 mm | 606 × 500 × 800 mm |
Net Weight | 16 kg | 48 kg |
