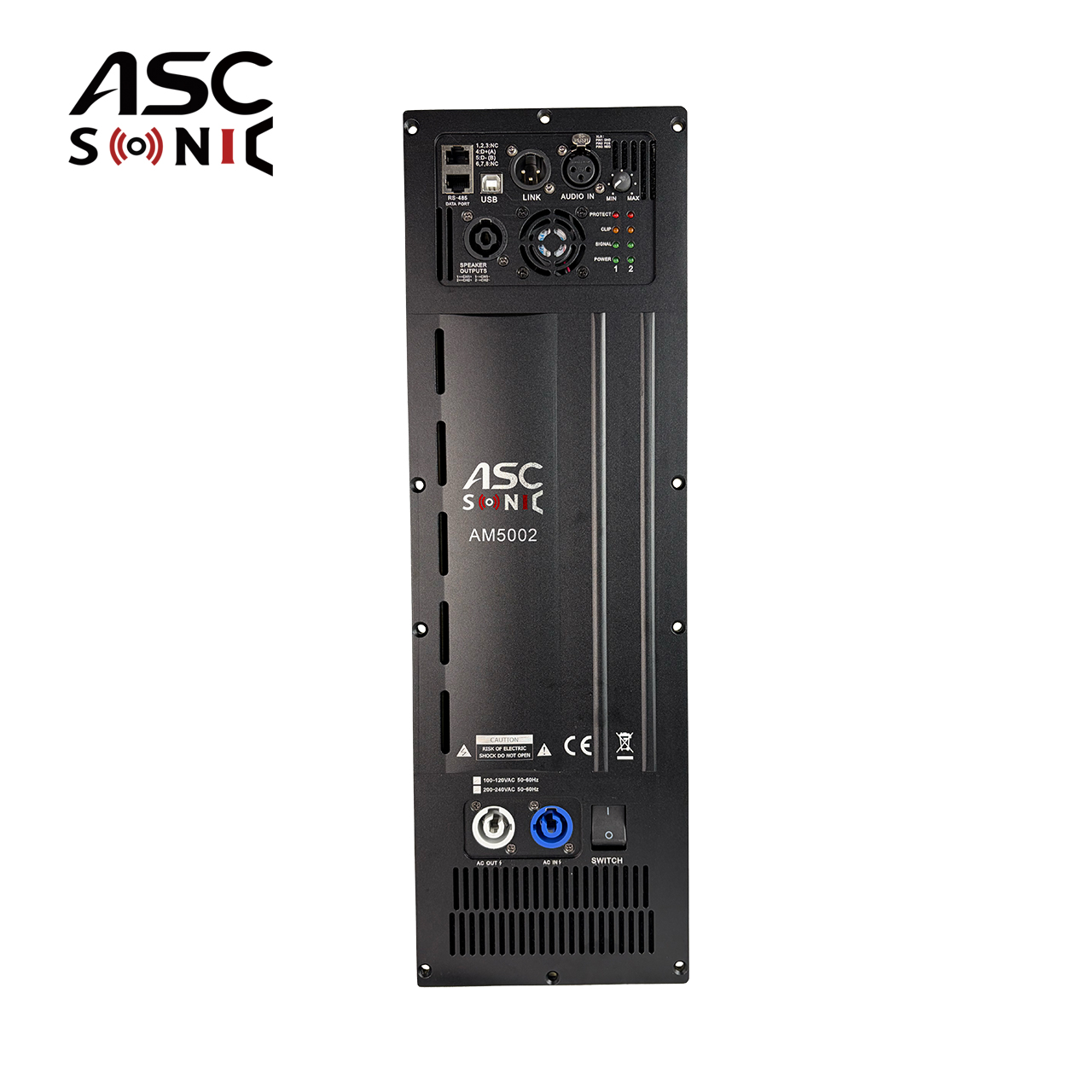

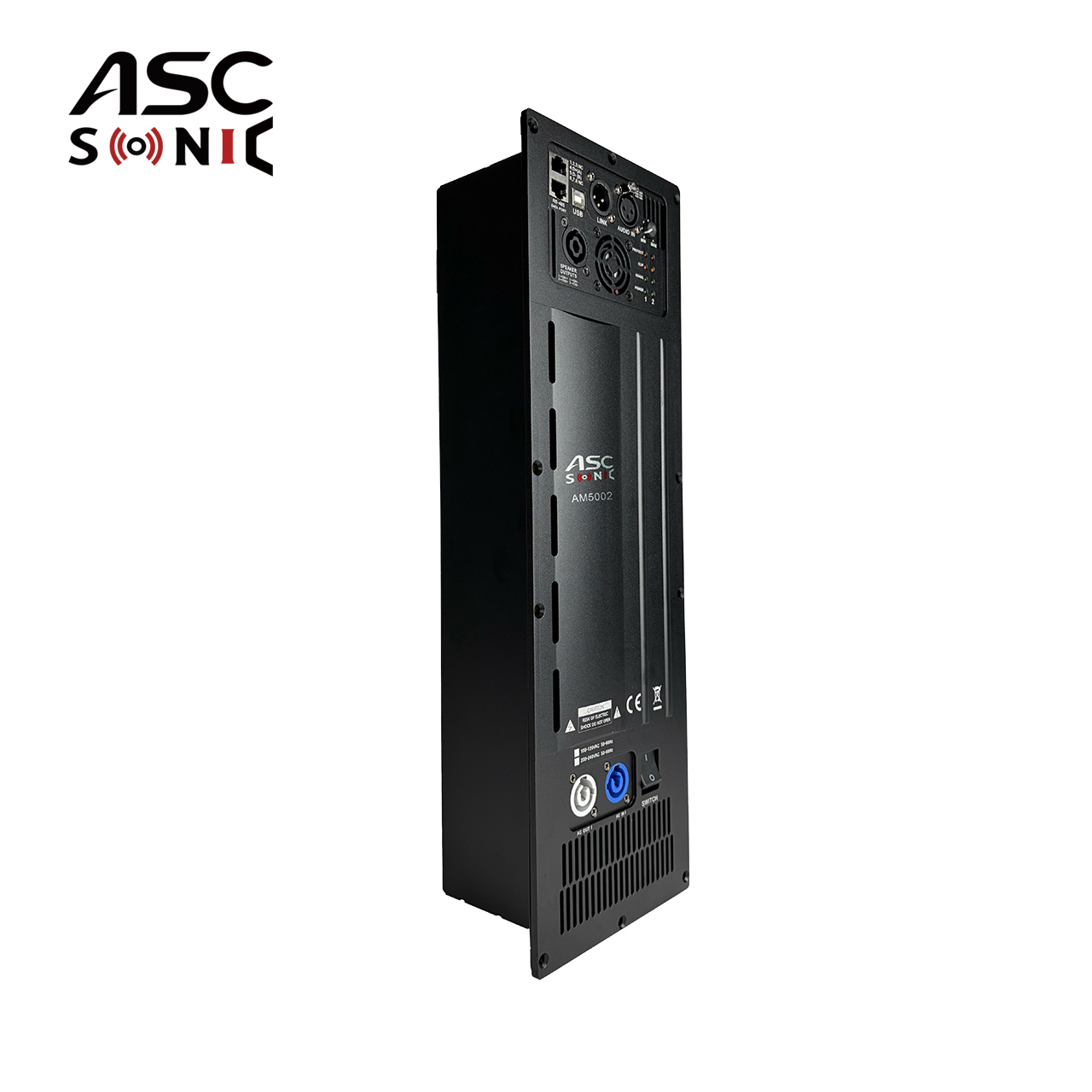

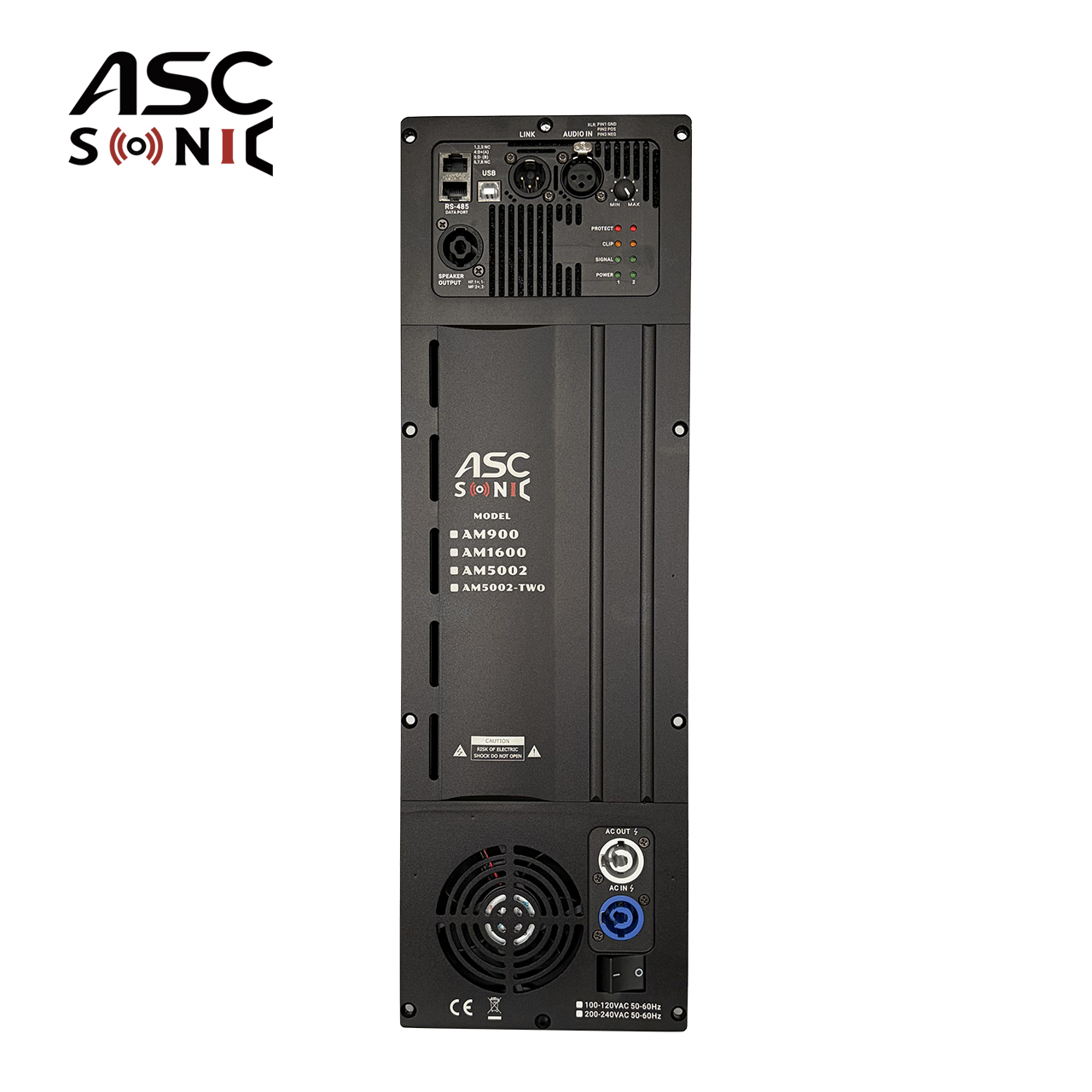

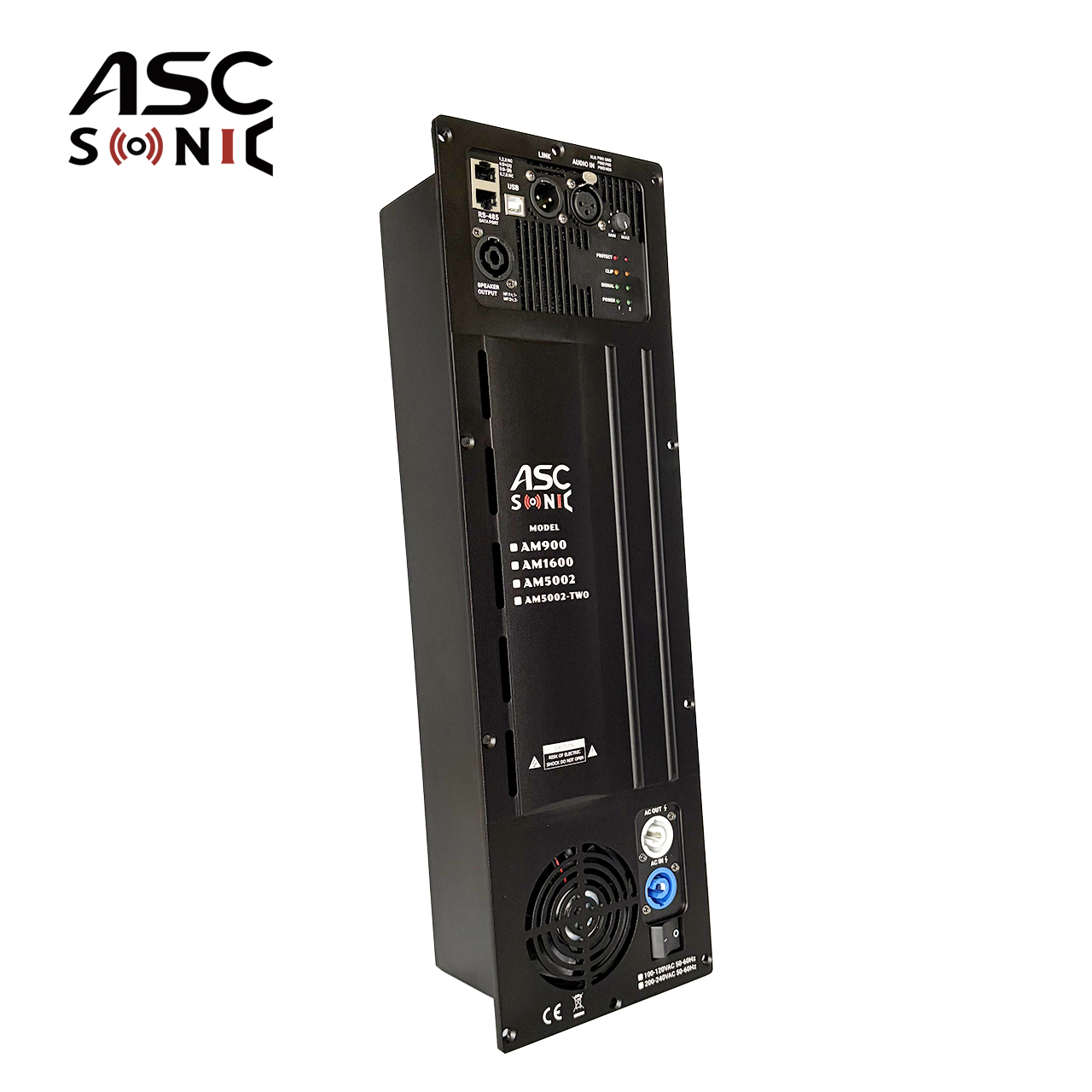

AM5002 Dual Channel Class D DSP Plate Amplifier 900W for Active Speaker Integration

Product Overview

The AM5002 Plate Amplifier Module is a high-output Class D DSP solution designed for active speaker systems. Each channel delivers up to 900 W at 4 Ω, enabling impressive performance in compact cabinets or line-array systems. The integrated DSP supports EQ, crossover, limiter, delay and polarity adjustment. With a slim footprint and net weight around 3.6 kg, it suits tight installations. AC input (90–135 V / 180–265 V) and full protection (short, DC, over-voltage, over-temperature) make it reliable for touring and fixed applications alike.

Key Features & Advantages

1. 900W Per Channel High Output
   Each of the two channels produces up to 900 W into 4 Ω, making this module ideal for powering mid/high sections or full-range cabinets in active speaker designs. As a dual-channel DSP plate amplifier module, it gives manufacturers a streamlined path to high-power integration.

2. Integrated DSP Control & Connectivity
   The module incorporates comprehensive DSP features: gain, mute, polarity, delay, limiter, parametric EQ and crossover. Remote PC control via USB or RS-485 enables precision tuning—perfect for system integrators who require fine adjustment in active speaker amplification.

3. Efficient Class D Design & Compact Format
   Leveraging Class D amplification, the AM5002S achieves high efficiency and reduced heat, improving reliability under demanding load conditions. Its compact chassis allows it to fit into narrow cabinet spaces without sacrificing power or functionality.

4. Global Voltage Compatibility & Robust Protection
   The amplifier module works across a wide voltage range (90–135 V or 180–265 V) supporting global deployment. Built-in protection features include short-circuit, over-current, DC offset, under-voltage, and     over-temperature safeguards, delivering long-term durability in professional installations.

Application Scenarios

• Active Loudspeaker Cabinets: Ideal for OEM active speaker designs where two channels of high output are required—such as full-range plus subwoofer or dual-mid driver configurations.

• Line Array or Column Speaker Systems: Suitable for use in line array modules where compact size, high power and DSP flexibility are key.

• Portable PA & Touring Systems: With its lightweight structure and high output, it fits well in mobile PA      setups, rental speakers, stage monitors and event gear.

• Fixed Installations: Great for integration in installations like theatres, houses of worship, clubs, or      conference venues where stable, high-power amplification and remote DSP control are valued.

Specification:
