Product Overview

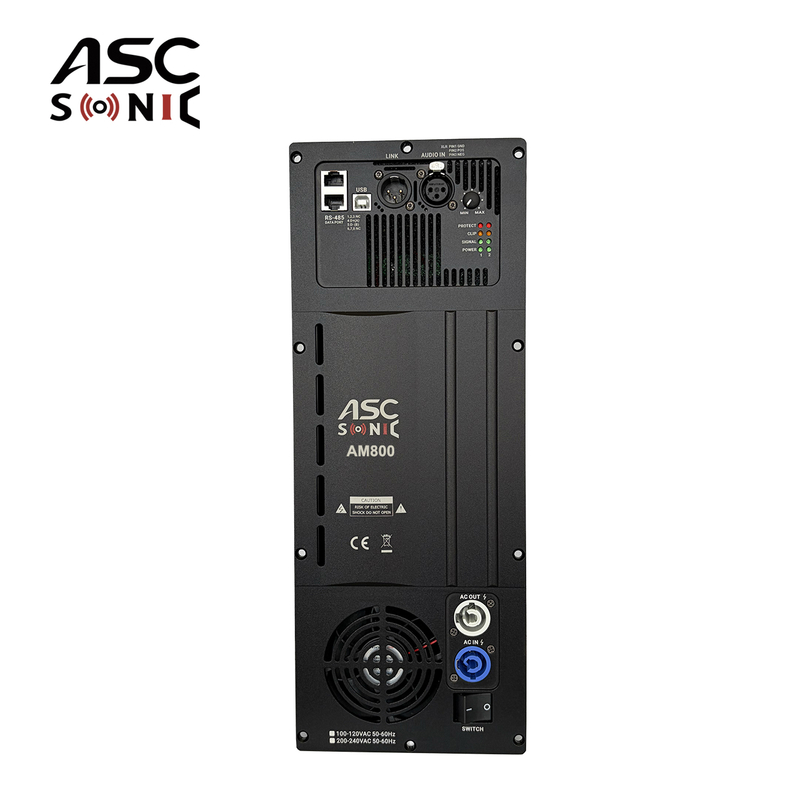

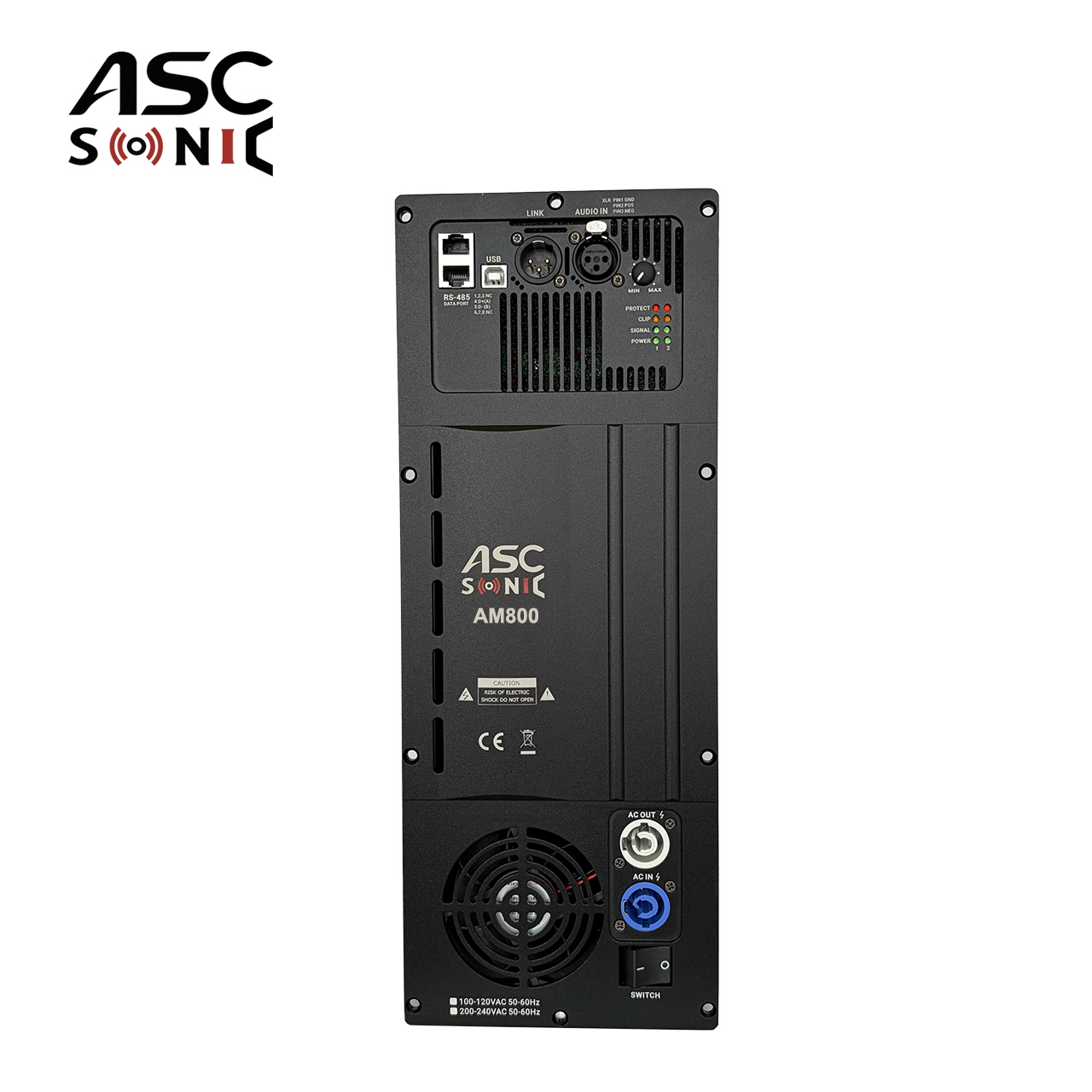

The AM800 Plate Amplifier Module is a compact and powerful Class-D digital amplifier designed for professional active speakers and subwoofers. Delivering 800 W RMS at 8 Ω with ultra-low distortion and a high signal-to-noise ratio, it provides clean, dynamic sound reproduction. The integrated DSP allows precise tuning with EQ, crossover, delay, and limiter functions, while advanced protection circuits ensure long-term reliability. Lightweight and efficient, the AM800 plate amplifier is ideal for PA systems, stage monitors, and custom OEM speaker designs where consistent power and clarity are essential.
Key Features & Technical Advantages
1. High-Power Output with Energy Efficiency
With 800 W RMS into 8 Ω and 850 W into 4 Ω, the AM800 delivers exceptional headroom and clarity. Its Class-D topology achieves over 90% power efficiency, reducing heat buildup and energy loss — ideal for powered PA speakers and active subwoofers that demand continuous high output.
2. Advanced DSP & Remote Configuration
The onboard DSP offers complete control of EQ, crossover, delay, limiter, and dynamic range, enabling users to fine-tune performance. Dual RS-485 ports allow real-time adjustment via PC, making it a smart digital speaker amplifier module for professional setups.
3. Reliable Protection & Audio Precision
Designed for endurance, the AM800 includes multi-level protection against short circuit, DC offset, over-voltage, over-temperature, and overload. It ensures stable and distortion-free sound across all operating conditions.
4. Global Compatibility & Compact Design
Supporting 90–135 V / 180–265 V AC inputs, this Class-D audio plate amplifier works worldwide. Its compact structure integrates easily into any active cabinet or OEM design without increasing weight or size.
5. Scalable & OEM-Friendly Platform
The AM800 shares architecture with other AM-Series modules, allowing brands to create multi-channel or stereo versions using the same DSP and amplifier base. This ensures uniform sound quality and easier manufacturing for OEM speaker builders.
Application Scenarios
• Professional Active Speakers
Perfect for active full-range or subwoofer speakers, the AM800 plate amplifier provides the punch, clarity, and reliability needed in touring and stage environments.
• Portable PA & Event Systems
Lightweight yet powerful, it’s ideal for portable PA setups, live sound reinforcement, and rental equipment — combining portability with strong output for DJs and event contractors.
• Fixed Sound Installations
Integrate the AM800 in permanent sound systems such as clubs, auditoriums, houses of worship, and conference venues. The DSP control ensures consistent, optimized sound across all zones.
• Custom OEM Projects
A plug-and-play amplifier + DSP core, the AM800 saves development time for audio manufacturers, offering professional performance in a ready-to-use module.
Specification
Model | AM800 |
Frequency Response | 20Hz-20KHz ±1dB |
THD+N 1 KHz 1W 8Ω | <0.1 % |
Signal to Noise Ratio 1KHz | >100dB |
Class | D |
Protection | Short Circuit, DCP, OVP, UVP, OCP, OTP |
Operating Voltage | 90V-135V / 180V- 265V |
Input Sensitivity | 1V |
Input Impedance | 20KΩ |
DSP Function | MUTE, Polarity, Gain, Delay, Limiter, Mixer, EQ, XOver |
DSP Control | USB and RS-485 |
Dimensions(W×H×D) | 332×142×70mm |
Packing Dimension | 370×160×100mm |
Net Weight(kg) | 1.7 |
Gross Weight( kg) | 2.7 |
