Introduction: The Common Misunderstanding
When it comes to high power amplifiers, one of the most frequently asked questions is:
Do high power amplifiers require thick power cables?
Many users assume that higher output power automatically means higher continuous current draw.
As a result, they believe that only very thick power cables are safe.
However, this assumption does not reflect how professional audio amplifiers actually work.
In this article, we explain amplifier power consumption,
and why power cable requirements are often misunderstood,
based on real-world testing with the D18K4 amplifier.
Continuous Load vs Dynamic Load
To understand amplifier power cable requirements,
we must first distinguish between two types of signals:

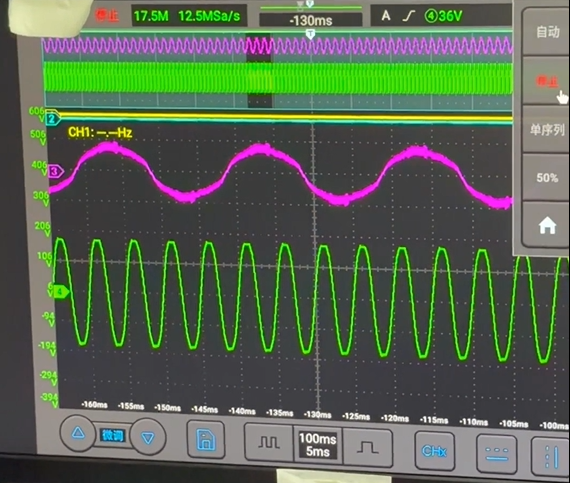

1. Continuous Signal (maximum load Scenario)
A continuous signal, such as a sine wave, creates a constant electrical load.
In this condition:
The amplifier draws steady current over time
The system operates under maximum stress
Heat generation is continuous
This is often used in testing, but it does not represent real-world usage.

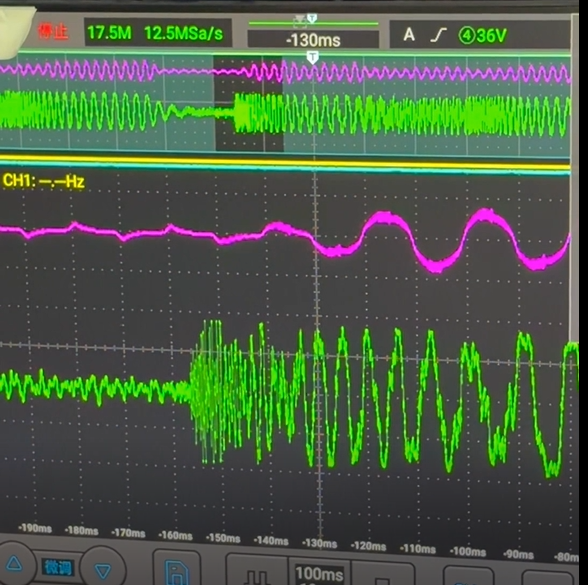

2. Music Signal (Real-World Operation)
In real applications, amplifiers process dynamic audio signals.
This means:
Signal levels are constantly changing
Peak output occurs only in short bursts
Average current draw is significantly lower
This behavior is critical to understanding
why high-power amplifiers do not require constant high current input.
Measured Behavior of Amplifier Power Consumption
During testing, we compared both signal types.
The results clearly show:
Under continuous signal → stable, constant load
Under music signal → fluctuating, dynamic load
High current appears only during short peaks
This demonstrates that amplifier current draw is not constant,
and depends heavily on the nature of the audio signal.

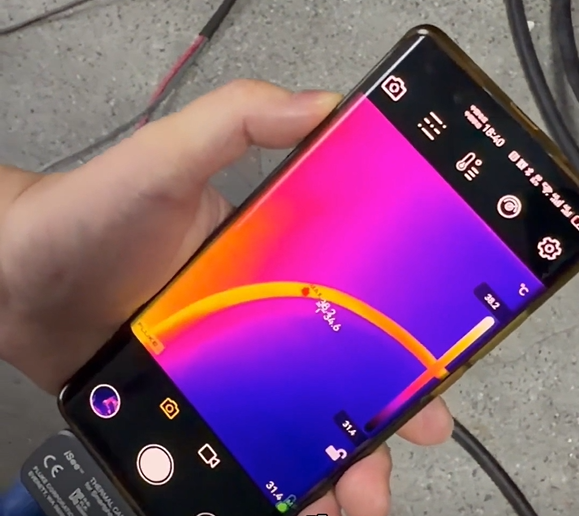

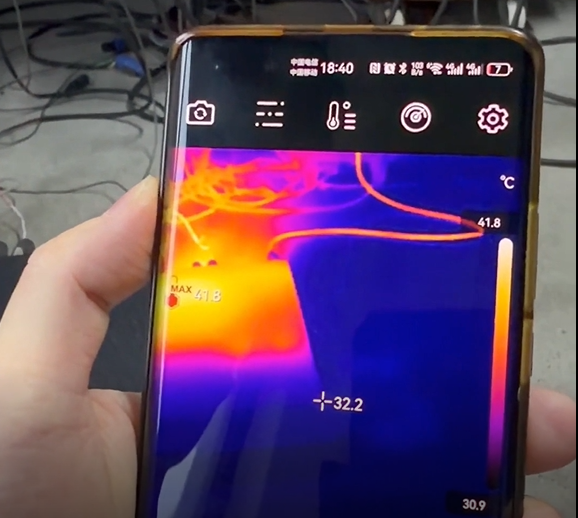

Thermal Performance and Cable Safety
Another important factor in power cable selection is temperature.
Under extended real-world conditions:
The amplifier remains within safe operating temperature
The power cable does not experience excessive heat buildup
This confirms that a properly selected cable
can safely handle the dynamic current demands of the system.
Why Thick Power Cables Are Not Always Required
Now we can answer the key question:
Do high power amplifiers need thick power cables?
Not necessarily.
Because:
Amplifiers do not draw maximum power continuously
Audio signals are dynamic, not constant
Average current is much lower than peak output suggests
Modern designs (such as Class D amplifiers) improve efficiency
As a result, power cable requirements depend on real operating conditions,
not just peak power ratings.
Key Takeaways for System Design
When selecting a power cable for a pro audio amplifier, consider:
Real signal type (music vs test tone)
Average vs peak current
Thermal performance over time
System efficiency
Understanding these factors helps avoid
overestimating cable requirements or making incorrect assumptions.
FAQ
Do high power amplifiers always draw maximum current?
No. Amplifiers only draw high current during short peak moments. Most of the time, the current is much lower.
Why does a sine wave test show higher power consumption?
Because it creates a constant load, which is more demanding than real audio signals.
Is it safe to use a standard power cable with a high power amplifier?
Yes, as long as the cable is properly rated and matched to real operating conditions.
What affects amplifier power consumption the most?
The type of audio signal, system efficiency, and usage conditions all play a major role.
