Live sound engineering requires a careful balance between acoustic excellence and physical realities. Transitioning to or upgrading a line array system requires balancing audio fidelity with logistical reality. While the integration of modern audio technology pushes toward all-in-one solutions, industrial-scale touring and complex installations often demand the physical separation of power and processing. Choosing the wrong configuration can severely limit your technical flexibility or create unsafe rigging conditions.
We designed this guide to help you move beyond basic audio definitions. Our goal is to evaluate the structural, financial, and operational trade-offs between active and passive setups so you can make a reliable infrastructure investment. You will learn how to navigate rigging limits, manage environmental risks, and scale your inventory efficiently for any venue size.
Architecture: Active line arrays house amplifiers and DSP directly inside the speaker cabinet; passive systems rely on external ground-based amp racks and processors.
Deployment Speed vs. Complexity: Active systems eliminate amp racks but require heavy power and signal cables flown to every box. Passive systems require only multi-core speaker cables (e.g., Socapex) sent into the air.
Risk Management: Passive systems offer superior fault tolerance for live events, as ground-based amplifiers can be hot-swapped mid-show. A blown amplifier in a flown active array cannot be serviced during an event.
Weight and Rigging: Active arrays are significantly heavier due to internal electronics, which can breach the safe working load (SWL) of smaller venue roofs.
Understanding the basic anatomy of your audio equipment drives smarter procurement decisions. The physical location of the power amplification fundamentally changes how crews interact with the rig.

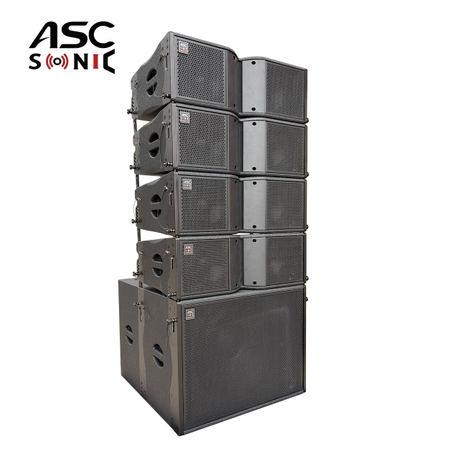

An Active Line Array represents a fully integrated audio ecosystem. Each speaker cabinet contains its own customized power amplifier and digital signal processor (DSP). Manufacturers precisely match these internal components to the specific acoustic drivers housed inside the wooden or composite enclosure.
This closed-loop design delivers genuine plug-and-play capability. The built-in presets come heavily tuned from the factory. Engineers simply supply an audio signal and mains power. The internal DSP handles crossover networks, limiting, and time alignment automatically. This architecture significantly reduces the learning curve for novice system technicians.
A Passive Line Array utilizes a separated component philosophy. The flown speaker cabinet acts merely as a transducer. It contains voice coils, cones, and sometimes a basic passive crossover network. Power amplification and complex digital processing remain entirely separate, housed in heavy-duty flight cases on the ground.
This approach offers granular control over the signal path. Expert system engineers can select specific high-end amplifiers and external DSP units to drive the array. It requires higher technical proficiency to align and tune the system from scratch. However, it delivers ultimate flexibility when matching components for specialized venue acoustics.
System Feature | Active Architecture | Passive Architecture |
|---|---|---|
Amplifier Location | Inside the speaker cabinet | External ground racks |
DSP Management | Pre-tuned internal modules | External system processors |
Component Matching | Factory locked | Highly customizable |
Setup Simplicity | High (Plug-and-play) | Low (Requires manual routing) |
Live events live and die by the load-in schedule. The structural demands of hanging heavy audio equipment dictate which system you can safely deploy. Rigging limitations often force an engineer's hand before they even consider sound quality.
Suspending a Line Array Speaker system demands rigorous safety calculations. Active cabinets carry a substantial weight penalty per box. Heavy copper transformers, heat sinks, and amplifier modules live directly inside the enclosure. Adding 15 to 25 pounds per cabinet drastically changes your rigging math.
Consider a standard 12-box array. The internal amplification can add over 250 pounds of dead weight to a single hang. This cumulative mass dictates whether a crew can safely fly the system. Older theaters and historic venues often enforce strict roof load limits. Breaching the safe working load (SWL) of structural beams poses catastrophic safety risks.
Cabling infrastructure changes dramatically depending on your chosen architecture. Both systems require complex wire management, but the location of the copper wiring shifts.
Active Constraints: Crews must send heavy-gauge AC power cables directly to the ceiling grid. They use thick SO cord to handle the high voltage required. They also must run separate networking and audio signal cables to every single box. Daisy-chaining power safely at extreme heights requires meticulous electrical load calculation to prevent tripped breakers.
Passive Efficiency: This design keeps all high-voltage power distribution strictly on the ground near the amp racks. Crews only need to pull multi-core audio cables into the air. Industry-standard cables like Socapex bundle multiple speaker lines into one durable jacket. This vastly reduces airborne infrastructure and keeps electrical hazards away from the rigging points.
Novice production companies often ignore cable weight during SWL calculations. Fifty feet of heavy-gauge power cable hanging from an active array adds significant downward force. Always include the wiring harness mass when submitting load calculations to venue structural engineers.
Equipment fails. High-stakes touring environments demand contingency plans for when gear inevitably breaks during a show. Your system architecture determines your ability to recover from sudden hardware failures.
Touring engineers prioritize fault tolerance above almost all other metrics. Imagine an amplifier channel dying during the headline act of a major festival. The recovery protocol differs wildly between system types.
If a ground-based amp driving a passive array fails, technicians act instantly. They physically patch a spare rack channel into the array within seconds. The audience barely notices the drop in sound pressure. Ground access ensures continuous operation.
If an internal amp module fails inside an active array, you face a critical emergency. That specific speaker box goes dead for the remainder of the performance. You cannot safely lower a massive array over a live audience to swap an amplifier. The dead box immediately compromises the acoustic coupling of the entire array. It creates unpredictable frequency notches and ruins the calculated coverage pattern.
Outdoor festivals expose delicate electronics to brutal environmental extremes. Flying sensitive microprocessors and amplifiers forty feet in the air creates significant vulnerabilities.
Active boxes face severe heat management issues. Direct afternoon sunlight bakes the black speaker cabinets. The internal amplifiers generate their own massive heat loads simultaneously. Thermal shutdown protocols often trigger, silencing the array right in the middle of a hot summer set. Sudden downpours also threaten the exposed power connections on the rear panels.
Passive boxes contain only paper cones, magnets, and minimal crossover components. They are inherently more resilient to harsh weather. Rain and extreme heat rarely destroy a basic transducer. The sensitive, expensive amplifiers stay safely inside waterproof tents or climate-controlled machine rooms on the ground.
Modern audio processing defines the clarity and impact of a live performance. Digital signal processing handles phase alignment, frequency shading, and protective limiting. How you deploy this processing impacts your ability to scale operations.
Modern active arrays utilize deeply integrated DSP. Manufacturers spend thousands of hours measuring the exact physical properties of their drivers. They program complex algorithms directly into the onboard amplifier modules. This integration ensures precise high-frequency dispersion control.
It also provides robust thermal protection. The internal computer constantly monitors the voice coil temperature. It applies intelligent limiting before the driver physically melts. Technicians gain instant EQ alignment across the entire length of the array because the software knows exactly which box sits at which angle.
Passive ecosystems excel at massive scalability. Rental houses build standardized touring racks. A single, unified rack might contain four high-powered amplifiers and a master system processor. Engineers use this identical rack to drive main hangs, subwoofers, or front fills. They simply recall different software presets to change the amplifier's behavior.
Scaling a passive inventory proves highly cost-effective for large production companies. You can centrally pool your amplifying power. If a specific gig requires massive subwoofer support but fewer main hangs, you instantly reassign the ground amps to push the low end. Active inventory forces you to keep power permanently locked inside specific speaker models.
Choosing your ideal system requires analyzing your specific business model. You must weigh daily logistical realities against long-term maintenance infrastructure. Use the following framework to guide your next major equipment purchase.
Corporate AV and Hotel Ballrooms: High-end corporate events prioritize clean aesthetics. Active systems eliminate unsightly amplifier racks from the room. They pack tightly into small box trucks.
Regional Rental Companies: Fast-paced event companies handle multiple small gigs daily. Plug-and-play active setups reduce setup time and minimize crew training requirements.
Venues Lacking Machine Rooms: Nightclubs or small theaters often lack dedicated, climate-controlled equipment rooms. Flying the amplifiers inside the boxes frees up valuable real estate on the floor.
Stadium Tours and Arenas: Massive productions demand absolute reliability. Ground-based amplifiers provide the critical redundancy needed to ensure zero downtime during a multi-million dollar tour.
Outdoor Music Festivals: High weather exposure dictates rugged hardware. Passive boxes survive torrential rain and blistering heat much better than flown electronics.
Older Theaters with Strict Rigging Limits: Historic venues feature delicate roof structures. Removing the amplifier weight from the air ensures you can fly a longer array without breaching the SWL.
Always audit your existing transportation and storage infrastructure first. Evaluate your crew's technical expertise. If you employ seasoned system engineers, they will fully leverage external processing. If you rely on rotating freelance stagehands, the simplicity of integrated amplification often prevents disastrous user errors.
The choice between an active and passive architecture is rarely about absolute sound quality. Top-tier manufacturers produce exceptional loudspeakers in both formats. Your final decision must hinge on logistical realities, risk management, and scalable infrastructure.
Active arrays deliver unparalleled setup speed and foolproof factory tuning. They excel in fast-paced corporate environments where truck space commands a premium. Conversely, passive setups dominate the touring world. They offer superior fault tolerance, scalable power distribution, and weather resilience.
Evaluate your specific use case rigorously. Calculate your strict rigging load limits. Assess the technical proficiency of your daily crew. Map out your long-term maintenance capabilities. Once you clearly define these operational boundaries, you can confidently request manufacturer demonstrations and invest in the right audio architecture.
A: Not inherently. Active systems guarantee manufacturer-optimized DSP tuning, reducing user error. However, a properly aligned passive system driven by high-end external DSP will deliver equal or superior acoustic performance. Sound quality depends far more on component quality and proper deployment than the location of the amplifier.
A: While physically possible if rigging hardware matches, it is highly discouraged. Differences in phase response, latency from distinct DSPs, and power scaling will destroy the coherent wavefront required for a line array to function properly. Always deploy uniform components within a single array.
A: Latency is dictated by the DSP architecture, not whether the system is active or passive. However, active systems with built-in networking (like Dante) require careful clock management to ensure perfectly synchronous delivery to each box. External system processors generally offer centralized, easily managed latency control.
