System integrators, touring companies, and venue managers face a tough balancing act today. You must juggle sonic purity, thermal management, and logistical constraints when selecting an amplifier topology. Legacy Class AB units simply weigh too much and run too hot for modern large-scale deployments. The industry has firmly shifted toward high-efficiency designs to solve these practical challenges. Now, the main decision for enterprise-grade audio arrays comes down to choosing between a Class D Power Amplifier and a Class TD Power Amplifier.
Both models offer distinct operational advantages. Touring operations demand lightweight solutions to lower freight costs. Conversely, permanent stadium installations prioritize sustained headroom and linear output over sheer portability. This guide provides an objective, evidence-based framework to help you evaluate these options. We will explore infrastructure constraints, thermal behaviors, and expected acoustic outcomes. You will learn how to align your specific commercial audio requirements with the right amplifier class to ensure a successful, reliable deployment.
Efficiency vs. Purity: Both topologies offer over 80% efficiency, but they achieve it differently. Class D relies on pulse-width modulation (PWM) for ultra-low weight, while Class TD utilizes a tracking power supply paired with a linear output stage to preserve sonic detail.
Logistical ROI: Class D amplifiers drastically reduce touring freight weights and rack space requirements.
Performance Stability: Class TD amplifiers generally provide superior sustained power delivery for low-frequency applications (subwoofers) without the voltage rail sag sometimes observed in entry-level Class D designs.
Decision Driver: The choice depends strictly on the deployment environment—touring logistics heavily favor Class D, while uncompromising stadium installations or critical listening spaces often lean toward Class TD.
Defining success for an enterprise audio deployment goes beyond simple volume. A truly successful installation demands continuous uptime, predictable thermal output, and absolute acoustic transparency. You need a reliable Power Amplifier infrastructure to drive massive arrays without faltering mid-show. System engineers must carefully map out these criteria before procuring equipment. Overlooking any single factor often leads to expensive system redesigns later.
The pro audio industry currently faces a severe weight-to-power ratio crisis. Freight costs have skyrocketed, making heavy equipment a major financial burden for touring acts. Rigging limits inside older arenas restrict how much weight you can hang from the ceiling. Rack density also plays a crucial role. Venue managers want more power packed into smaller closets. They demand high-power, low-weight solutions to maximize usable floor space. Heavy iron-core transformers and massive aluminum heat sinks no longer fit this modern operational model.
Infrastructure constraints further complicate your deployment strategy. Dozens of high-wattage amplifiers put immense strain on a venue's electrical grid. AC mains current draw must remain stable to prevent tripped breakers during heavy bass drops. Furthermore, amplifiers generate waste heat. High thermal output significantly increases the HVAC load inside equipment rooms. Venue cooling systems often struggle to keep up. Managing these power and cooling limitations requires highly efficient amplifier topologies.
Class D architecture relies on a technology called pulse-width modulation (PWM). The amplifier operates its output transistors strictly as switches. They turn fully on or fully off. This binary operation eliminates the intermediate voltage states where traditional amplifiers waste massive amounts of energy as heat. The audio signal is converted into a high-frequency stream of pulses, amplified, and then smoothed back into an analog waveform before reaching the speakers.
Extreme Efficiency: The switching nature of PWM means very little power is lost. They routinely exceed 90% efficiency. This minimizes your AC power consumption and lowers venue electricity loads.
Ultra-Lightweight Form Factor: Because they generate less heat, they require much smaller heat sinks. When paired with switch-mode power supplies (SMPS), this eliminates heavy copper transformers. You drastically reduce your overall rack weight.

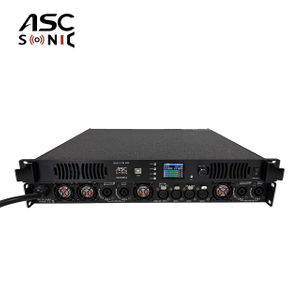

High Channel Density: Smaller internal components allow manufacturers to pack more channels into a single chassis. You can easily find 4-channel or 8-channel units fitting neatly into a compact 1U or 2U rack space.
Despite their efficiency, pure Class D designs present specific engineering challenges. High-frequency switching inherently creates electrical noise. Engineers must implement rigorous, high-quality output filtering to prevent this noise from degrading the audio signal or causing radio frequency interference. Poorly designed filters can lead to phase shifts at higher audible frequencies.
Furthermore, you must watch out for thermal limiting during extreme use cases. Severe, continuous low-frequency loads—like those produced by modern electronic dance music—can strain the switching components. If the unit lacks robust thermal headroom, it may automatically reduce its output to protect itself. This results in a noticeable drop in subwoofer impact during a performance.
The Class TD topology offers a sophisticated hybrid approach. "TD" stands for Tracking Class D. It utilizes a highly efficient switch-mode power supply that acts dynamically. This power supply continuously tracks the incoming audio signal. It then delivers just enough voltage to a traditional, linear Class AB output stage. By keeping the voltage rail only slightly above the required signal level, it prevents the massive heat waste typically associated with standard linear amplifiers.
Uncompromised Sonic Fidelity: Because the actual audio amplification happens in a Class AB output stage, you retain the warmth, clarity, and pristine transient response of linear designs.
High-Impact Low-Frequency Delivery: They excel at sustaining high power outputs for long durations. This makes them exceptionally well-suited for demanding, large-scale subwoofer arrays that require massive current delivery.
Resilience: Loudspeakers present complex, reactive impedance loads to an amplifier. Class TD designs are often much more forgiving of these fluctuating loads compared to standard switching amplifiers. They maintain stability even when speaker impedance drops dangerously low.
The tracking circuitry requires precision engineering. This higher manufacturing complexity often translates to a higher initial capital expenditure. Your upfront procurement budget will likely be larger compared to standard PWM models. Additionally, because they still utilize a linear output stage, they are slightly heavier and generate marginally more heat than their pure Class D counterparts. You must account for this when calculating rack weights and airflow requirements.
Choosing the right topology requires a direct comparison across several operational categories. Below is a structured breakdown comparing both options to help guide your system design.
Evaluation Category | Class D | Class TD | The Verdict |
|---|---|---|---|
Acoustic Performance | Clean and highly accurate. High-end models use advanced DSP to correct phase shifts. | Exceptional transient response and lower Total Harmonic Distortion (THD) at clipping points. | Class TD holds a slight edge in critical full-range and high-headroom applications. |
Thermal Management & HVAC | Extremely low heat output. Generates very few BTUs per rack. | Highly efficient, but still generates more waste heat than pure switching designs. | Class D minimizes cooling requirements in fixed installations and dense racks. |
Logistics and Freight | Ultra-lightweight. Drastically reduces fly-rack weight and truck pack fuel costs. | Heavier internal components slightly increase physical rack weight. | Class D offers measurable cost savings in transportation for touring acts. |
Reliability & Servicing | Simple topology, but proprietary DSP modules require full board replacements if they fail. | Complex tracking circuitry. Diagnosis in the field proves difficult without specialized tools. | Both require depot-level servicing, but standard PWM boards are slightly easier to swap. |
When analyzing transient response and Total Harmonic Distortion (THD), Class TD preserves a slight, measurable advantage. It delivers pure linear amplification, keeping high frequencies transparent and natural. However, when evaluating the BTUs generated per rack, pure switching designs dominate. They keep equipment rooms significantly cooler. For touring logistics, calculating the return on investment of reduced weight in truck packs strongly favors the lighter option. You save on fuel, crew fatigue, and rigging hardware.
You must evaluate your physical infrastructure before finalizing any equipment lists. Mains power quality is a critical risk factor. Both amplifier types rely heavily on Switch Mode Power Supplies (SMPS). Older venues often suffer from voltage drops or unstable mains power. When voltage sags, an SMPS tries to pull more current to compensate, which can trip breakers. Therefore, utilizing units equipped with Power Factor Correction (PFC) is essential. PFC ensures the unit draws current smoothly and in phase with the mains voltage, stabilizing performance even on poor electrical grids.
Rack density directly impacts system survival. Never over-pack your amp racks. Even though high-density installations run cooler than legacy gear, they still generate heat. You must calculate proper airflow to prevent catastrophic thermal shutdowns. Ensure cold air intakes remain unobstructed. Use blanking panels to prevent hot exhaust air from recirculating to the front of the rack. A localized thermal event during a show can silence an entire speaker zone instantly.
Finally, consider your network audio integration. Modern arrays rely on digital routing protocols like Dante, AES67, or AVB. Ensure your chosen hardware pairs flawlessly with your network switch topology. The physical amplification hardware must not bottleneck your digital routing capabilities. Redundant network ports and integrated DSP management allow system technicians to monitor impedance, temperature, and voltage remotely.
Selecting the right hardware comes down to matching your primary constraints against the strengths of the topology. Use the following logic to shortlist your options.
You are outfitting a touring rig where weight directly impacts operational fuel costs and crew labor.
The project requires massive channel counts for distributed audio, such as complex immersive audio installations or multi-zone corporate venues.
The installation environment has strictly limited AC power availability or weak HVAC cooling capacity.
You are powering a massive, permanent line array or heavy subwoofer clusters in a major stadium or arena.
Sonic purity, natural high-frequency extension, and linear transient response are your absolute highest priorities.
Budget constraints and rack weight limits are secondary to sustained, unwavering low-frequency power delivery.
Before issuing a purchase order, take practical steps to validate your choice. Define the exact speaker impedance loads your arrays will present. Map out the venue's electrical power limits and dedicated breaker capacities. Finally, request demo units from manufacturers. Conduct real-world A/B testing in the actual venue space. This hands-on evaluation will reveal thermal behaviors and acoustic nuances you cannot read on a spec sheet.
Neither topology holds the title of universally "better." The superior choice is simply the one that directly matches the physical, acoustic, and financial constraints of your specific project. By evaluating rigging weight limits, HVAC loads, and sustained headroom needs, you can deploy a reliable, transparent system. Do not force lightweight gear into a permanent heavy-bass environment if it lacks thermal headroom. Likewise, do not burden a fast-paced touring crew with unnecessary rack weight.
Looking forward, advancements in built-in DSP and new semiconductor materials like GaN (Gallium Nitride) are rapidly closing the performance gap. GaN transistors switch much faster and cleaner, pushing standard switching designs closer to linear acoustic perfection. As these technologies mature, efficiency and fidelity will cease to be mutually exclusive.
We strongly encourage you to consult with professional systems engineers before finalizing your design. Request a comprehensive thermal and power load calculation for your upcoming audio integration. Proper planning today guarantees flawless acoustic delivery tomorrow.
A: Historically, early switching amplifiers suffered from phase shifts and high-frequency harshness, earning a "cold" reputation. Today, modern DSP-managed units use advanced output filtering to correct phase response. While critical listeners might notice a slight difference in top-end "air," high-tier PWM designs now deliver pristine, transparent audio that rivals linear topologies in most commercial environments.
A: Yes, mixing them is a common practice. System integrators frequently use linear tracking amplifiers to drive heavy, demanding subwoofer arrays, while deploying lighter switching amplifiers for mid and high-frequency line array elements. You must ensure latency and phase are perfectly aligned across the entire system using dedicated DSP controllers.
A: Lifespan depends more on environmental management than base topology. Dust mitigation, proper airflow, and capacitor quality dictate longevity. Both classes will fail prematurely if racks overheat. However, because pure switching models run slightly cooler, their internal electrolytic capacitors often experience less thermal stress over a five-to-ten-year lifecycle.
A: PFC regulates how the unit draws alternating current from the mains. Instead of pulling sharp spikes of current, PFC forces the power supply to draw current in a smooth sinusoidal wave. This stabilizes the voltage rails inside the amplifier and prevents venue circuit breakers from tripping, ensuring high-output reliability for both topologies.
