Providing massive volume for huge crowds once meant deafening the front row. Traditional speaker stacks pushed extreme sound levels near the stage. They had to do this just to reach the back of the room. This brute-force method creates a disjointed listening experience for audiences. A Line Array Speaker solves this historic acoustic problem. You should not view them merely as a stack of wooden boxes. Engineers design these acoustic systems specifically to control sound dispersion. They expertly mitigate volume drop-off over vast distances.
You will soon discover the distinct acoustic physics governing this coverage. We will explain how specialized waveguides manage different frequencies efficiently. You will also learn how to evaluate these systems against traditional point-source options. Finally, we will outline the crucial criteria for selecting the right sound system for your specific venue or live tour.
Acoustic Physics: Line arrays rely on constructive interference to create a cylindrical sound wave, cutting the standard volume drop-off rate in half compared to traditional point-source speakers.
Coverage Predictability: Engineered waveguides allow precise vertical directivity, keeping sound on the audience and off reflective ceilings.
Strategic Selection: They are not a universal fix; venues with low ceilings or extreme width may still be better served by point-source configurations.
Deployment Options: Choosing between active and passive line array speakers depends on your venue's infrastructure, weight limits, and amplification budget.
Traditional audio systems rely on a standard acoustic model. We call this the point source approach. A point source speaker acts much like a bare lightbulb. It radiates energy outward in all directions simultaneously. This creates a spherical sound wave. While effective for short distances, spherical waves suffer from a severe physical limitation.
Acoustic physics dictates a rule known as the inverse square law. For every doubling of distance from a point source, the sound pressure level (SPL) drops by 6 decibels (dB). If you measure 100 dB at 10 meters, you will only measure 94 dB at 20 meters. At 40 meters, the volume plummets to 88 dB. This rapid decay explains why engineers historically pushed dangerous volumes at the stage. They simply needed to deliver adequate sound to the back balcony.
Line arrays fundamentally alter this mathematical equation. You build an array by vertically aligning multiple speaker drivers. You then couple these cabinets tightly together. This physical arrangement changes how the sound energy propagates through the air. Instead of expanding as a sphere, the acoustic energy pushes forward as a cylindrical wave.

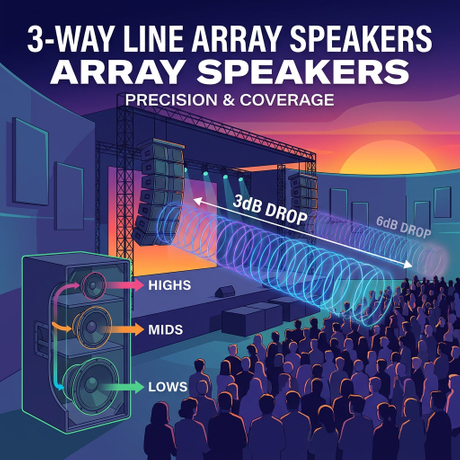

Cylindrical waves restrict vertical expansion. The sound energy primarily expands on the horizontal plane. Because the energy does not scatter upward and downward, it retains power much longer. A pure cylindrical wave only loses 3 dB per doubling of distance in the near field. This 3dB difference acts as the core mechanism for even coverage. It allows engineers to deliver consistent, comfortable volume from the front row to the farthest seats in the arena.
You cannot simply stack random speakers on top of each other. Doing so creates chaotic audio. Different frequencies behave differently in the physical space. Low frequencies possess very long wavelengths. They naturally couple and sum together when you place subwoofers near each other. High frequencies present a much more difficult engineering challenge.
High frequencies beam directly forward. They have very short wavelengths. If multiple high-frequency drivers play near each other, their waves crash together. This acoustic collision causes destructive comb filtering. Some frequencies artificially boost, while others cancel out entirely. The audience hears a thin, distorted, and harsh sound.
Engineers solve this by designing highly specialized waveguides. A waveguide physically reshapes the high-frequency exit path. It turns a naturally spherical high-frequency output into a flat, continuous ribbon of sound. When you stack multiple cabinets, these flat ribbons align perfectly.
This alignment creates constructive interference. Multiple speaker cabinets working in phase reinforce each other beautifully. They push the acoustic energy straight forward. They do not spill energy vertically into the rafters. This focused directivity defines the system's success.
You gain distinct advantages regarding dispersion:
Vertical Focus: The array narrowly focuses sound vertically. This prevents chaotic reflections off hard floors and high ceilings.
Horizontal Spread: The array maintains a wide horizontal dispersion. It typically covers 90 to 120 degrees to reach all seating areas.
Intelligibility: Because you eliminate ceiling reflections, spoken word and complex music remain highly articulate.
Audio professionals understand a crucial reality. No single speaker system solves every venue challenge. You must objectively evaluate your specific room geometry before committing to a design.
Point source configurations still dominate many environments. You should choose point source speakers for small to medium capacity rooms. Bars, small comedy clubs, and intimate live music venues rarely need long-throw capabilities. Furthermore, point source boxes excel in venues boasting low ceilings. A vertical array simply cannot physically fit in these tight spaces. It also cannot achieve the necessary curvature to cover the audience properly. Strict budget constraints also favor point source systems. The complex rigging hardware and advanced processing needed for arrays often exceed small project budgets.
Conversely, you should invest in professional line array speakers for demanding environments. Deep venues require serious long-throw capabilities. Theaters, large indoor arenas, and outdoor music festivals absolutely demand cylindrical wave physics. These environments also require multi-zone coverage.
Engineers achieve multi-zone coverage through physical articulation. They curve the bottom cabinets downward to hit the front rows. They keep the top cabinets perfectly straight to reach the balcony. This flexibility ensures every ticket holder gets the exact same mix. Additionally, arrays provide massive SPL while maintaining strict sightline constraints. A slim vertical hang prevents large speaker stacks from blocking video walls or stage scenery.
| Venue Characteristic | Point Source Application | Line Array Application |
|---|---|---|
| Typical Audience Size | Under 500 people | 500 to 50,000+ people |
| Ceiling Height | Low to medium (Under 15 feet) | High (20+ feet required for rigging) |
| Required Throw Distance | Short throw (Under 40 feet) | Long throw (50 to 300+ feet) |
| Vertical Directivity Control | Fixed (Depends on horn design) | Highly adjustable via box angles |
Once you determine an array fits your venue, you face another major choice. You must select the amplification methodology. Both active and passive systems offer distinct advantages depending on your building infrastructure.
Many large permanent installations rely on passive line array speakers. These systems separate the amplifier from the speaker cabinet.
Passive Advantage - Weight: Passive cabinets weigh significantly less. This reduces the strain on venue roof beams and rigging motors.
Passive Advantage - Centralized Control: You house the amplifier racks in a secure, climate-controlled AV room. Technicians can monitor and service amps easily during a show.
Passive Drawback - Cabling: You must calculate and route extremely heavy-gauge speaker wire from the amp room to the hanging array. Long runs cause power loss.
Passive Drawback - External DSP: You rely entirely on external digital signal processing to manage the crossovers and limiters.

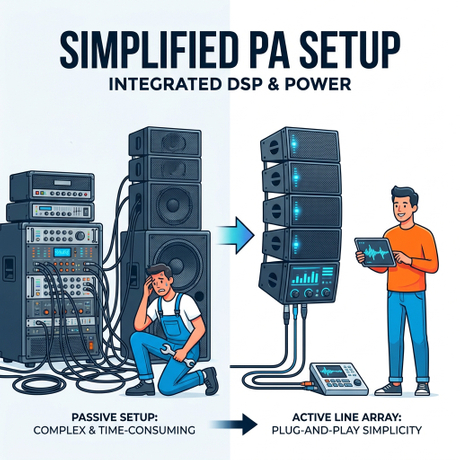

Active line arrays take a different approach. They build the amplifier and processing directly into the speaker cabinet itself.
Active Advantage - Perfect Matching: The manufacturer perfectly matches the internal amplifier to the drivers. This maximizes efficiency and protects components.
Active Advantage - Built-in DSP: Every single box has integrated processing. You can adjust the EQ and delay for individual cabinets in the software.
Active Advantage - Simplified Cabling: You only run lightweight network cables or audio-over-IP connections to the array.
Active Drawback - Heavy Rigging: The built-in amplifiers add significant weight. You also must run high-voltage electrical power all the way up to the grid.
Active Drawback - Maintenance Access: If an amplifier blows mid-show, it sits 40 feet in the air. You cannot easily fix it until the event ends.
The audio industry currently battles a harmful aesthetic trend. We call it the "one-size-fits-all" myth. Many venue owners demand hanging arrays simply because they look professional. They force these systems into inappropriate spaces purely for visual appeal.
You face severe acoustic drawbacks when putting arrays in small rooms. In short-throw environments, the array physically fails to perform. The sound from multiple drivers requires physical distance in the air to sum into a cohesive wavefront. If the audience sits too close, the waves do not merge. The listeners experience a disjointed, harsh, and messy sound. They hear individual boxes instead of one unified system.
You must also consider the extreme complexity of deployment. You cannot just hang these boxes and turn them on. Professional deployment requires rigorous acoustic prediction software. Industry standards like Soundvision or ArrayCalc are mandatory. Engineers must model the exact dimensions of the room. They calculate the precise pin angles required between every single cabinet.
A poorly aimed array performs substantially worse than a basic point-source system. If you angle a cabinet off by just one degree, you might shoot harsh frequencies directly into a concrete balcony face. This causes massive slap-back echo. You must respect the physics. Proper implementation requires certified riggers, structural engineering sign-offs, and expert system tuners.
A line array speaker system provides unmatched acoustic control for deep, large-scale venues. By manipulating the physics of constructive interference, these systems successfully convert chaotic spherical waves into predictable cylindrical energy. This engineering feat cuts volume drop-off in half. It ensures the back rows hear the performance just as clearly as the front rows.
To move forward successfully, take the following strategic actions:
Commission a 3D acoustic software model of your venue before purchasing any equipment.
Measure your venue's ceiling height and structural weight limits strictly.
Consult an experienced AV integrator to determine your amplification infrastructure needs.
Avoid deploying vertical arrays in short-throw rooms or low-ceiling environments.
A: Engineers use a "J-curve" configuration to cover different audience zones effectively. The top cabinets hang perfectly straight to throw sound hundreds of feet to the balcony. The bottom cabinets angle downward sharply. This ensures the immediate front rows receive direct sound without needing entirely separate speaker systems.
A: No. A line array requires a minimum physical length to achieve proper directivity and low-frequency coupling. You typically need at least 4 to 6 boxes per side. Hanging only two boxes acts like a poorly designed point source speaker, defeating the entire engineering purpose of the array.
A: Proper arrays actually help prevent feedback. Because they utilize specialized waveguides, they feature highly controlled directivity. They focus acoustic energy tightly onto the audience seating area. They keep sound off the ceiling, walls, and stage. This keeps stray audio away from open performer microphones.
